Mercury 200XRI User Manual

WIRING DIAGRAMS
Page 2D-2 90-883728 JULY 2001

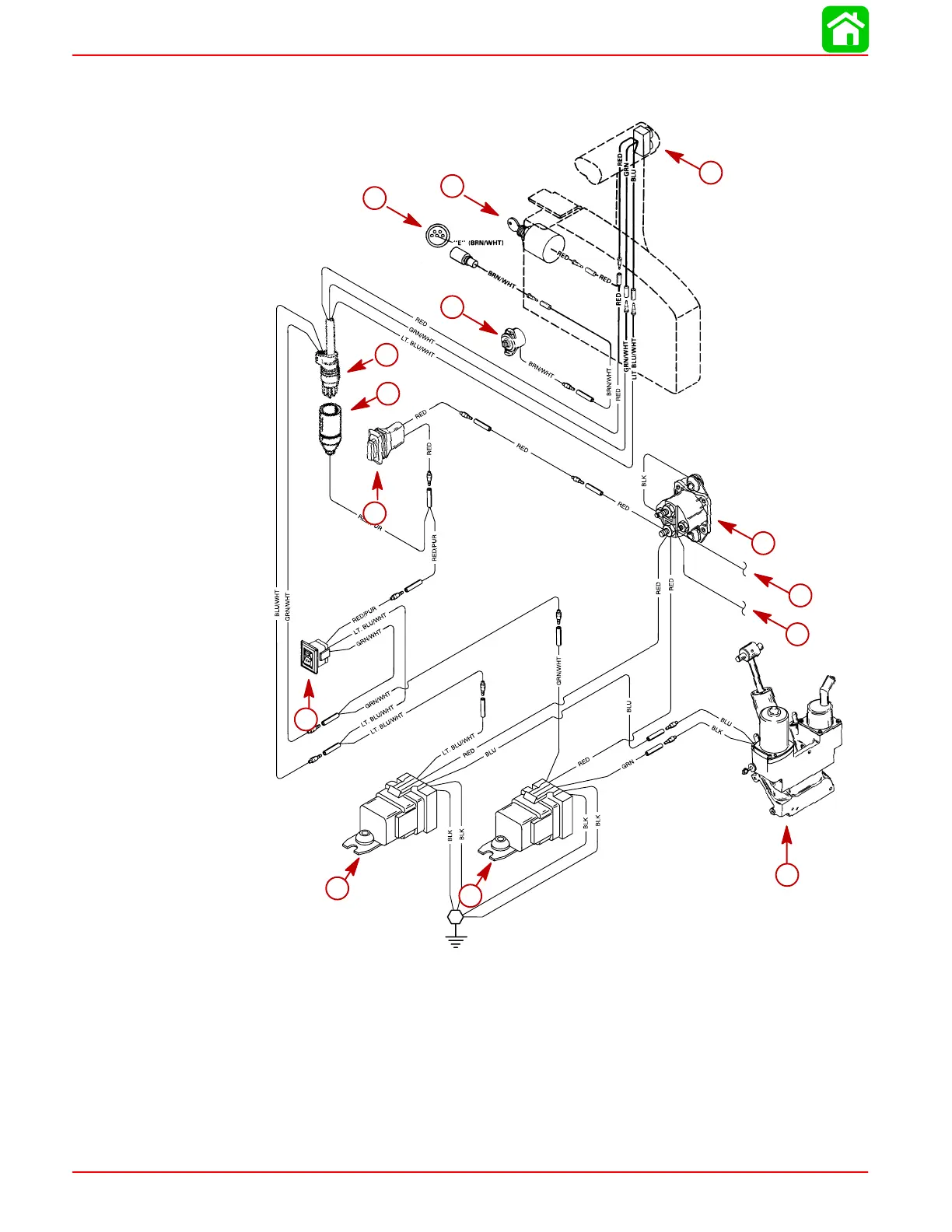

Power Trim Wiring Diagram
a
b
c
d
e
f
g
h
i
j
k
l
m
n
a
b
c
d
e
f
g
h
i
j
k
l
m
n
a-Tach. Connector
b-Key Switch Assembly
c-Trim Switch
d-Trim Sender
e-Start Solenoid
f-To Battery
g-To Alternator
h-Trim Pump and Motor
i-DOWN Solenoid
j-UP Solenoid
k-Bottom Cowl Switch
l-20 Ampere Fuse
m-Engine Harness
n-Remote Control Harness
