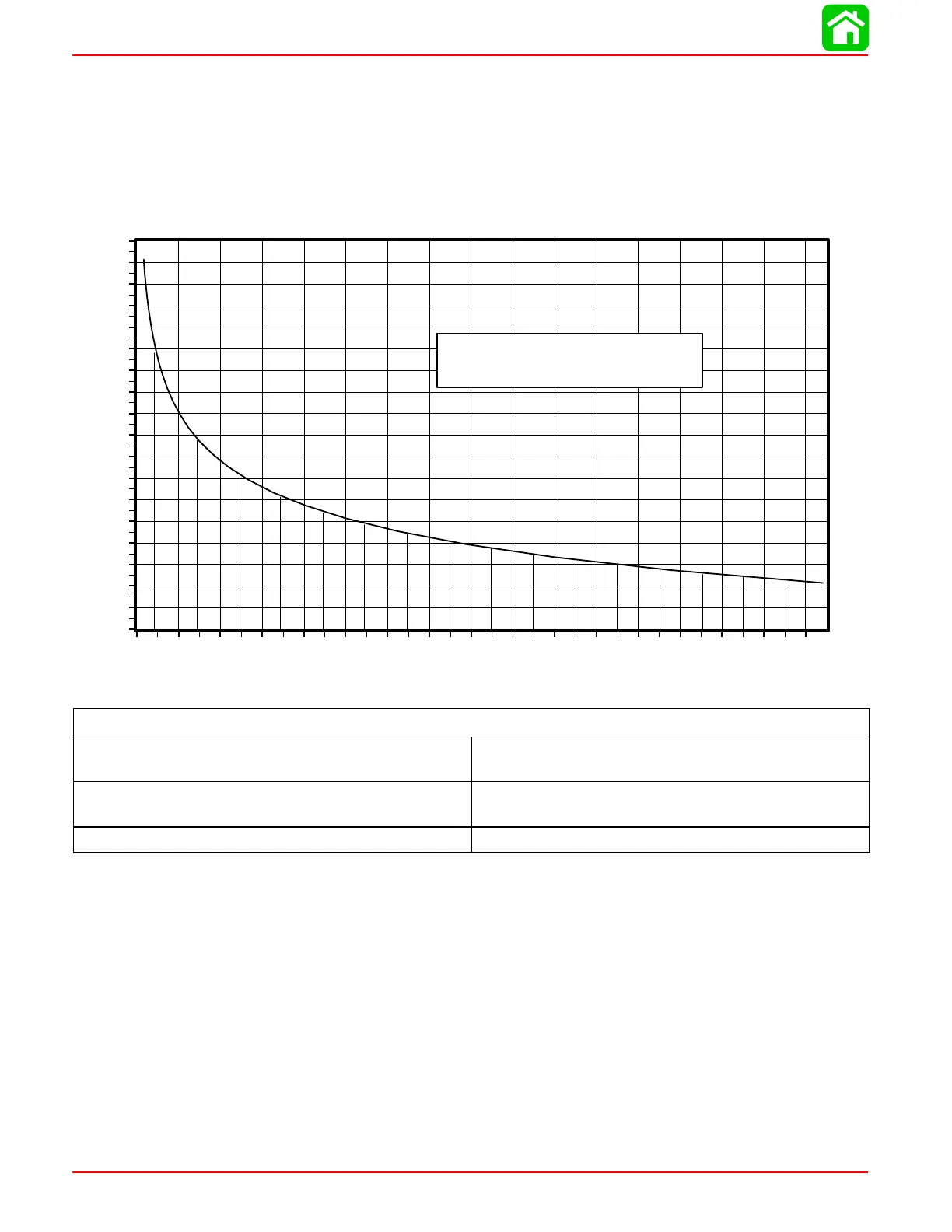

Analog Temperature Sensor
TAN/BLACK sensor lead (in port analog temperature sensor) provides signal for optional
temperature gauge.
An ohms test of the analog temperature sensor (in port cylinder head) would be as follows:
Insert digital or analog ohmmeter test leads into both TAN/BLACK sensor leads. With en-
gine at temperature (F°) indicated, ohm readings should be as indicated ±10%.
0
15
30
45
60
75
90
105
120
135
150
165
180
195
210
225
240
255
270
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2
Resistance (k)
Temperature (F
)
Temperature Sensor
°
Temperature Sensor
Between Black and each TAN/BLK wire. No
Continuity
Between each lead and ground No
Continuity
Between each TAN/BLK wire Resistance will vary with temperature
