OUTBOARD MOTOR INSTALLATION
90-883728 JULY 2001 Page 1D-13

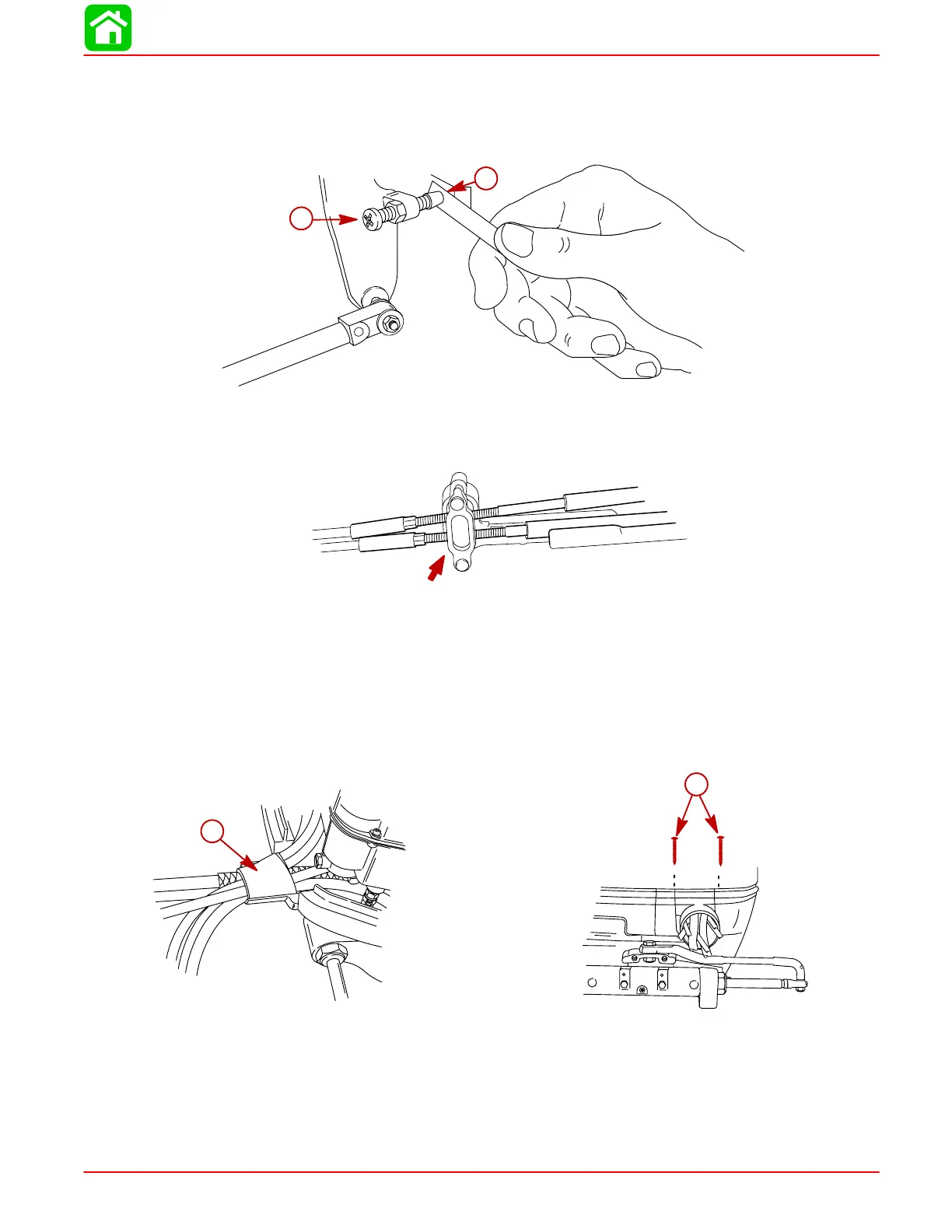

b. Return remote control to neutral. Place a thin piece of paper between idle adjust-
ment screw and idle stop. Adjustment is correct when the paper can be removed
without tearing, but has some drag on it. Readjust cable barrel if necessary.
IMPORTANT: The idle stop screw must be touching the stop.
a
b
57839
a-Idle Stop Screw
b-Idle Stop
5. Lock the barrel holder in place with the cable latch.
Front Clamp Reassembly
IMPORTANT: Sufficient slack must exist in engine wiring harness, battery cables,
fuel hose, and oil hoses routed between clamp and engine attachment point, to re-
lieve stress and prevent hoses from being kinked or pinched.
1. Place the neoprene wrap over the wiring, hoses, and control cables as shown.
2. Fasten clamp together with two screws.
a
b
a-Neoprene Wrap
b-Screw (2)
