FUEL INJECTION
Page 3B-56 90-883728 JULY 2001
Oil Reservoir Removal
1. Disconnect low oil sensor bullet connectors (BLUE leads).
2. Remove sta-strap securing reservoir hose to oil pump and remove hose. Plug hose
to prevent leakage.
3. Remove oil input hose to oil reservoir from check valve.
4. Remove 3 screws and remove reservoir.

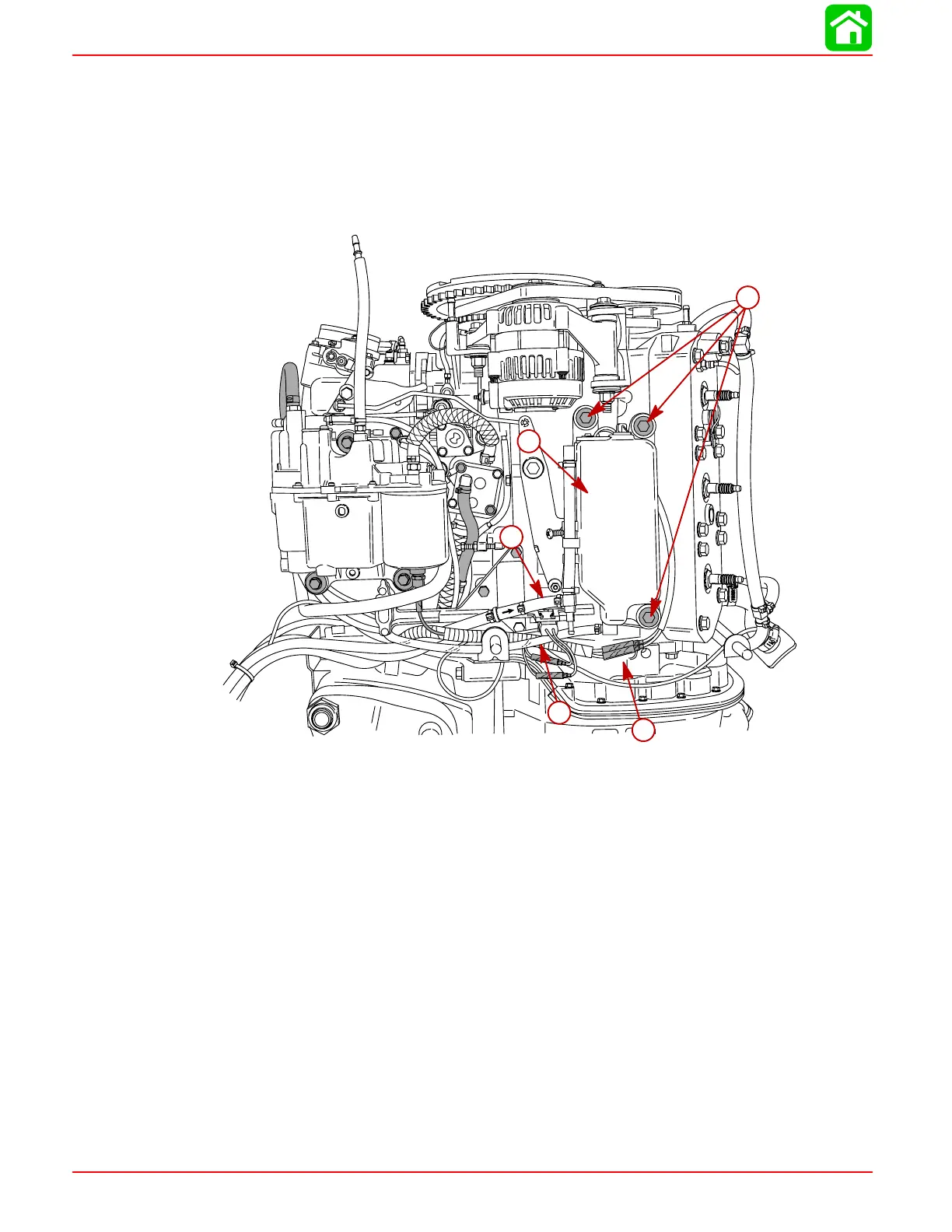

58896
a
b
c
d
e
a-Bullet Connectors
b-Reservoir Hose
c-Oil Input Hose
d-Screws
e-Oil Reservoir
Oil Reservoir Installation
1. Secure oil reservoir to engine with 3 screws. Torque screws to 14 lb. ft. (19 Nm).
2. Secure oil reservoir hose to oil pump with sta-strap.
3. Secure oil input hose to check valve with sta-strap.
4. Reconnect low sensor bullet connectors.
To Next Page
