FUEL INJECTION
Page 3B-32 90-883728 JULY 2001
149 65 2083
140 60 2488
131 55 2986
122 50 3603
113 45 4370
104 40 5327
95 35 6530
86 30 8056
77 25 10000
68 20 12493
59 15 15714
50 10 19903
41 5 25396
32 0 32654
14 –10 55319
5 –15 72940

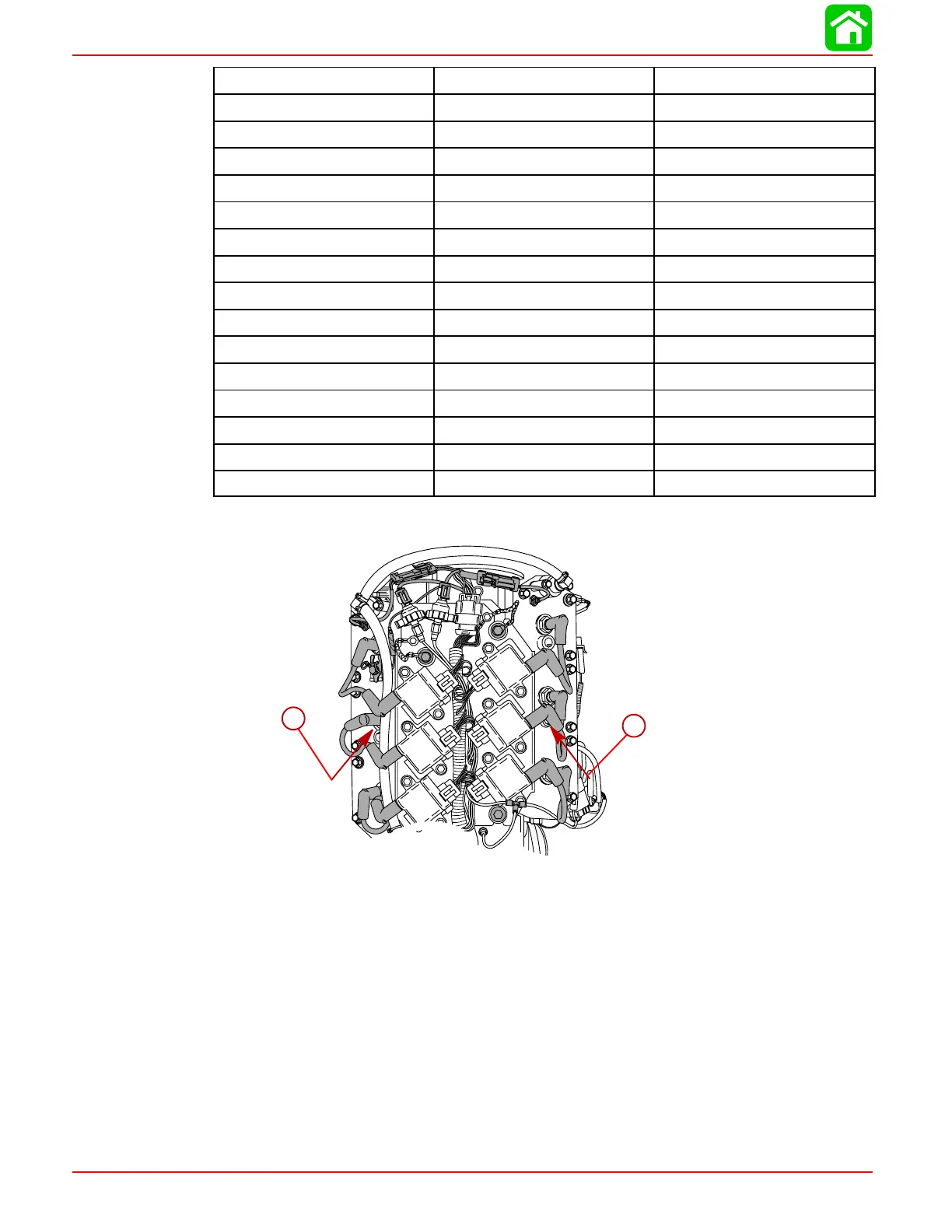

Detonation Control System Test (200 Models Only)
a
a
58893
a-Knock Sensor
Purpose: Determines whether the detonation sensor and circuit located in the ECM is functioning.
1. Place outboard in water, connect Digital Diagnostic Terminal (DDT) to engine.
NOTE: If either knock sensor is not functioning, #4 LED indicator light on DDT will be illumi-
nated.
2. Start engine, allow to warm up. Using SPECIAL FUNCTIONS portion of DDT, access
KNOCK OUTPUT LOAD TEST.
Results: As throttle is advanced and engine is under load (in gear), numerical value on DDT display should
increase. As throttle is retarded, numerical value should decrease indicating knock sensor/circuit is
functioning. If numerical value does not change as throttle setting and load on engine varies, knock
sensor or knock circuit in ECM is defective.
