POWERHEAD
90-883728 JUL
Y 2001
Page 4A-29

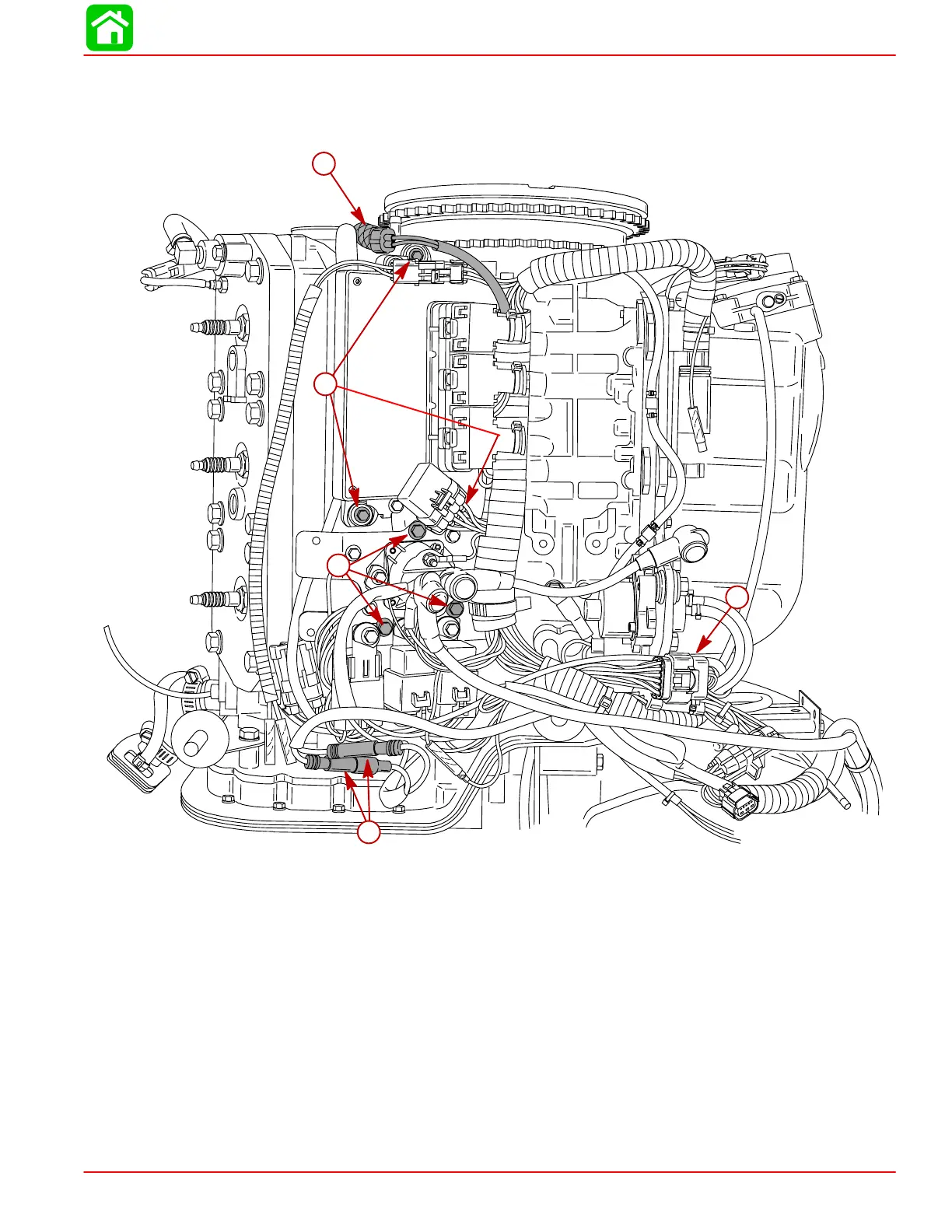

Electrical Plate Removal
Disconnect and/or remove the following:
a
d
c
e
b
58895
a-
Crank Position Sensor Connector
b-
T
rim Motor Bullet Connectors
c-
Fuel Injector Harness Connector
d-
ECM Screws (3)
e-
Solenoid Plate Screws (3)
