FUEL INJECTION
90-883728 JULY 2001 Page 3B-47
Reed Block Assembly Removal
1. Remove 12 screws securing air plenum to reed plate assembly.
2. Remove 12 screws securing reed blocks to reed plate assembly.

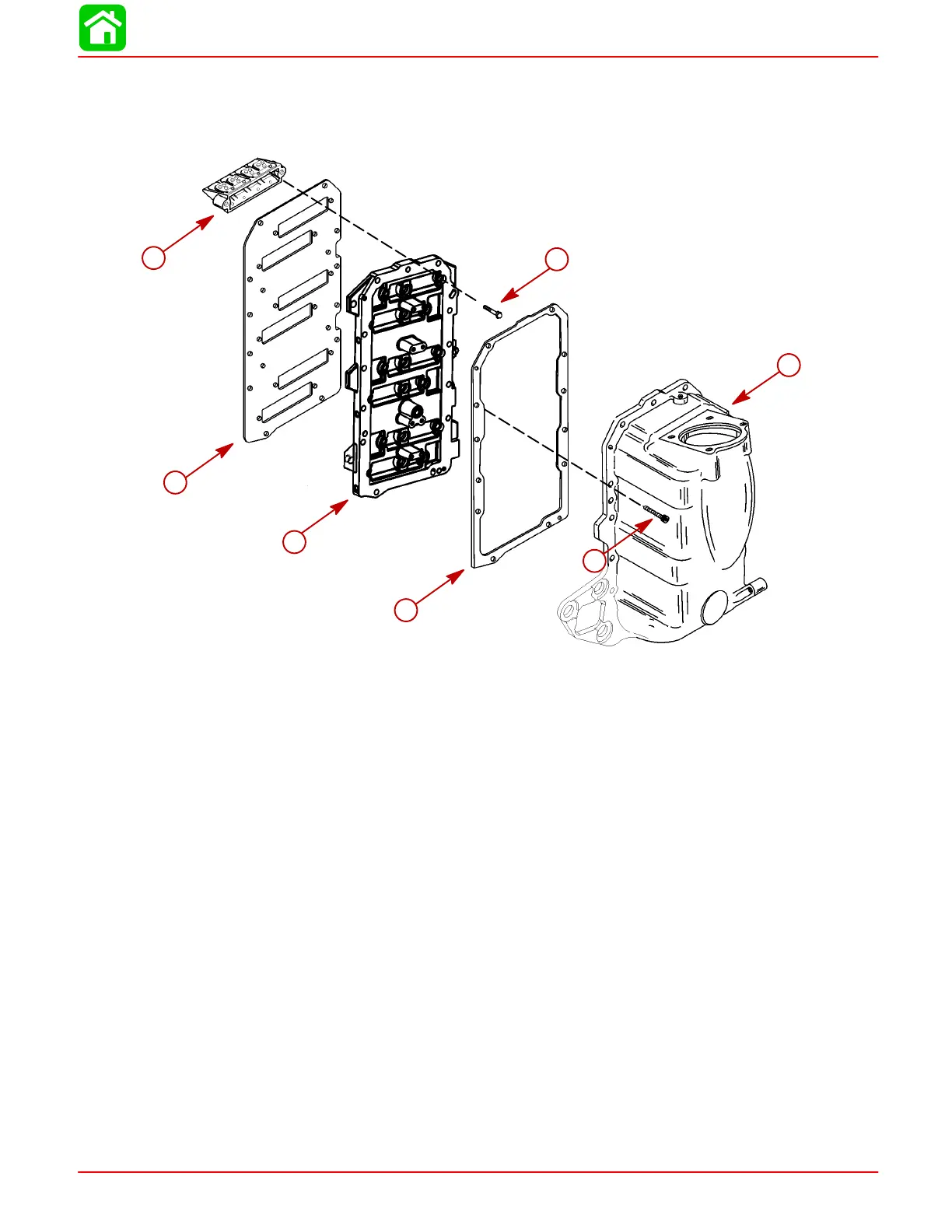

a
c
d
e
f
b
g
a-Screws (2 each per reed block) (M4x16)
b-Air Plenum
c-Screws (12 each) (1/4x20x0.88)
d-Gasket
e-Adaptor Plate
f-Gasket
g-Reed Block (6 each)
Reed Block Assembly Installation
NOTE: The gasket between the air plenum and the adaptor plate has a sealing bead which
faces toward the air plenum during assembly. Gaskets may be reused if they do not show
signs of tears, abrasions or oil saturation. Replace gaskets if necessary.
1. Secure reed block assembly to adaptor plate with 2 screws. Torque screws to 105 lb.
in. (11.8 Nm).
2. Secure air plenum and adaptor plate/reed block assembly to cylinder block crankcase
with 12 screws. Torque screws to 15 lb. ft. (20 Nm).
