LEFT HAND NON-RATCHETING
Page 6B-28 90-883728 JULY 2001
CLEANING AND INSPECTION
1. Clean driveshaft, tapered bearing and race, and pinion gear with solvent. Dry with
compressed air. DO NOT allow driveshaft bearing to spin while drying.
2. Inspect pinion gear for pitting, grooves, scoring, uneven wear and/or discoloration
from overheating. Replace pinion gear, if any of the above conditions are found.
3. Inspect driveshaft needle bearing surface (area just above pinion gear splines) for pit-
ting, grooves, scoring, uneven wear and/or discoloration from overheating. Replace
driveshaft and driveshaft needle bearing, if any of the preceding conditions are found.
4. Inspect driveshaft to crankshaft splines for wear. Replace driveshaft if wear is exces-
sive.
5. Inspect tapered bearing race for pitting, grooves, scoring, uneven wear and discolor-
ation from overheating. Replace tapered bearing and race as a set, if any of the pre-
ceding conditions are found.
6. Inspect driveshaft for groove(s) where water pump base oil seals contact shaft. Re-
place driveshaft if groove(s) are found.
Reverse Gear
REMOVAL AND DISASSEMBLY
NOTE: Reverse gear can be removed from gear housing only after driveshaft and pinion
gear have been removed.
NOTE: Cautiously applying heat to both sides of gearcase where reverse gear assembly
is located will aid in removal of bearing cup adapter.
1. Remove reverse gear by hand.

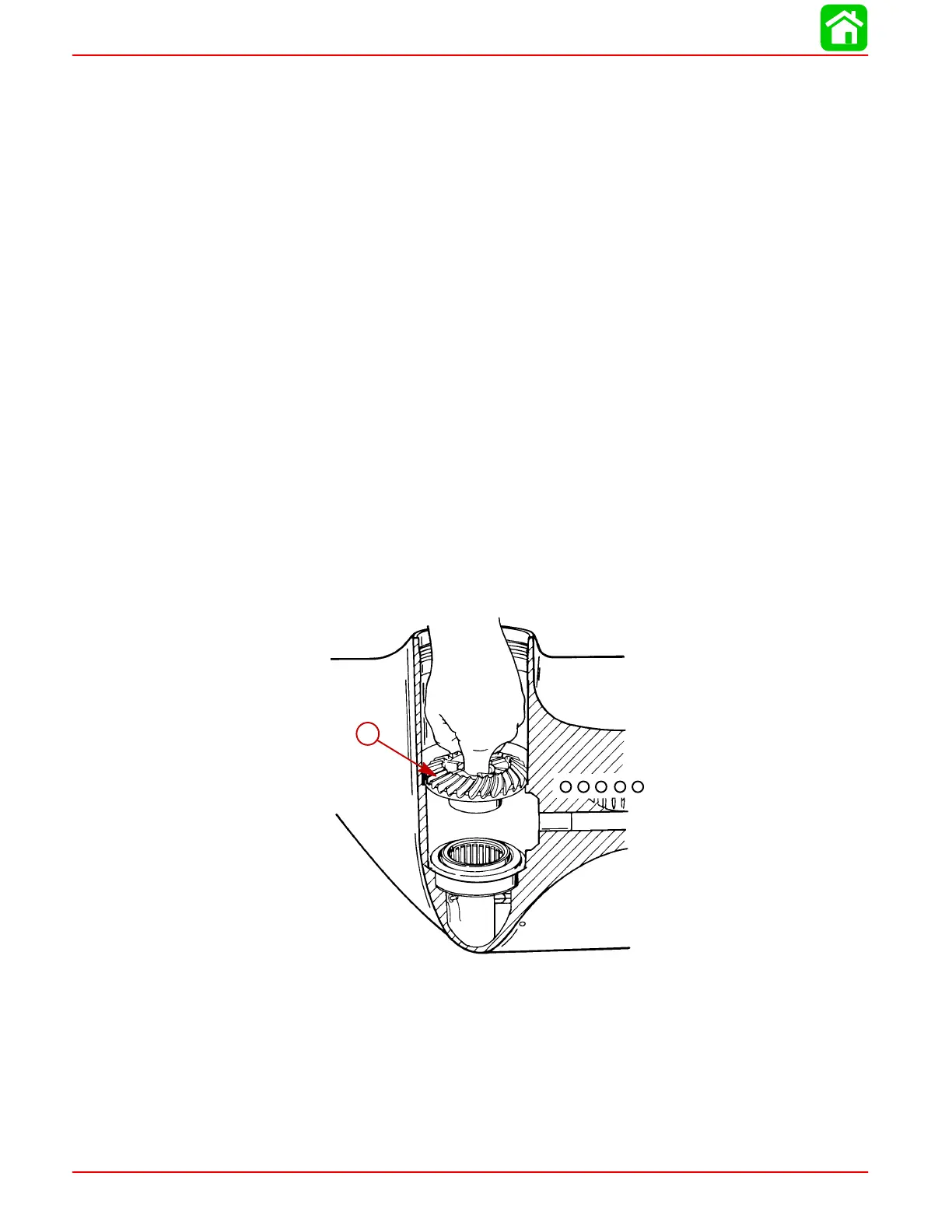

50884
a
a
a-Reverse Gear
IMPORTANT: DO NOT remove needle bearing from reverse gear unless replace-
ment of bearing is required. Bearing cannot be reused after it has been removed.
