POWER TRIM
90-883728 JULY 2001 Page 5B-9

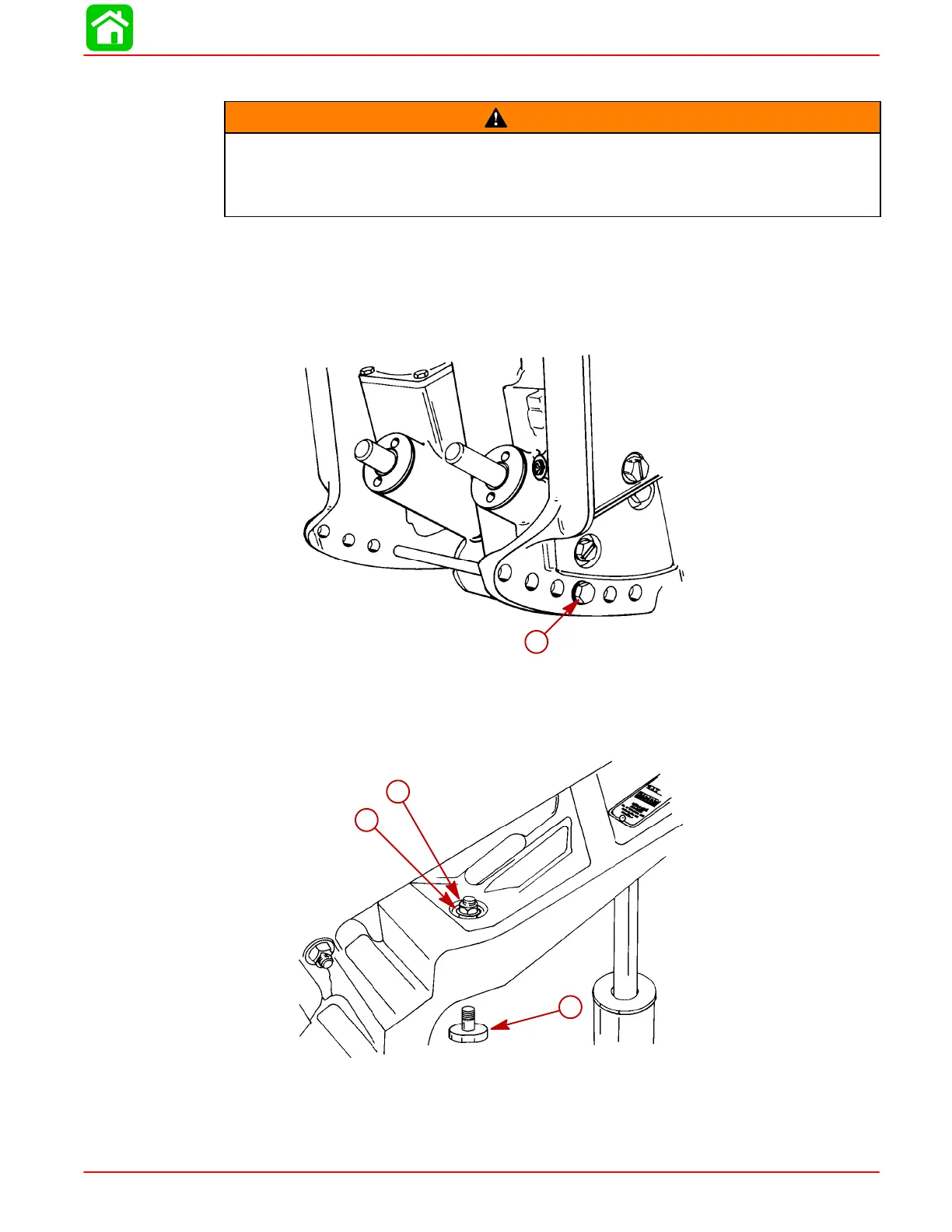

Trim “In” Angle Adjustment
WARNING
Boat operation with outboard trimmed to the full “In” trim angle [not using the
trim angle adjustment bolt (a)] at planing speed may result in undesirable and/or
unsafe steering conditions. A water test for handling/steering conditions is re-
quired after any trim angle adjustments.
IMPORTANT: Some boat/motor combinations not using the trim angle adjustment
pin (a) and trimmed to the full “In” trim angle position may not exhibit any undesir-
able and/or unsafe handling and/or steering characteristics at planing speed. If so,
not using the trim angle adjustment bolt may be advantageous to acceleration and
planing. A water test is required to determine if these characteristics apply to a par-
ticular boat/motor combination.
51353
a
a
a-Trim Angle Adjustment Bolt
Striker Plate Replacement
Visually inspect striker plates and replace if worn excessively.
27930
a
b
c
a
b
c
a-Striker Plate (2)
b-Lockwasher
c-Locknut. Torque to 80 lb. in. (9 Nm)
