POWERHEAD
90-883728 JULY 2001 Page 4A-41

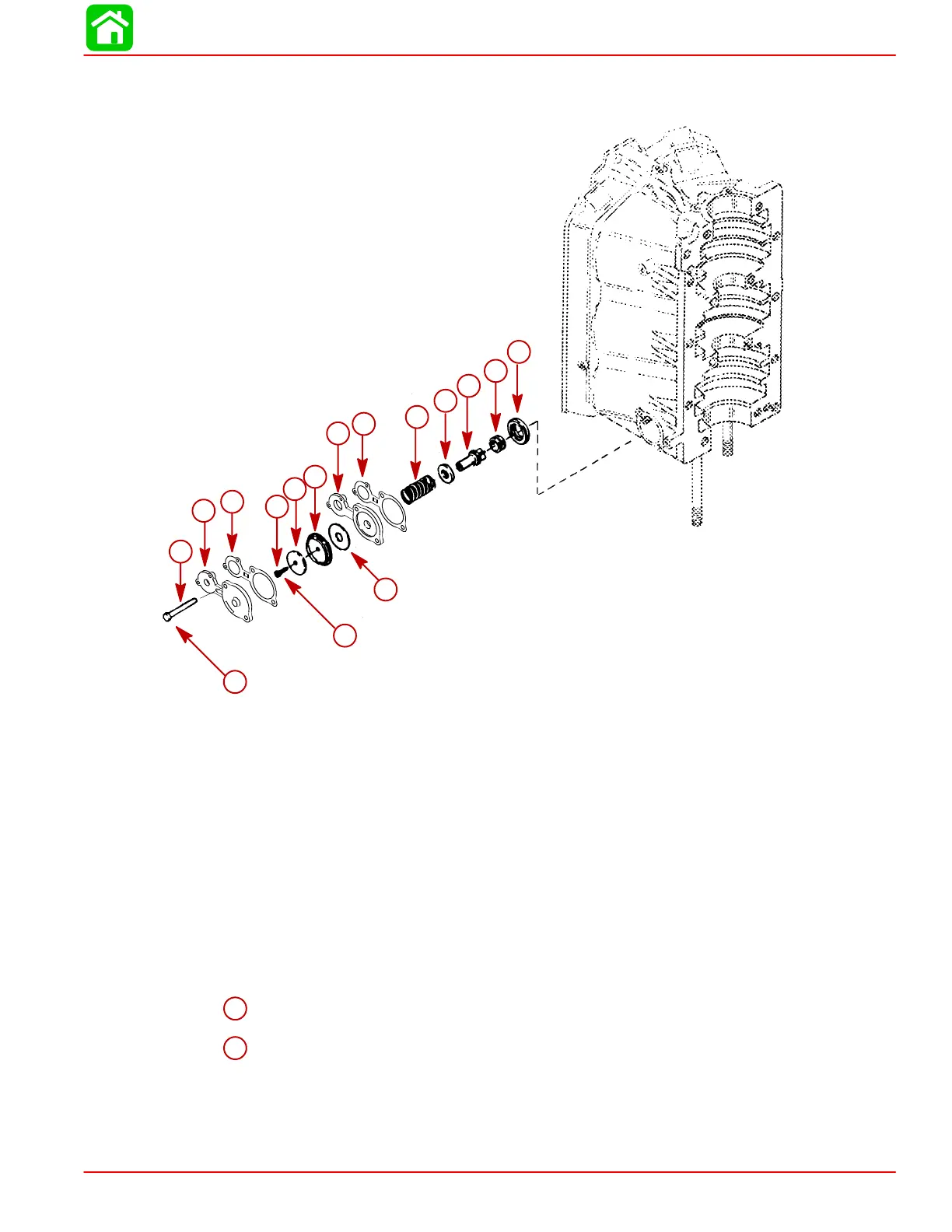

Water Pressure Relief Valve Components
1. If necessary, remove water pressure relief valve components as shown.
7
5
13
11
12
9
8
a
b
a
b
1
2
3
4
5
7
8
9
10
11
12
13
3
50803
6
1-Cover
2-Bolt
3-Gasket
4-Relief Valve Plate
5-Diaphragm
6-Water Deflector
7-Washer
8-Screw
9-Spring
10 - Poppet Valve
11 - Grommet
12 - Carrier
13 - Washer
Torque Specifications
a
150 lb. in. (17 N·m)
b
25 lb. in. (3 N·m)
