POWERHEAD
Page 4A-62 90-883728 JULY 2001

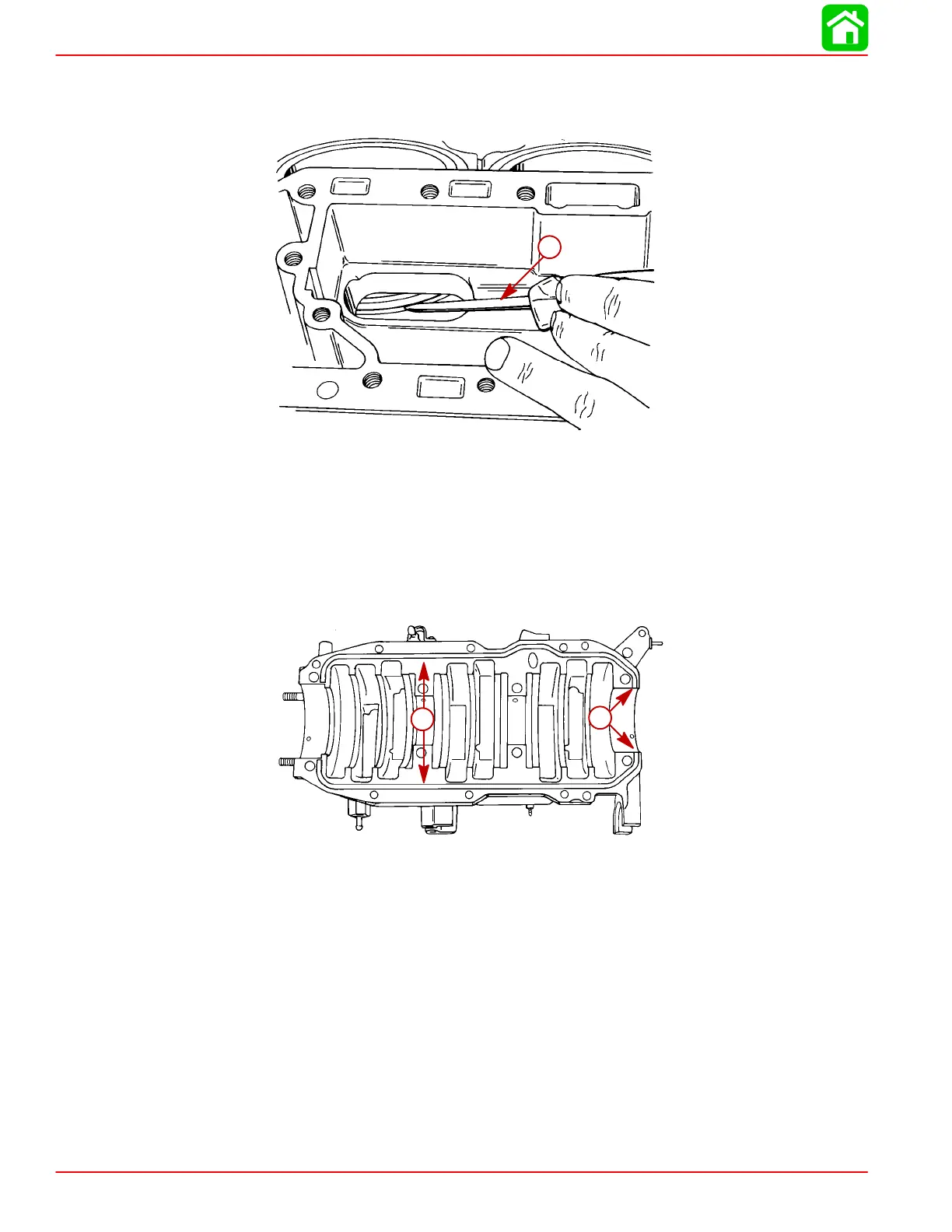

14. Verify that no piston rings were broken during installation by pressing in on each piston
ring thru exhaust port using a screwdriver. If no spring tension exists (ring fails to return
to position), it’s likely the ring is broken and must be replaced.
51852
a
a-Screwdriver
Crankcase Cover Installation
1. Thoroughly remove all oil from mating surfaces of crankcase cover and cylinder block
with Loctite 7649 Primer.
2. Install gasket strips into grooves in crankcase cover. Trim end of each gasket strip flush
with edge of cover as shown.
51852
a
b
a-Gasket Strips
b-Edge of Cover
To Next Page
