Mercury 200XRI User Manual

WIRING DIAGRAMS
Page 2D-30 90-883728 JULY 2001
CAL1 Calibration
Cal1 Display Calibrations:
•Trim Pop up Screen (On or Off)
•Trim Calibration
•English or Metric Units Selection
•Range Units Selection
•(On or Off) Depth, Trim, Engine Temperature, Oil Pressure, Oil
Temperature, Water Pressure, Volts, Engine Hours, and Data
Simulator pages.
NOTE: NOT ALL SCREENS MAY APPLY TO YOUR ENGINE TYPE.

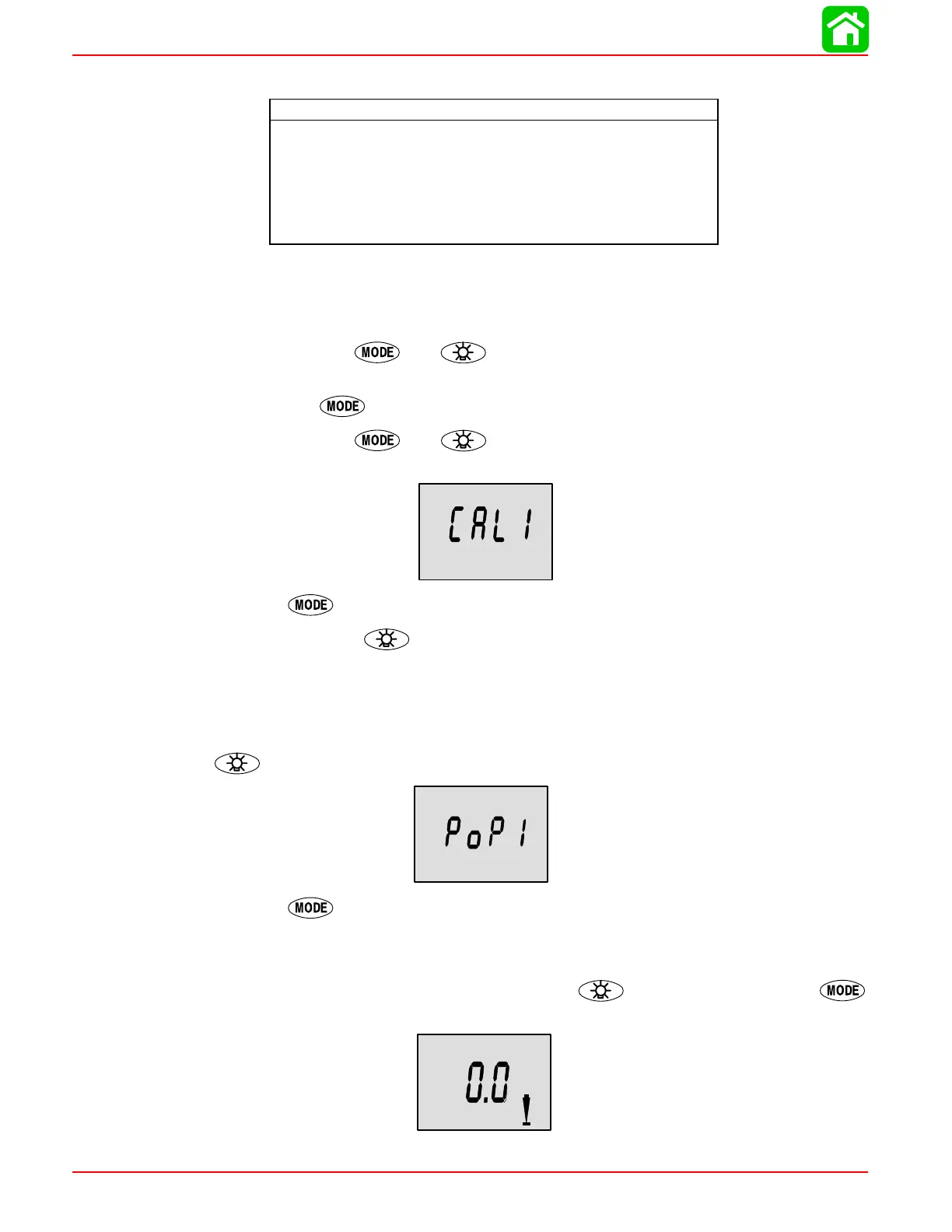

CAL1 HEADER SCREEN
1. Turn ignition key to the on position.
2. Press and hold
and for 3 seconds to bring up the Cal1 calibration screen.
Release the buttons to enter
Cal1 .
3. Press the
button to advance through the Cal1 calibration functions.
4. Press and hold
and for 3 seconds to save changes and exit the Cal1 cal-
ibration screen.
Press the button to move to the next calibration screen.
NOTE: Pressing the button while in this header screen, will “transfer” you straight into
Cal2.
TRIM POP UP SCREEN (ON OR OFF)
If you want the power trim display screen to pop up as you trim the propulsion unit, cali-
brate as follows: With the pop up screen displayed and the number “flashing”, press the
button to select 1=ON or 0=off.
Trim
Press the button to save and move to the next function.
Set the trim sensor as follows:
Calibration 0.0 – The word “Trim” and down arrow should be blinking. Use the trim switch and
trim the unit to the full Down/In position. Press the
button to save. Press the
button to advance to the Calibration 10.0 setting.
Trim
