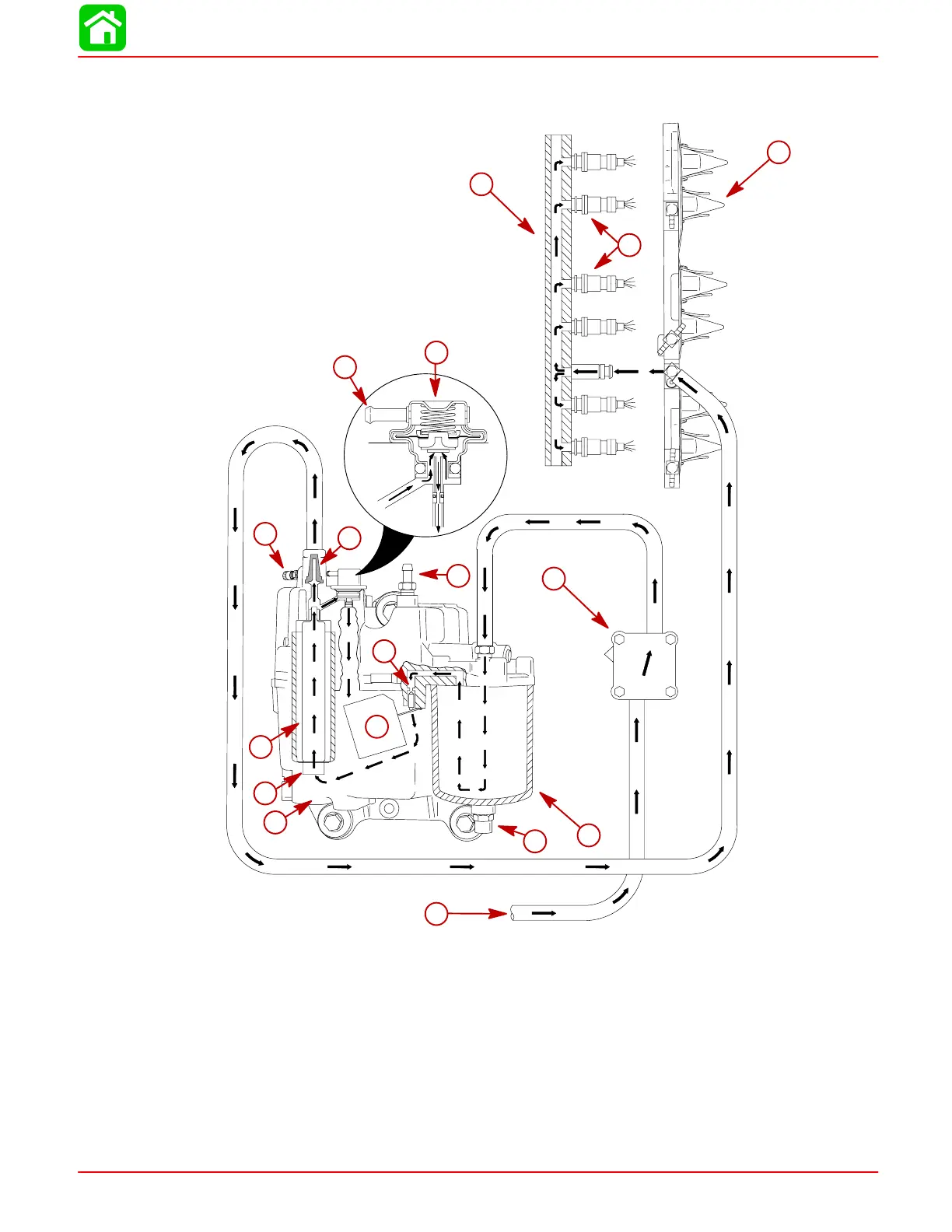

Fuel Flow Diagram
58901
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
a-Fuel Rail
b-Reed Block Plate Assembly
c-Fuel Injectors (6)
d-Pulse Fuel Pump
e-Fuel/Water Separator
f-Water Sensor
g-From Fuel Tank
h-Vapor Separator
i-Electric Fuel Pump Filter
j-Electric Fuel Pump
k-Vapor Separator Float
l-Needle and Seat
m-Vapor Separator to Flywheel Cover Vent
Hose
n-Final Filter
o-Fuel Rail Pressure Port
p-Fuel Pressure Regulator
q-Fuel Pressure Regulator Vent Hose
