LEFT HAND NON-RATCHETING
90-883728 JULY 2001 Page 6B-17
Bearing Carrier and Propeller Shaft
REMOVAL
CAUTION
Gear housing MUST BE in neutral position, and shift shaft MUST BE removed
from gear housing before propeller shaft can be removed from gear housing.
1. Place gear housing in a suitable holding fixture or vise with propeller shaft in a horizon-
tal position.
2. Use Shift Shaft Bushing Tool (91-31107) to un-thread shift shaft bushing. (DO NOT
remove bushing from shift shaft at this time.)
3. Bend retainer nut lock tab out of retainer nut recess.
b
a
51865
c
d
51882
a
b
a
b

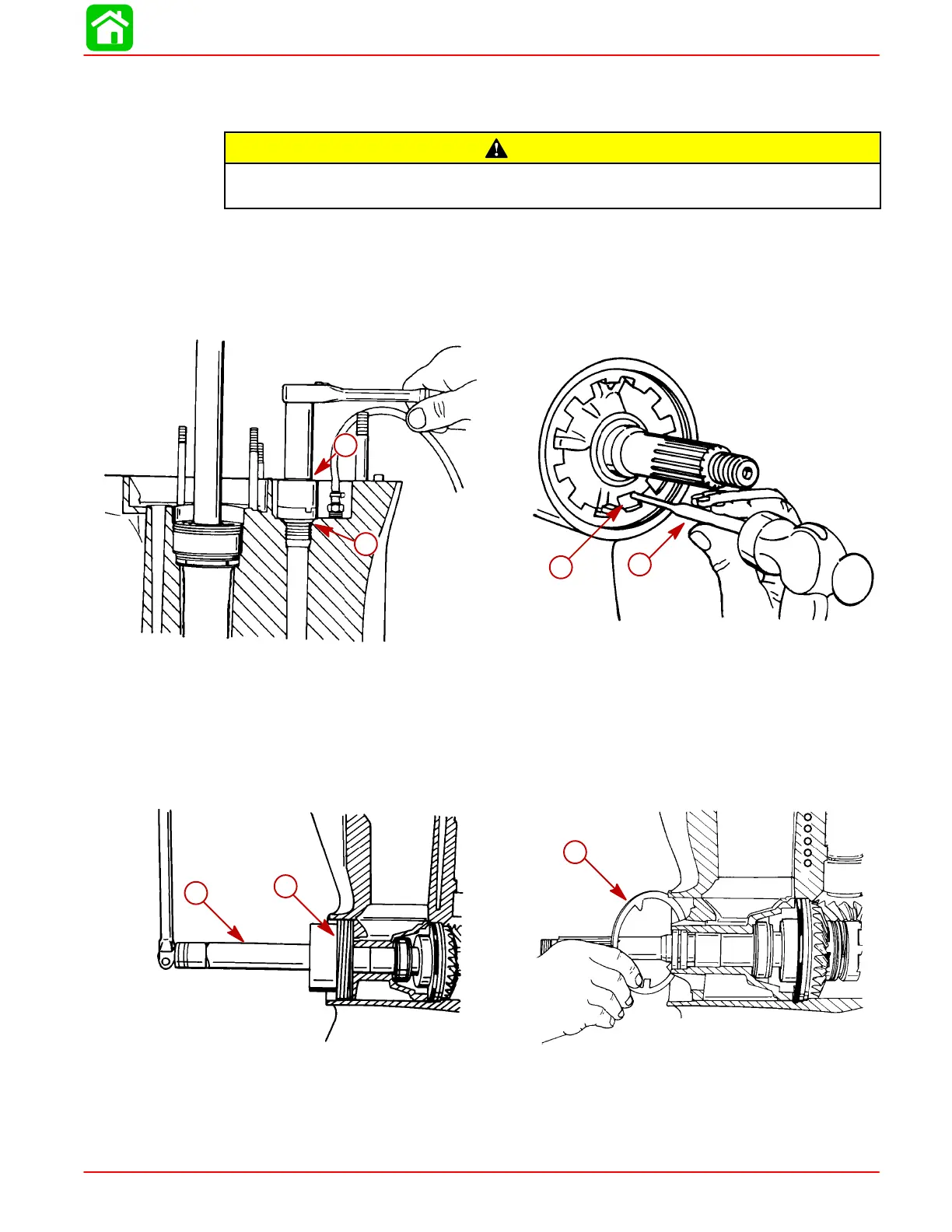

a-Shift Shaft Bushing Tool (91-31107)
b-Shift Shaft Bushing
c-Punch
d-Tab of Tab Washer
4. Remove gear housing retainer nut with Retainer Nut Tool (91-61069).
5. After retainer nut has been removed, remove lock tab washer from gear housing.
51885
a
a
b
51911
c
a
b
a-Retainer Nut Tool (91-61069)
b-Retainer Nut
c-Tab Washer
