RIGHT HAND NON-RATCHETING
Page 6A-12 90-883728 JULY 2001

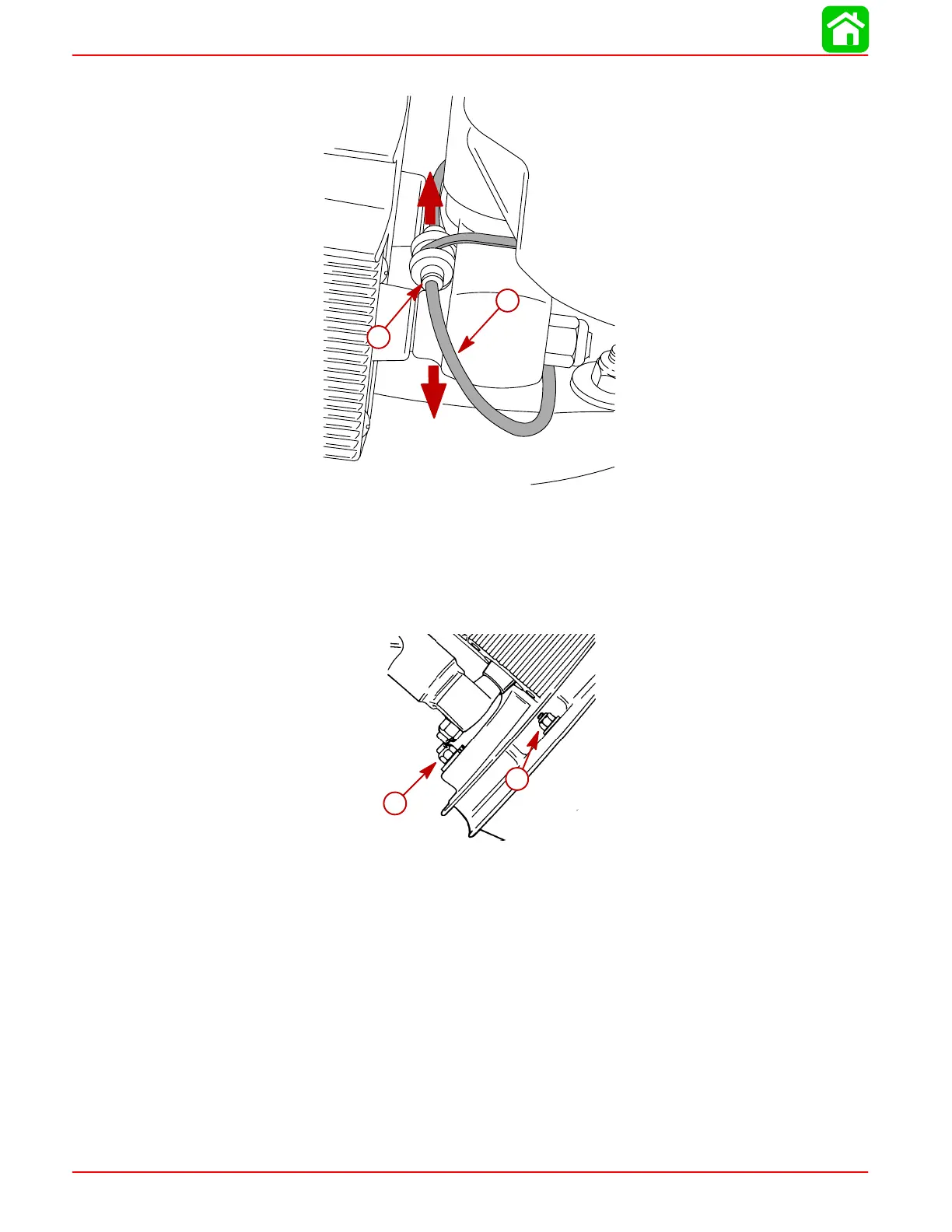

8. While pressing in on speedometer hose junction, pull out on hose to disconnect.
57735
a
b
a-Press in on Junction
b-Pull out on Hose
9. Remove locknut from the front gear housing mounting stud.
10. Loosen the side mounting locknuts. (DO NOT attempt to remove one nut before oppo-
site side is loosened sufficiently, or driveshaft housing could be damaged.)
51873
a
b
a
b
a-Front Mounting Locknut
b-Side Mounting Locknut (One Each Side)
11. Pull gear housing away from driveshaft housing as far as the loosened nuts (in Step
9) will allow, then remove loosened nuts. (DO NOT allow gear housing to fall, as it now
is free.)
12. Pull gear housing from driveshaft housing.
Draining and Inspecting Gear Housing Lubricant
1. Place gear housing in a suitable holding fixture or vise with the driveshaft in a vertical
position.
NOTE: Drain and Fill screws may be located on the starboard side of gearcase on later
models.
