POWER TRIM
Page 5B-48 90-883728 JULY 2001
Trim Indicator Gauge Needle Adjustment
1. Turn ignition key to “RUN” position.
2. Tilt outboard to full “IN” position. Needle of trim indicator gauge should be in full “IN”
position.
3. If not, tilt outboard to full “OUT” position to gain access to trim sender and engage tilt
lock lever.
4. Loosen trim sender screws and reposition trim sender.
5. Tighten trim sender screws.
c
b
a
d
a
b
c
d
e
22744

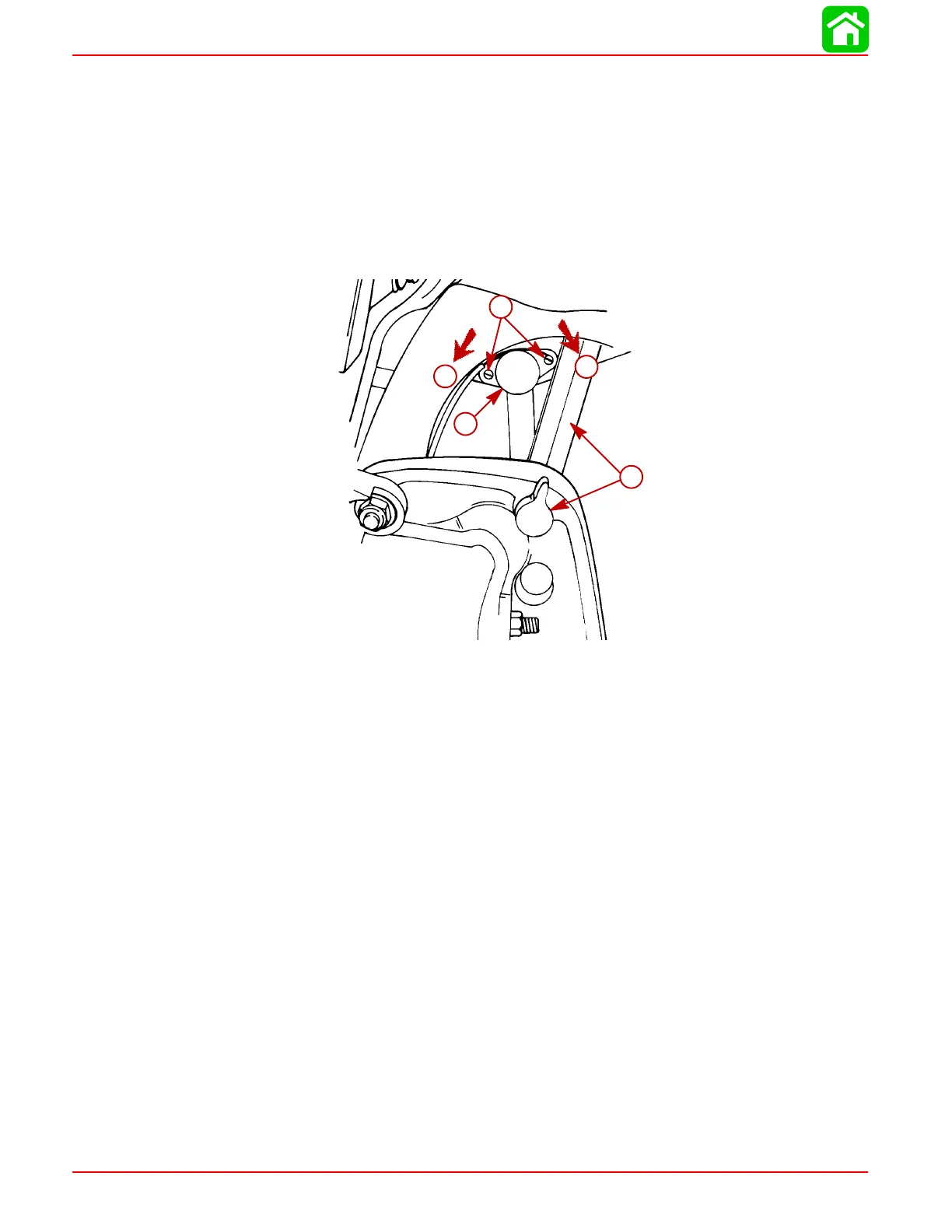

a-Trim Sender
b-Screws, Loosen to Rotate Sender
c-Turn Sender Counterclockwise to raise needle reading
d-Turn Sender Clockwise
to Lower Needle Reading
e-Tilt lock lever
To Next Page
