POWER TRIM
Page 5B-28 90-883728 JULY 2001
Hydraulic Repair
TRIM ROD REMOVAL AND REPAIR
NOTE: Power Trim does not have to be removed from outboard to remove trim rods.
1. Tilt outboard to full “UP” position and engage tilt lock lever.
2. Slowly remove “Fill” plug to bleed reservoir pressure.
3. Turn Manual Release Valve 3 to 4 turns (counterclockwise) to bleed remaining pres-
sure.
4. Remove trim rod cylinder caps.
NOTE: Place a clean pan under trim system to catch fluid.
51337
b
a
51353
b
a
b
c
d
a
b
b

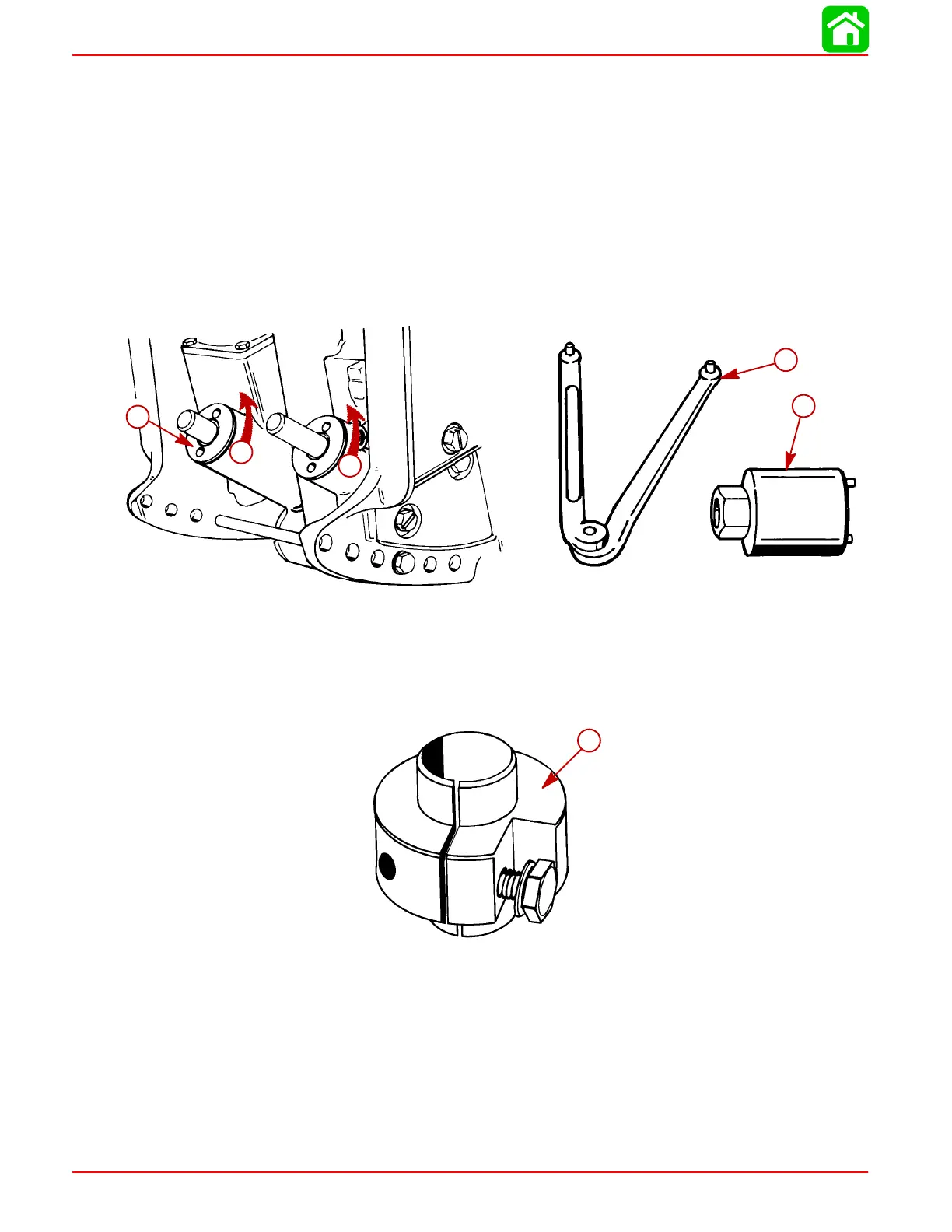

a-Trim Rod Cylinder Cap
b-Turn Counterclockwise to Remove
c-Removal Tool (91-44487A1)
d-Spanner Wrench (91-74951)
5. Install trim rod removal tool and pull trim rod from cylinder.
27933
a
a
a-Trim Rod Removal Tool (91-44486A1)
To Next Page
