FUEL INJECTION
90-883728 JULY 2001 Page 3B-43

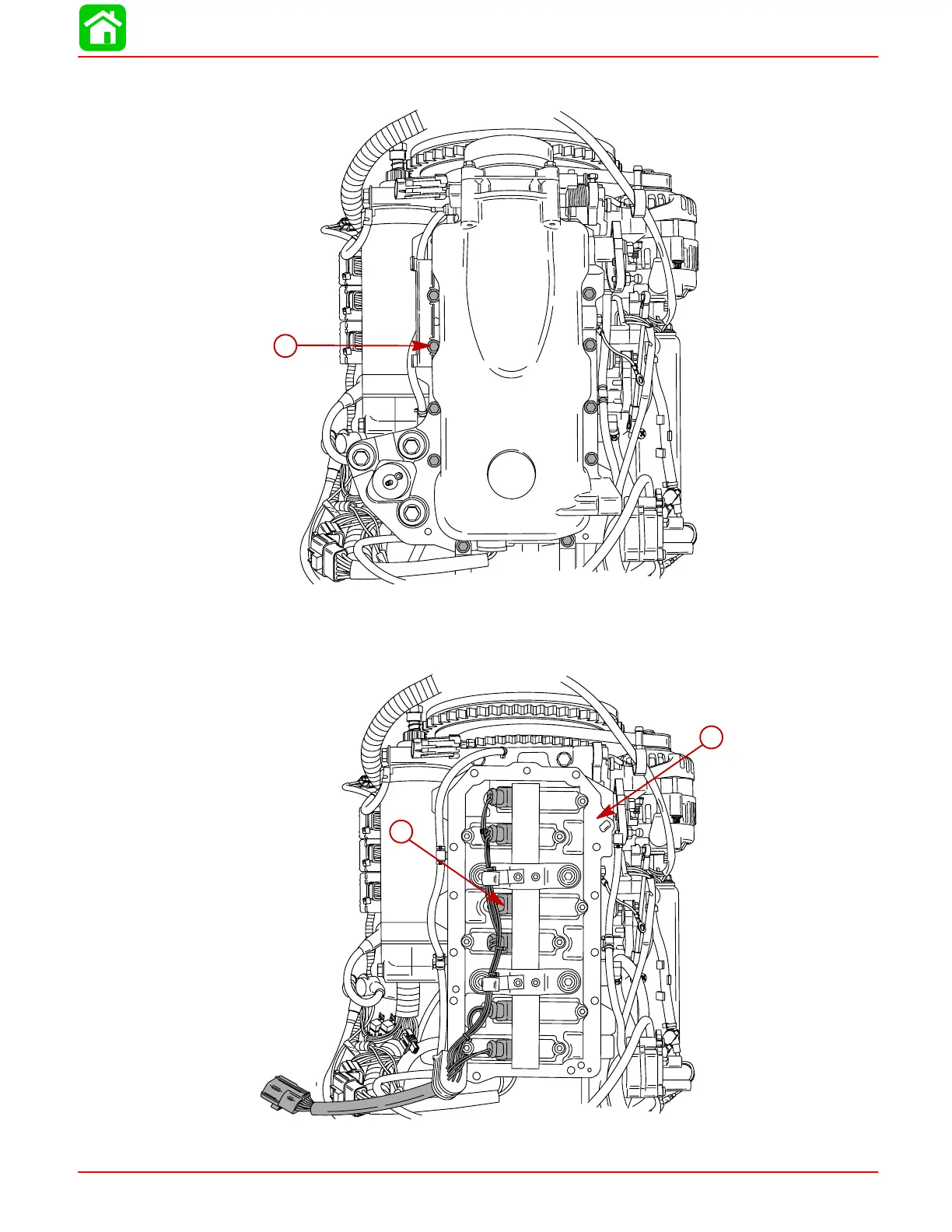

9. Remove 12 bolts securing air management assembly to crankcase and remove as-
sembly.
58793
a
a-Bolts (12 each)
Fuel Rail Removal
The fuel rail/injector assembly is attached to the reed block assembly plate by 4 screws.
58797
a
b
a-Fuel Rail/Injector Assembly b-Reed Block Assembly
