6 Image Acquisition
Operator’s Manual 6 - 23

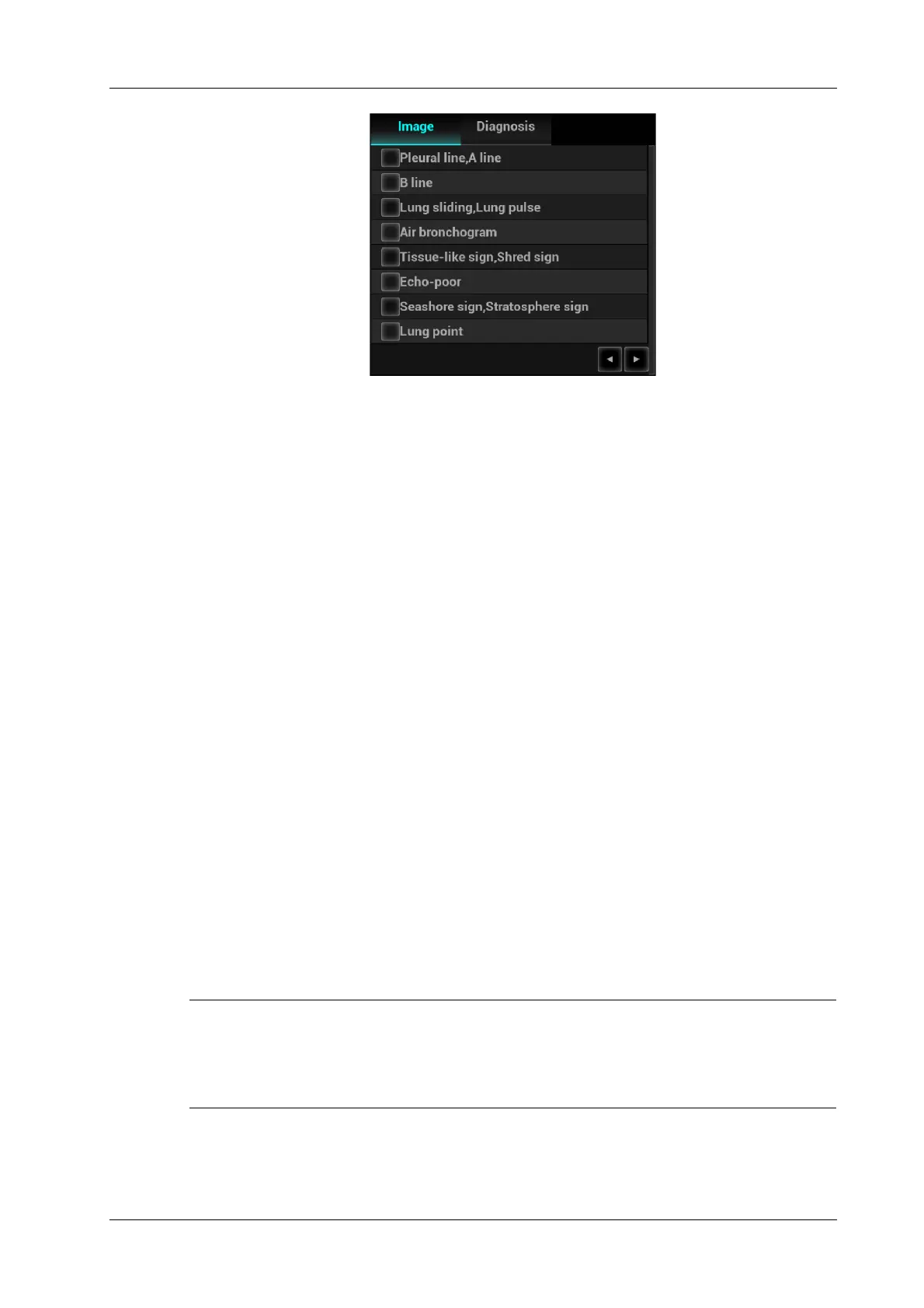

6. Press the <Save> key to save the single-frame image and B line calculation results.
If necessary, press the <Freeze> key again to unfreeze the image. Repeat steps 4-6 to finish
calculating other points.
7. Tap [Report], and select “Fluid Management” from the drop list box of [Report Type] to check
report.
For details about report operation, refer to Advanced Volume.
6.11.2 Overview
After capturing images, tap [Overview] to enter the Overview screen. The Smart B-line supports
displaying two types of lung overviews in the main screen. You can switch the two lung overviews
using the corresponding buttons on the touch screen.
• Image Map: Displays the ultrasound images of all zones, so as to check the overall lung
condition. Ever lung zone displays the ultrasound image with the highest percent of the B line
area by default.
If a zone saves multiple ultrasound images, tap the point corresponds to this zone, and tap [Pre
Item] and [Next Item] to switch the image.
• Color Map: Displays the color map of the lung and ultrasound image of a zone. The color map
uses different colors to mark the ultrasound image analysis result of every lung zone. This
analysis result is calculated from the ultrasound image with the highest percent of B line area.
Tap a point on the touch screen to check the calculation result of the zone related to this point.
6.12 Smart VTI
Smart VTI (Velocity-Time Integral) is used to calculate the CO (cardiac output) of the LVOT (left
ventricular output tract), so as to quickly evaluate the cardiac function.
• The cardiac package should be configured in advance.
• Smart VTI is an option.
• Smart VTI supports B mode image calculation in real time.
Perform the following procedure:
1. Select a phased probe and “Adult Cardiac” exam mode.
To Next Page
