Mindray ME8 Operator's Manual

B - 2 Operator’s Manual
B Trolley and Accessories
MT2 Trolley
• Probe extension module
• Printer bracket
B.2 Introduction of Each Unit
MT3 Trolley

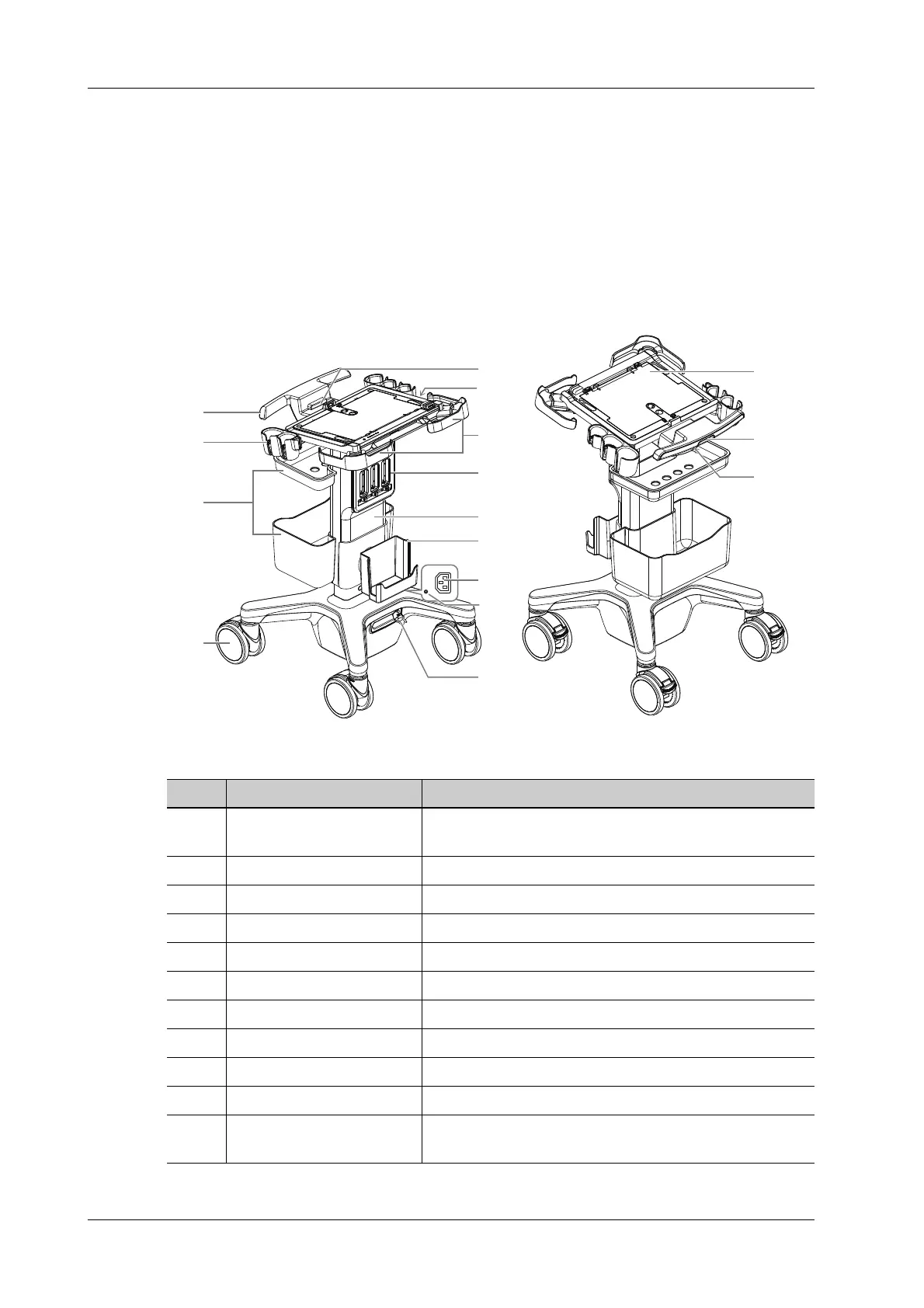

Figure B-1 Overview of the Trolley
No. Item Description
1. Trolley handle Used for ascending/descending the trolley or moving the
trolley.
2. Probe holder Used for placing probes temporarily.
3. Storage box Used for placing report or other stuff.
4. Caster Used for securing or moving the system.
5. Retractable cable AC power supply cable.
6. Power indicator Lights at AC supply.
7. Power outlet Supplies the power for peripheral devices.
8. Power adapter bracket Used for placing the power adapter.
9. Lifting column Used for adjusting the height of operation panel.
10. Probe extension module Used for extend ports for connecting probes (optional).
11. Protective handle Used for moving the trolley and protecting the trolley from
crash during moving.
1
2
3
4
5
7
6
8
9
10
11
13
12
15
14
16
