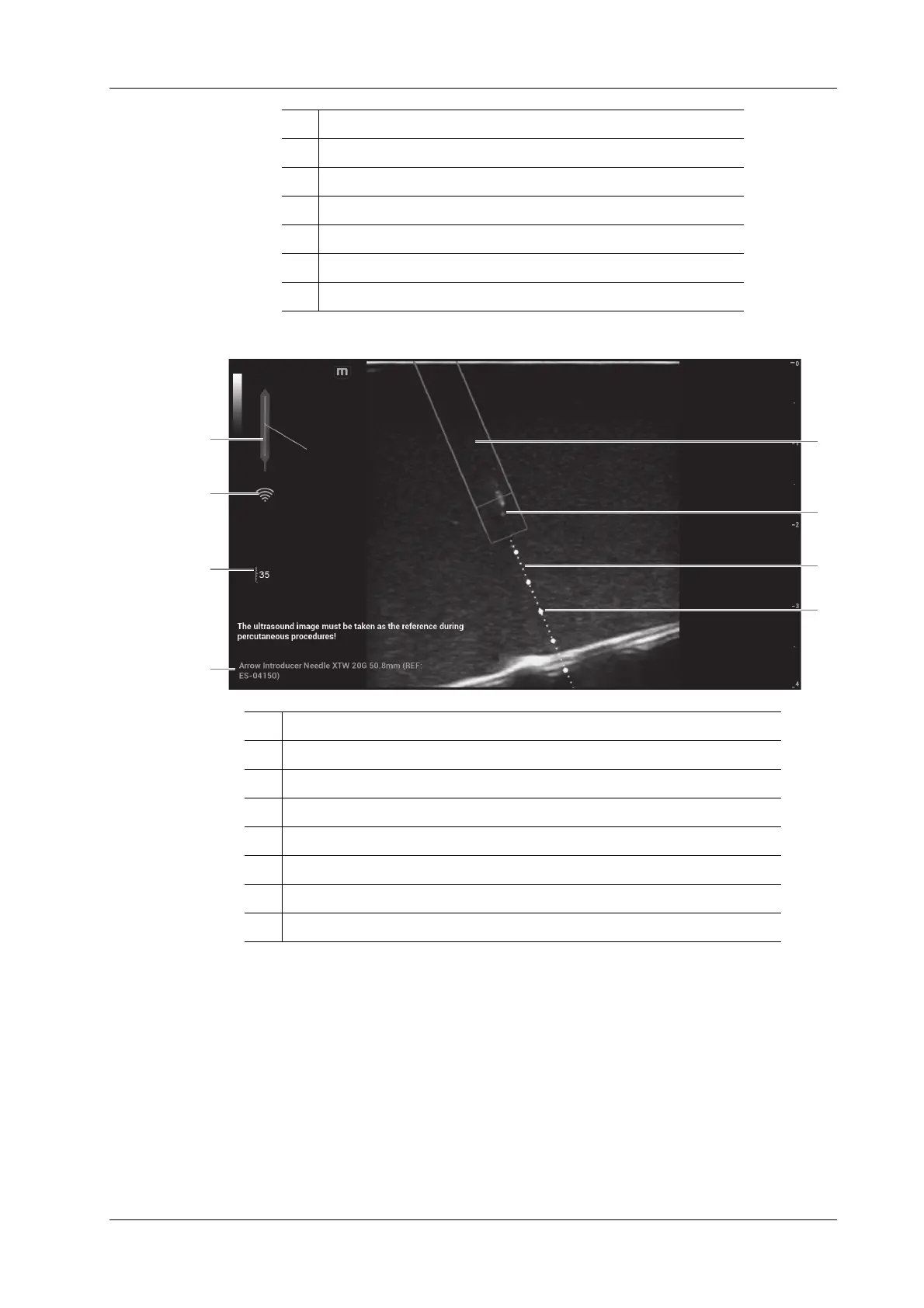

Out of Plane Needle Guidance GUI
16.4.2 Preset
eSpacial Navi Needle Menu
Select [eSpacial Navi] > [eS.Navi Needle] to enter the “eS.Navi Needle” menu.
2 Filed strength
3 Maximum depth at which the needle can be detected
4 Selected needle type
5 Scale of guideline (5 mm/scale)
6 Needle guidance trajectory
7 Needle tip position in the ultrasound plane
8 Needle position in the ultrasound plane
1 Alignment indicator (plan view)
2 Filed strength
3 Maximum depth at which the needle can be detected
4 Selected needle type
5 Scale of guideline (5 mm/scale)
6 Projection position of the needle guidance trajectory in the ultrasound plane
7 Position at which the needle cross the ultrasound plane
8 Needle projection position in the ultrasound plane
1
2
3
4
6
5
7
8
