MTS Systems FlexTest IIm User Manual

MTS 793 Controller Hardware FlexTest GT Controller Connections
115

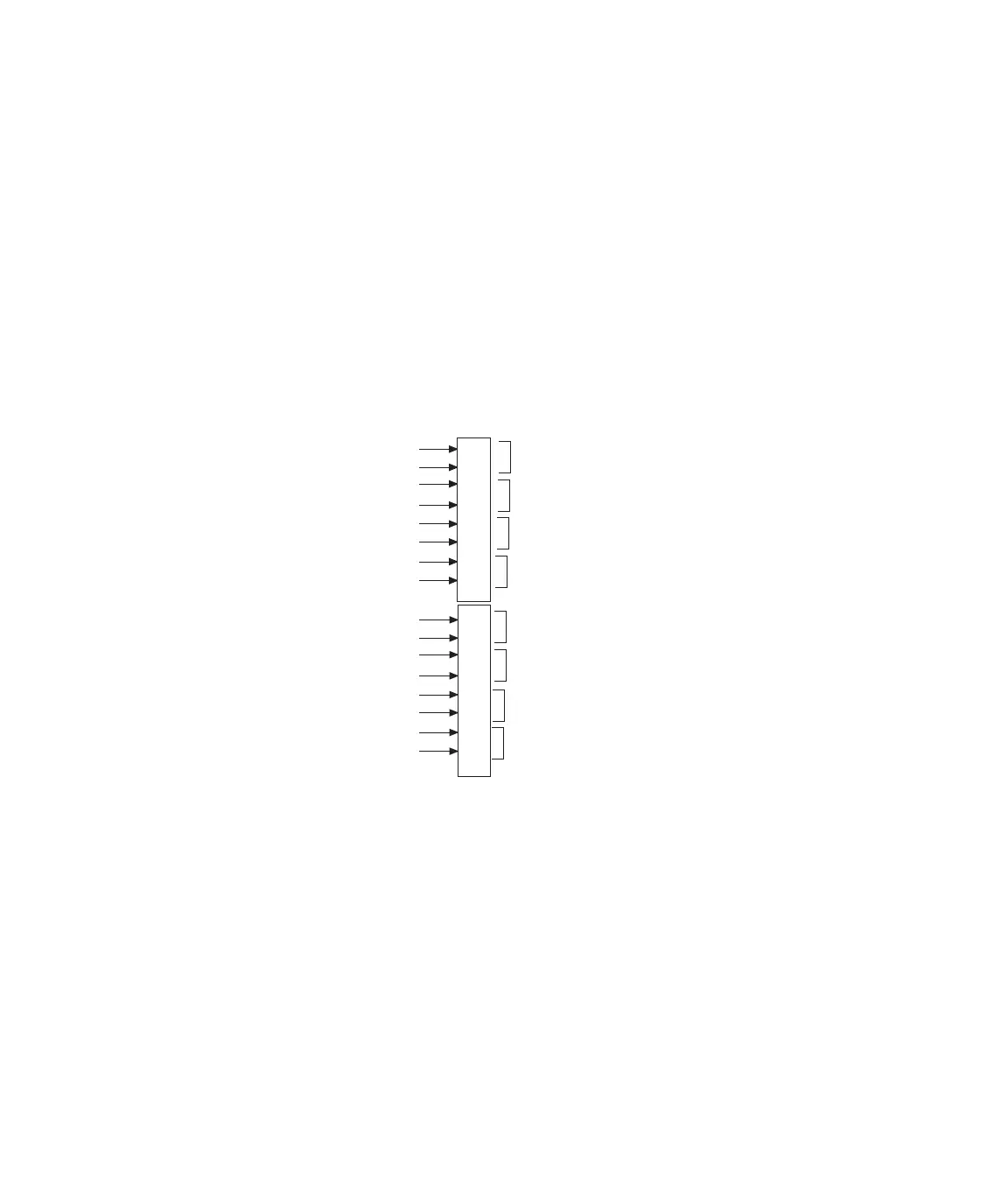

D/A Connections Digital-to-analog mezzanine cards support up to eight program or
readout signals to external devices. Each D/A signal is an analog
output within ±10 volts.
• Each readout signal is from a 16 bit digital to analog converter.
• Each output is a ±10 V analog output.
• The Model 493.56 D/A mezzanine card provides analog signals to
the Model 493.82 Analog Out transition module. Analog outputs
are available at the BNC connectors of a Model 493.82 Analog Out
transition module for external devices (DVM, oscilloscope).
.
Output 8
Output 7
Output 6
Output 5
-
+
-
+
-
+
-
+
Output 4
Output 3
Output 2
Output 1
-
+
-
+
-
+
-
+
J11, J13
J15, J17
J12, J14
J16, J18
From
D/A
To
External
Device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
