Chapter 11 Adding Lines and Annotations to an Image
111
Scale, Annotation,
and Measurement
Functions
11.4.1
Performing XY Measurement
In XY measurement, a pair of vertical bars and a pair of horizontal bars displayed on the screen are used to measure the
length between each pair of bars. You can measure the lengths in the X and Y directions at the same time. To do this:

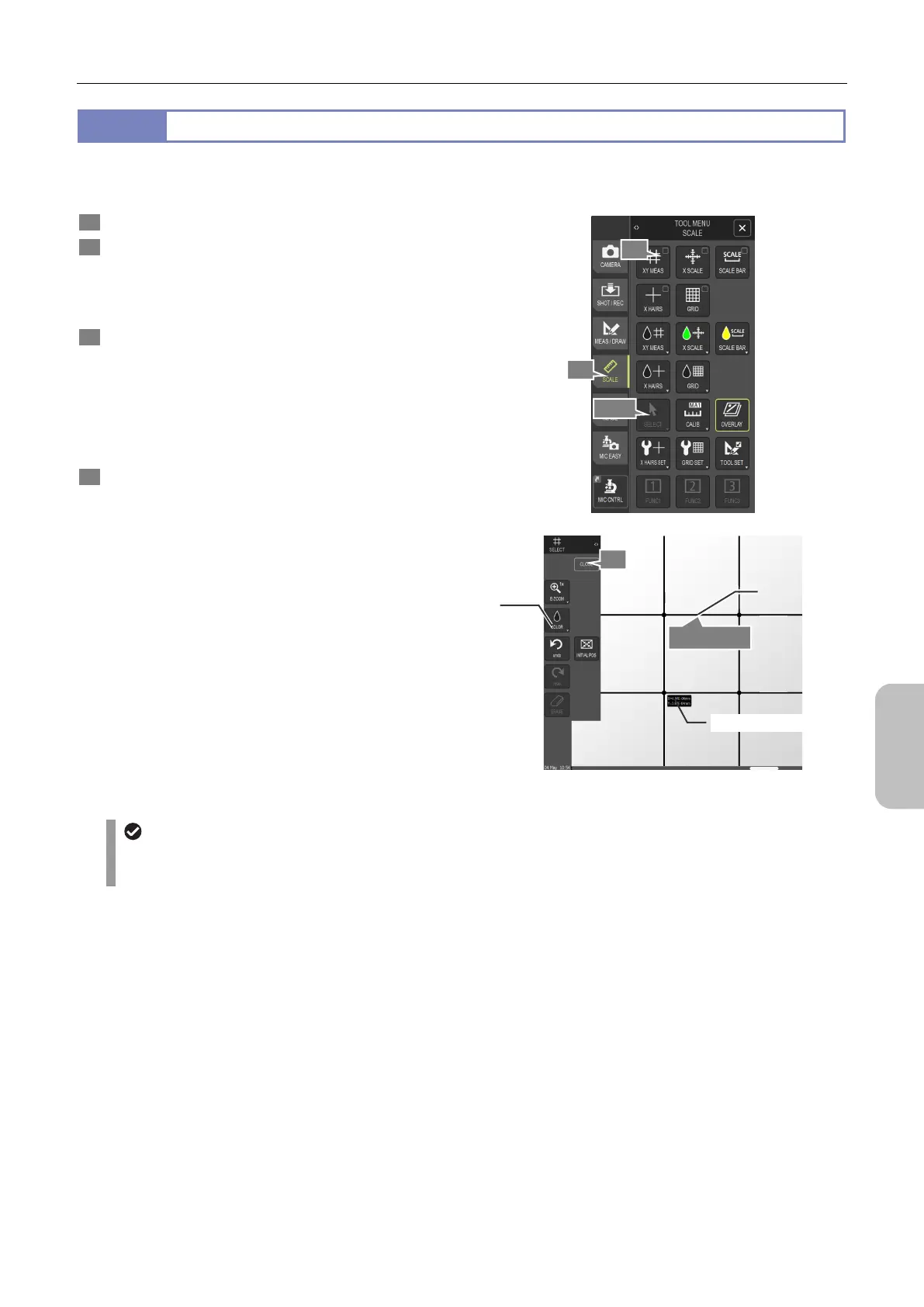

1 Display the [TOOL MENU: SCALE] screen.
2 Select [XY MEAS].
The X-direction length between vertical bars and the
Y-direction length between horizontal bars are displayed
beside a bar intersection point.
3 Move the measurement bars to the desired positions.
1 Tap [SELECT].
2 Tap and select a bar.
3 Drag the bar to the desired position.
You can move two crossed bars by dragging their
intersection.
4 Tap [CLOSE] to commit the operation.
Operations for XY measurement
Displayed measurement values
The unit and calibration settings are applied to the displayed measurement values. If you change the settings, the
measurement results are updated but the positions of measurement bar do not change.
Changes the
color.
Drag to move
a line
Drag to move a value
2
1
3-1
4
3-2 and 3-3
To Next Page
