Chapter 5 Using Menus
28
Please Read
First
5.1.3
Operating the VIEW Menu
You can perform operations on the DS-L4 from the menu screens.
Display the necessary menu screen from the LIVE or VIEW menu on the left side of the screen.

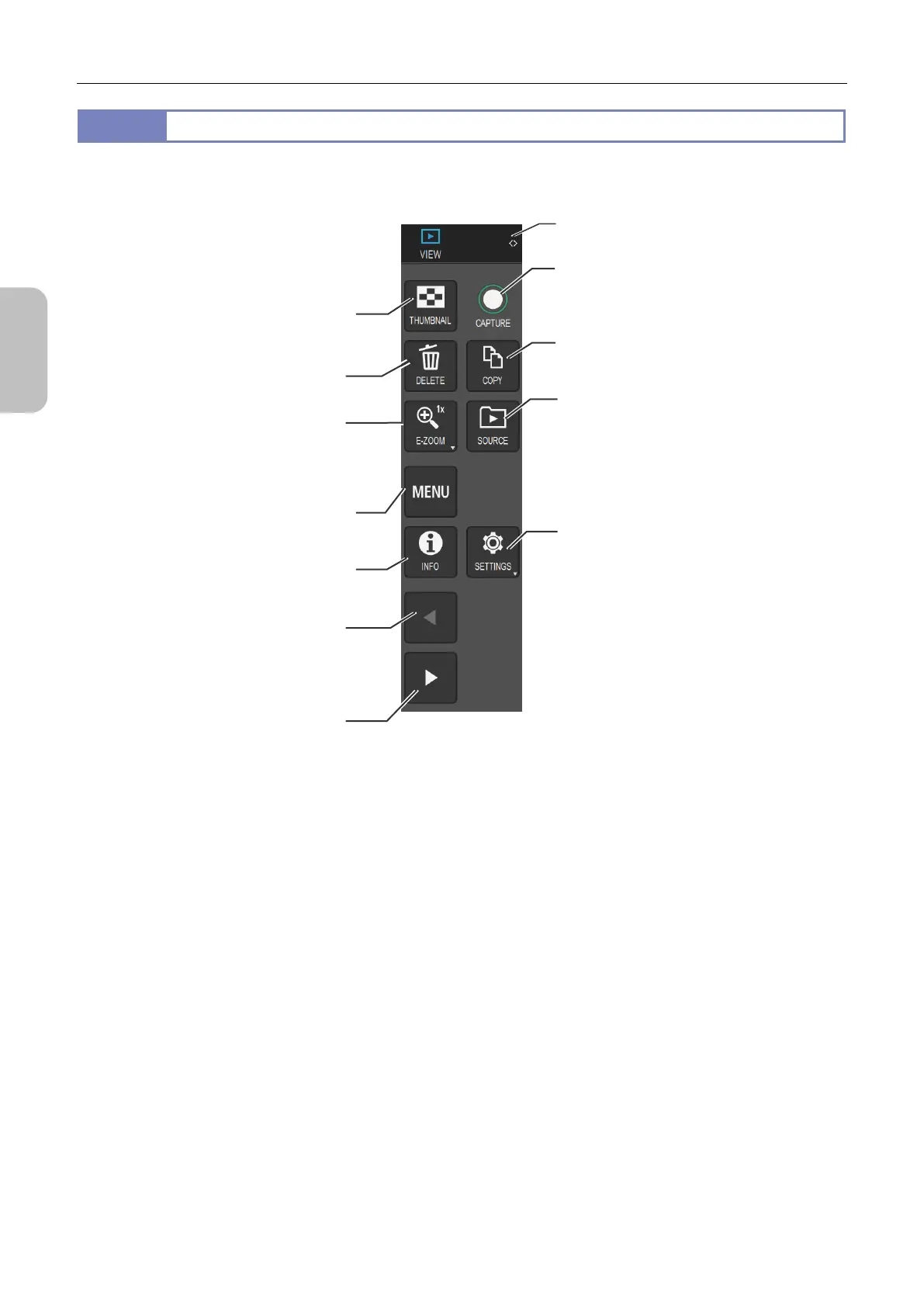

Items displayed in the VIEW menu
[MENU] button
Displays the MAIN menu.
[CAPTURE] button
This button re-captures the data of a displayed
image and saves it as a still image.
[E.ZOOM] button
Magnify the image. The selected magnification
is displayed on the button. The section to be
enlarged in the image can be changed.
[INFO] button
Displays the INFO window.
[DELETE] button
Deletes the selected image.
[COPY] button
Use this button to copy or move the selected
image.
[SOURCE] button
Use this button to specify or change the
playback folder.
[THUMBNAIL] button
Displays the thumbnails of the recorded
images.
[] button
Displays the previous image.
If the magnification of electronic zoom is
1x, you can also display the previous
image by swipe the screen to the right.
[] button
Displays the next image.
If the magnification of electronic zoom is
1x, you can also display the next image b
swipe the screen to the left.
Hides/shows the second menu column
[SETTINGS] button
Tapping this button displays the two buttons:
• [MENU POS] button
Switches the menu display position between left
and right.
• [DS SETUP] button
Allows you to set up the microscope.
• [MIC SETUP] button
Electrically controls motorized accessories of
the microscope from the DS-L4.
• [SHUT DOWN] button
Terminates the DS-L4 application.
