Chapter 5 Using Menus
23
Please Read
First
5
Using Menus
This chapter explains how to use the menus of the DS-L4.
5.1
Navigating through Screen Menus
This section explains the configuration of the DS-L4 operation menus, and includes some basics on how to use them.
5.1.1
Menu Configuration and Method of Displaying Menus

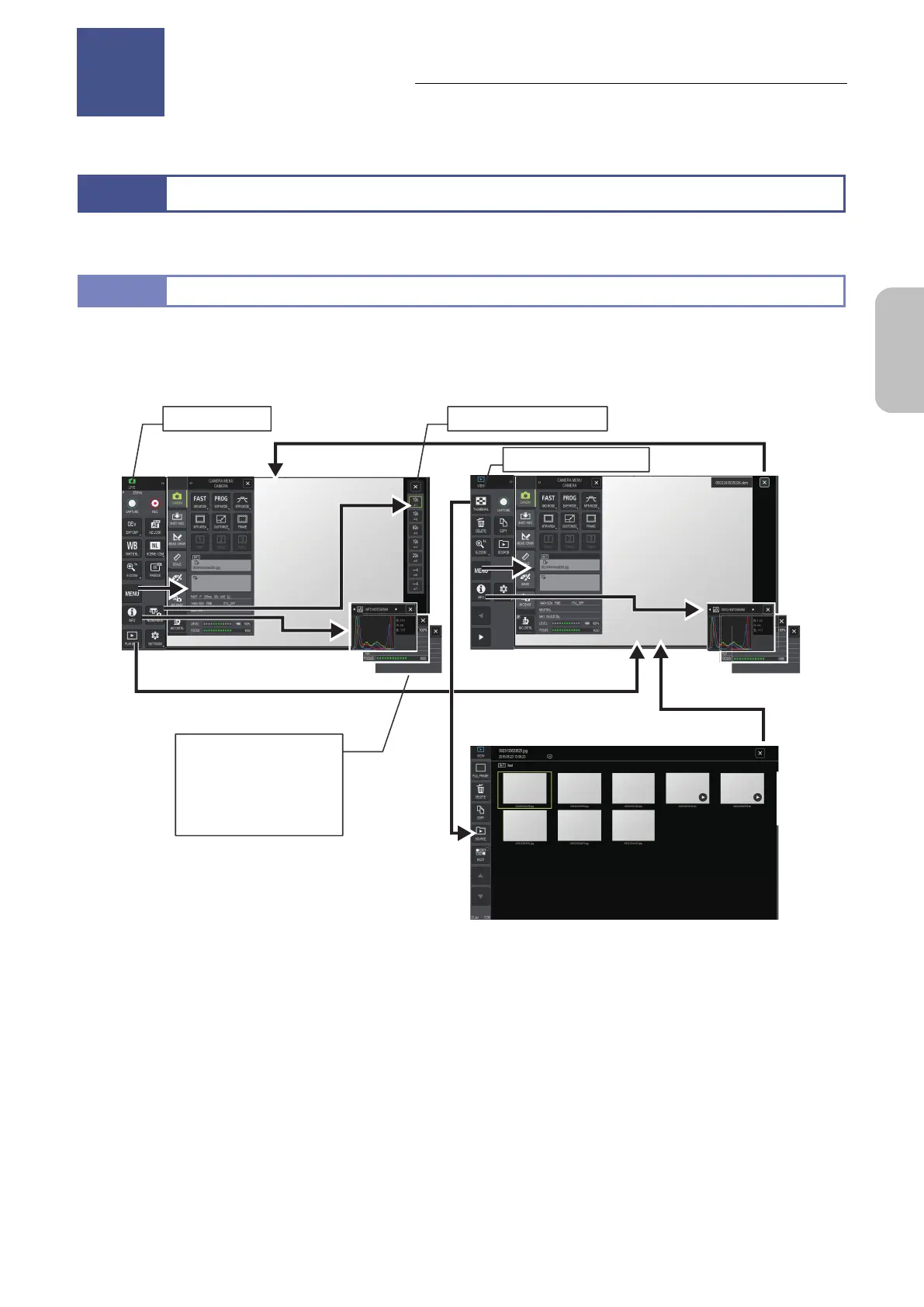

The configuration of the DS-L4 operation menus is illustrated below.
The LIVE menu or VIEW menu is displayed on the left side of the screen. Each button displayed in these menus displays
the respective menu screen.
(1) Live image
(7) INFO window
 [HISTOGRAM]
 [CAMERA]
 [MICROSCOPE]
(displayed if a microscope
is connected)
Using Menus
Chapter
5
(3) Playback image
(2) LIVE menu
(4)
V
IEW menu
(6) NOSEPIECE window
