Nikon DS-L4 User Manual

Chapter 3 Installation and Connection
12
Please Read
First
3.2.3
Connecting an external display
Video signals from the DS-L4 can be output to an external display connected to it.
Specifications of the external display
The display to be used must be a PC display supporting an output resolution of 1920 x 1200 pixels (WUXGA).
Because the microHDMI connector of the DS-L4 main body does not support output resolution of 1920 x 1200 pixels,
use the DisplayPort interface or analog display connector of the cradle.
1 Make sure that power to the DS-L4 and the external display to be connected is turned off.
2 Use a commercially available cable to connect the DisplayPort or analog display connector of the cradle with the
video input terminal of the external display.

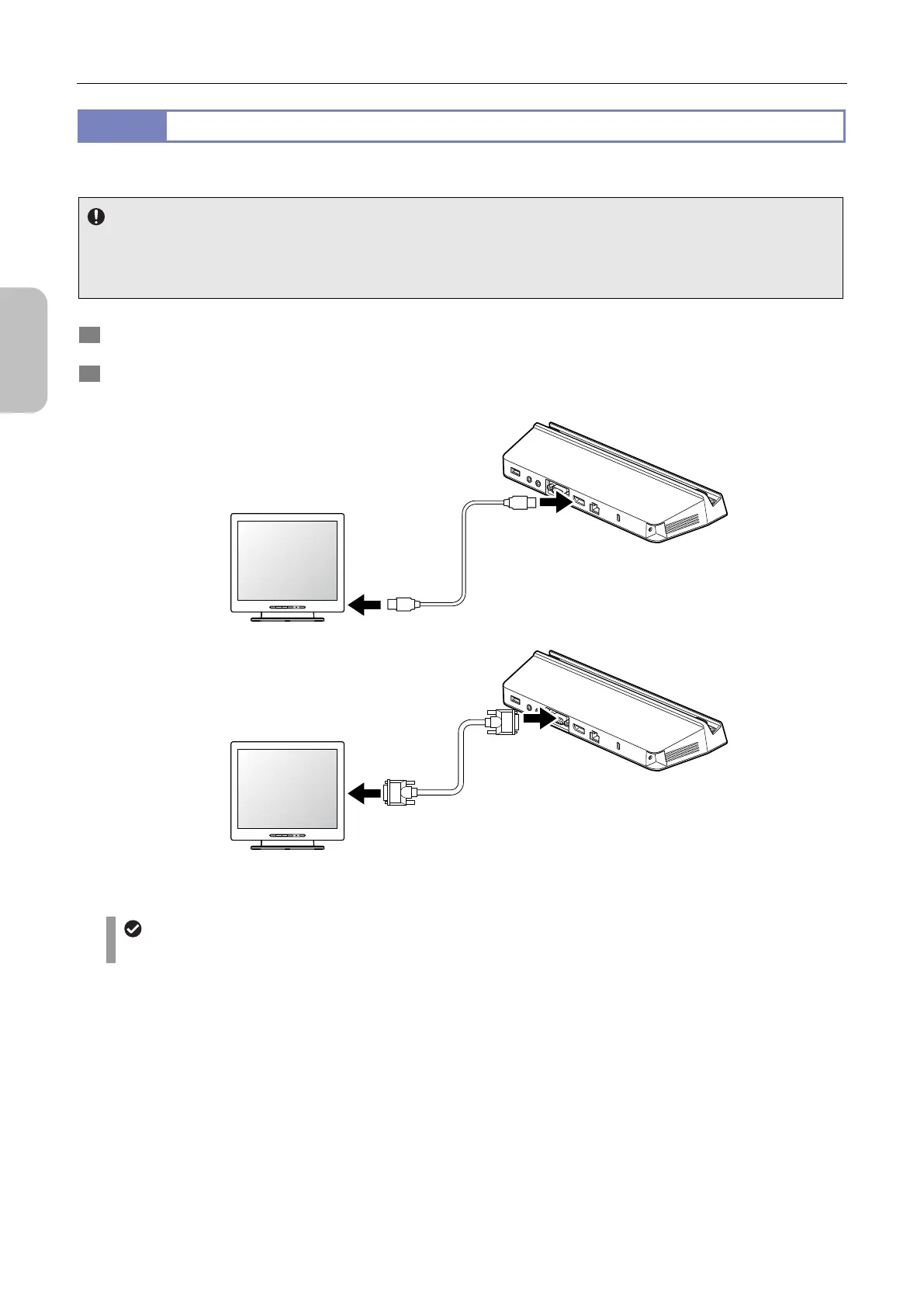

Connecting an external display to the DS-L4
About the external display connectors
The analog display connector and the DisplayPort connector cannot be used concurrently.
External display
To the DisplayPort
connecto
r
To the analog display
connector
External display
Cradle
Cradle
