Chapter 12 On-Screen Measurement
127
Scale, Annotation,
and Measurement
Functions
12.2.3

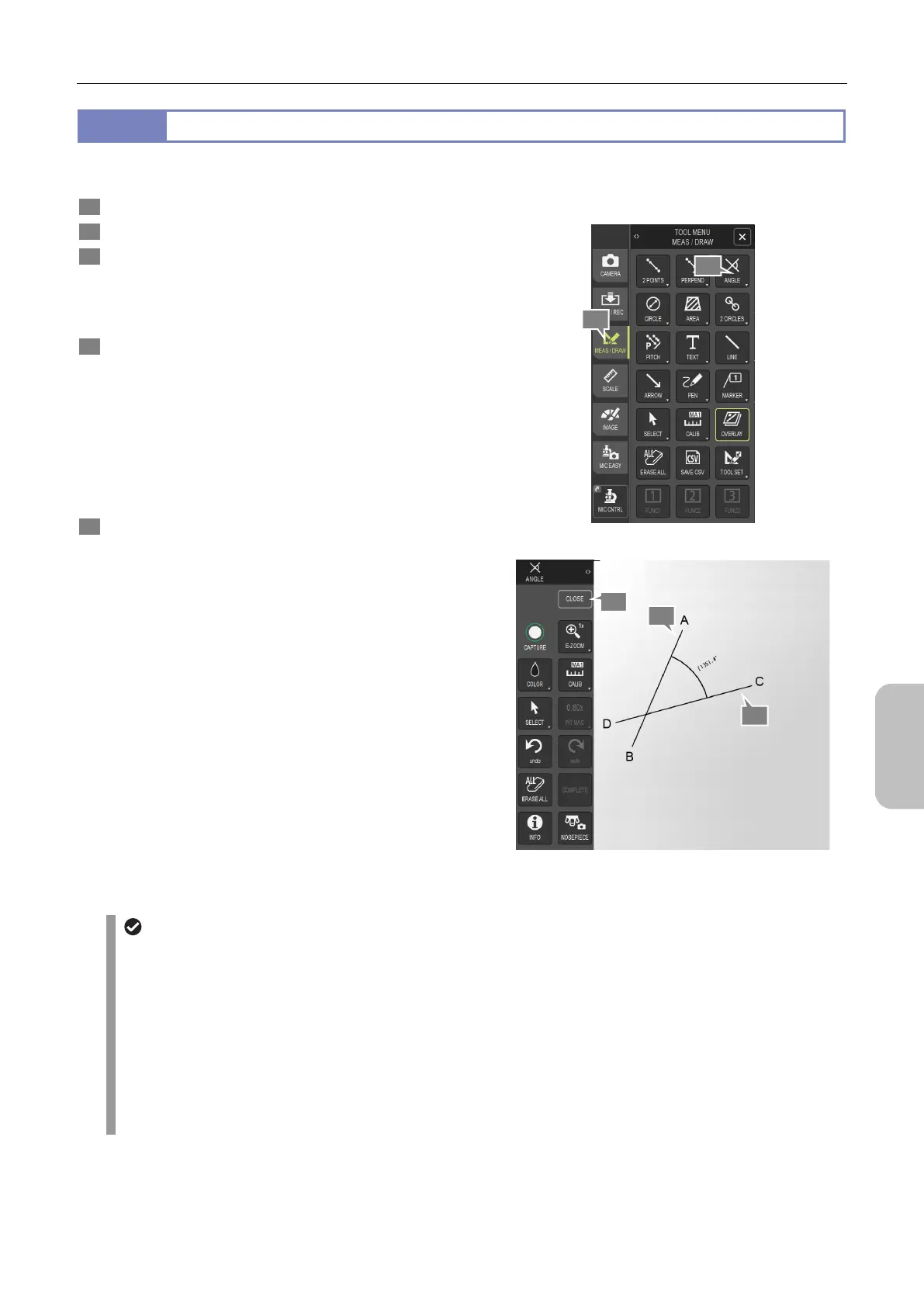

Measuring an Angle
You can measure an angle between two straight lines drawn on the screen. To do this:
1 Display the [TOOL MENU: MEAS/DRAW] screen.
2 Tap [ANGLE].
3 Specify two arbitrary points (A and B in the figure) on
the screen so that the first line is drawn.
The two points you specify become the starting and end
points of a line.
4 Specify two arbitrary points (C and D in the figure) on
the screen so that the second line is drawn.
When the second line is drawn, the angle between two lines
is displayed.
In cases such as if the two lines are completely overlapped
or parallel, the angle cannot be measured and "NG" is
displayed.
To continue measurement, repeat steps 3 and 4.
5 To terminate measurement, tap [CLOSE] to redisplay the
[TOOL MENU: MEAS/DRAW] screen.
Measuring an angle
Adjusting measurement results
After measuring an angle, you can adjust the measurement result. To do this:
(1) Tap [SELECT].
(2) Select a desired measurement result.
(3) Adjust the measurement result.
- You can move the displayed value of a measurement result by mouse dragging.
- You can move scale lines by mouse dragging.
- You can resize or rotate a scale line by mouse-dragging a line end point.
(4) To redisplay the [ANGLE] menu, tap [X] in the [SELECT] menu.
3
4
2
1
5
