1-26
Installation 15088:J 10/22/99
DP-1

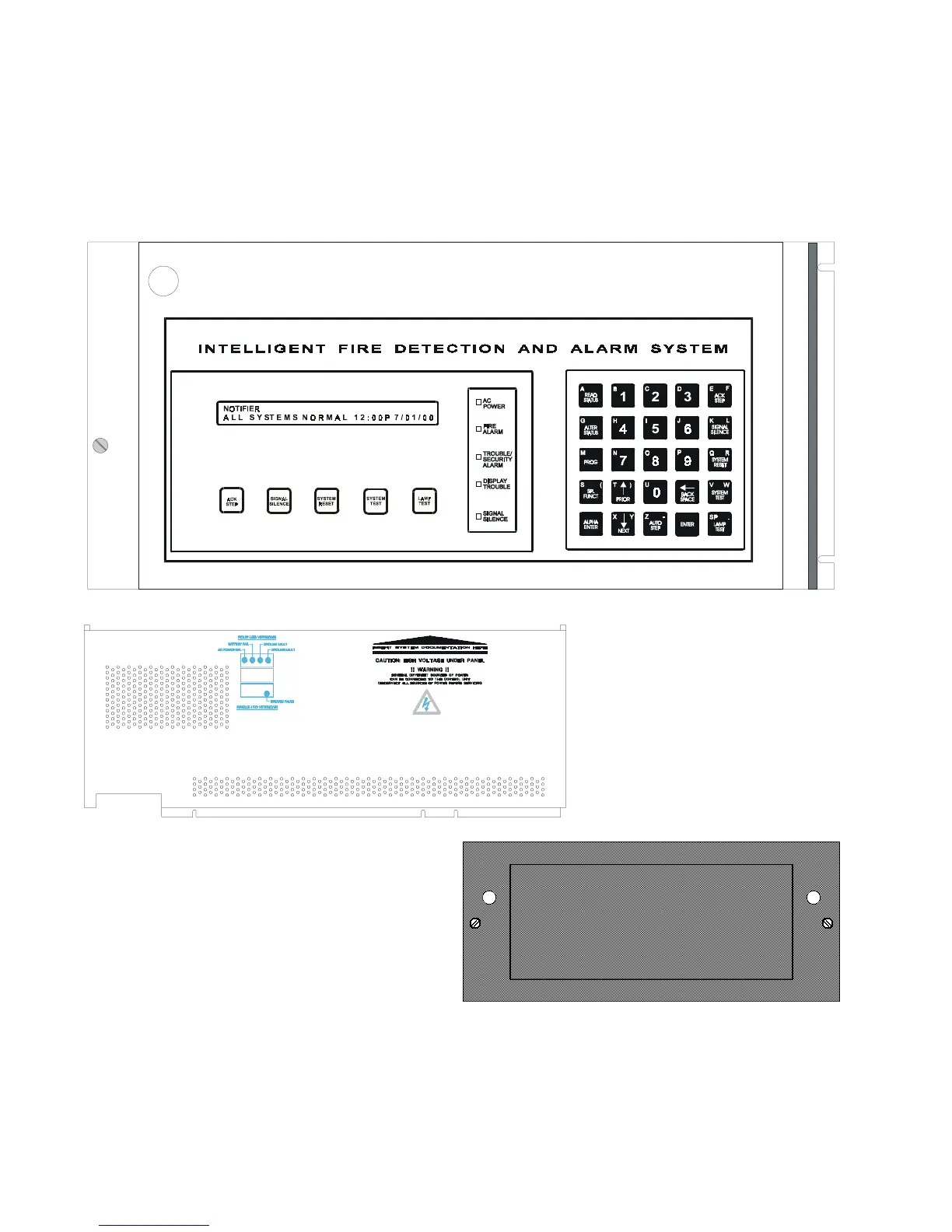

The Dress Panel (DP-1) covers additional ICA-4L
or CHS-4/4L assemblies in the cabinet.
BP-3
The Battery Dress Panel (BP-3)
covers the Main Power Supply and
the batteries in the cabinet. Only
one BP-3 is required per system.
Section 2.6 Other Components
Display Interface Assemblies
The Display Interface Assembly (DIA) includes a backlit Liquid Crystal Display (LCD), operator keypad, the
Display Interface Board (DIB), hinged dress panel, and the CPU to DIB cable. Only one DIA is required per
system. The DIA-2020 is included with the BE-2020N Basic Equipment Package for the AM2020. The DIA-1010
is included with the BE-1010N Basic Equipment Package for the AFP1010. Figure 2.6-1 shows elements visible
from the cabinet front. Note that the DP-1 dress panel is not included in the BE-1010N or BE2020N.
Figure 2.6-1 Intelligent Fire Detection and Alarm System
