1-89
Installation 15088: J 10/22/99
SIB-2048A
or
SIB-NET
Keltron Printer
Model VS4095/5
50 feet (15.24 meters)
maximum
(typical)
Wiring distance limited by
cable capacitance. See
EIA-232E standard.
Main Power Supply

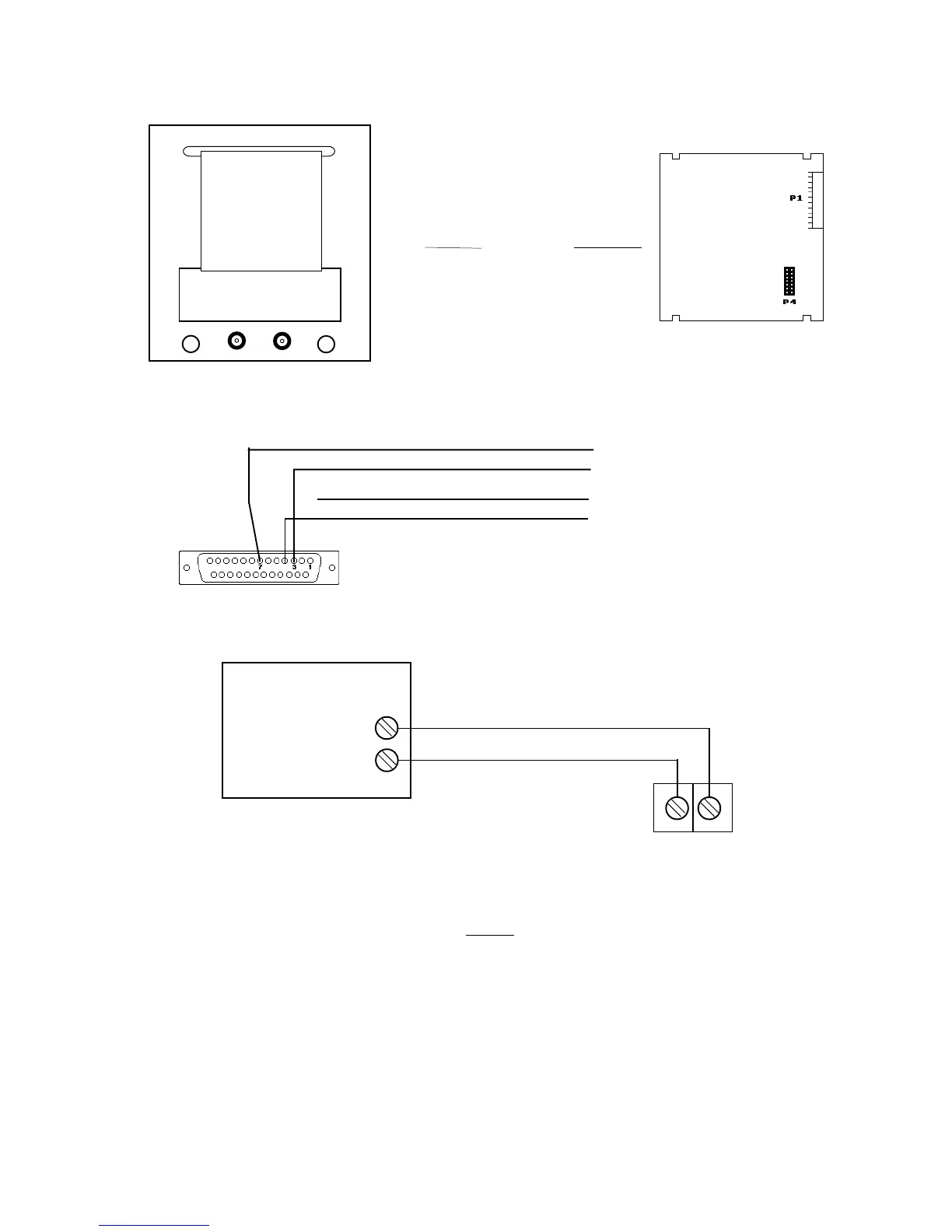

Figure 5.3-2 Keltron Printer Connections
NOTES
• Outputs are power limited and are not supervised.
• Connections must be made with overall foil/braided-shield twisted paired cable suitable for EIA-232 applications.
• The SIB can employ two printers.
• Set the DIP switches as follows:
SP1-1 OFF SP2-1 OFF
SP1-2 ON SP2-2 OFF
SP1-3 OFF SP2-3 OFF
SP1-4 ON SP2-4 OFF
SP1-5 OFF SP2-5 OFF
SP1-6 ON SP2-6 OFF
SP1-7 ON SP2-7 ON
SP1-8 OFF SP2-8 OFF
TB3- 3 (+)
and
TB3-4 (-)
Keltron Remote Printer
Model VS4095/5
SIB Connector P3
(Power-limited)
Twisted Pair
Twisted Pair
EIA-232 Reference
Transmit to Printer
EIA-232 Reference
Ready/Busy
from Printer
nc
4
Plug this DB-25 connector into the
EIA-232 Port of the printer.
+ DC IN
DC IN -
5
6
7
8
Power-limited
MPS-24A:
