1-49
Installation 15088:
J 10/22/99

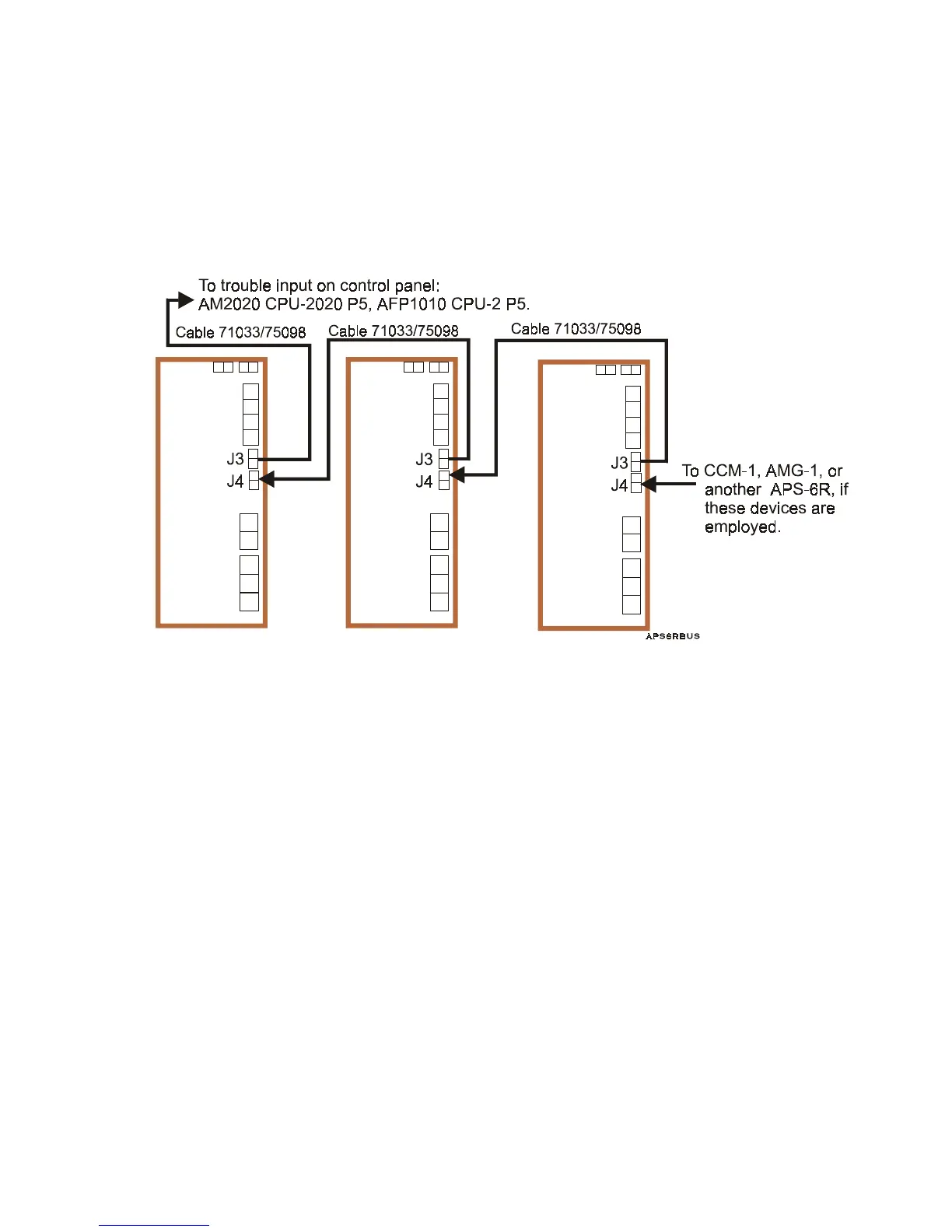

Connecting Multiple APS-6R Power Supplies
Figure 3.6-4
shows typical trouble bus connections for multiple APS-6R power supplies using trouble connec-
tors J3 and J4.
Notes:
1. Use Cable 71033 or 75098 (same cables, different lengths) for all wiring.
2. APS-6R J3 and J4 can be interchanged.
Figure 3.6-4
Trouble
Bus Connections
for
Multiple
APS-6R Power Supply
Configuration
