Notifier AM2020 User Manual

1-55
Installation 15088: J 10/22/99

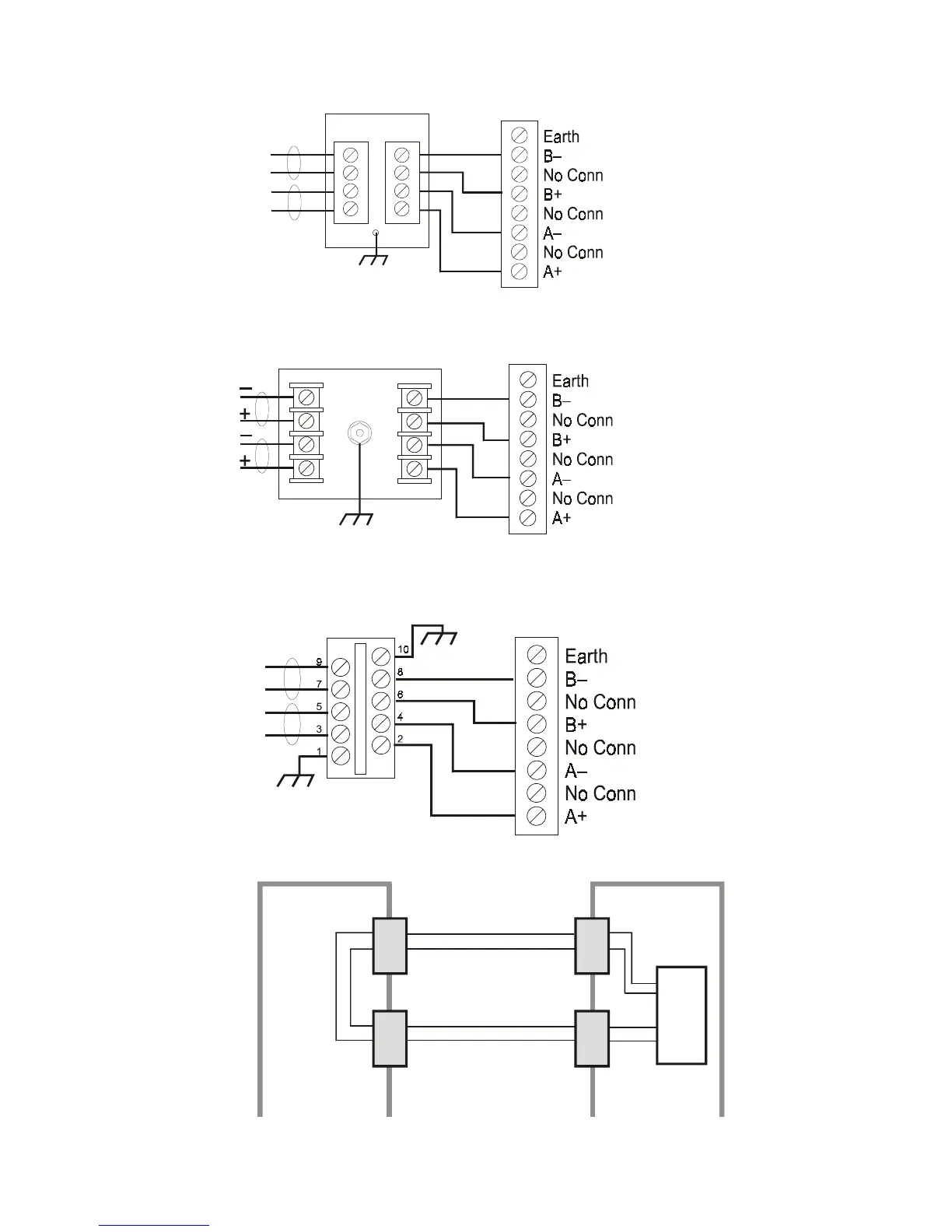

DTK-2LVLP-F Connections
IN OUT
2LVLP-F
–
–
+
+
2LVLPconn3.cdr
SLC Terminal Block
Note: Do not connect shield to surge protector or fire panel.
PLP-42N Connections
INPUT
OUTPUT
PLP-42N
L1 L2 L3 L4
L1 L2 L3 L4
GRND
SLC Terminal Block
PLP-Nconn3.cdr
PLP-42N Connections
Note: Use 12 AWG (3.25 mm
2
) to 18AWG (0.75 mm
2
) wire with crimp-on connectors to connect the unit's ground terminal to
equipment ground. Wire length must be minimized to provide best protection. Do not connect shield (if present) to surge
protector or fire panel.
IN OUT
S
L
C
P-30
+
+
–
–
SLCP-30conn3.cdr
Building Entry/Exit Connections
OUT IN
IN OUT
IN OUT
OUT IN
FACP
Surge Suppressor
Buildin
g
#2
Buildin
g
#1
SS-building.cdr
SLC Terminal Block
SLC
SLC
SLC
Figure 4.2-3 Surge Supressor/FACP Connections
