1-59
Installation 15088:
J 10/22/99
Connect to
chassis via
Cable 71073
LIB
SLC Loop
Ear
th Ground
Channel B (-)
no connection
Channel B (+)
no connection
Channel A (-)
no connection
Channel A (+)
Modules
Detectors

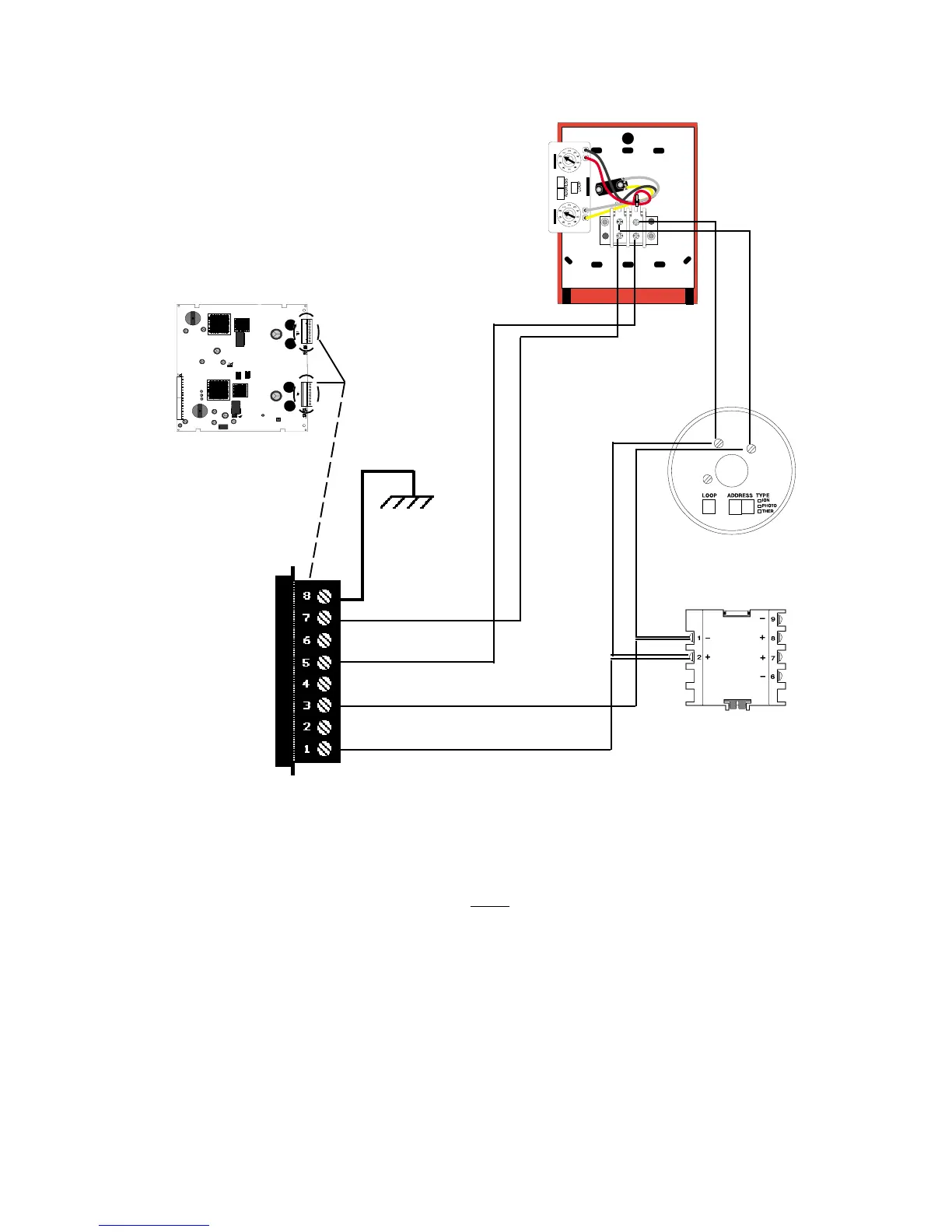

Figure 4.3-4 NFPA
Style 6 LIB
SLC Loop
Functions in accordance with NFP
A Style 6 SLC
Pull Stations
All terminals are power-limited
2(+)
1(-)
NOTE
Refer to Appendix A and installation drawings supplied with each loop device for rating and specification information.
LIB-400
www.PDF-Zoo.com
68
70
Table of Contents
Fire Alarm System Limitations
2
Installation Precautions
3
Chapter One Installation
4
Installation
4
Table of Contents
7
Capabilities and Capacities
13
Voice Evacuation Functions
13
Audio Amplifier Power
13
Notification Appliance Power
13
Fire Alarm and Related Service Standards
14
Installation Overview
15
Basic Equipment
15
Related Documentation
15
Cabinet Selection and Component Installation
17
Product Line Information
17
Prior to Installation
17
Left Mount
17
Mounting the Backbox
18
Cabinet Backbox Mount
18
Door Assembly Instructions
19
CAB-3 Series Backboxes
21
Cab-A3
21
Cab-C3
21
Cab-B3
22
Cab-D3
22
Mounting the ICA-4L
23
ICA-4L 16 Position Receptacle Connections
23
Power Cable Part Number 75378
23
Using the Optional Expansion Power Cable
24
Expansion Power Cable Part Number 75379
25
ICA-$L 15 Poisition Receptacle Connections
25
Cable Part Number 75142
26
Cable Part Number 75142 Connected to the ICA-4L
26
Mount System Boards to the ICA-4L Chassis
27
Component Placement
28
Cabinet Size Information
28
Component Placement Guidelines
28
AFP1010 LIB SLC Numbering Scheme
29
AM2020 LIB SLC Numbering Scheme
30
LIB-400 Placement in an AFP1010
31
LIB Placement Example in an AFP1010
32
LIB-400 Placement in an AM2020
33
LIB Placement Example in an AM2020
34
Optional Chassis Mounting
35
Display Interface Assemblies
36
Intelligent Fire Detection and Alarm System
36
Display Interface Connection
37
Display Interface Assembly (DIA-1010/DIA-2020) Viewed from the Rear
37
Depicts Typical System Cable Placement
38
Wiring Placement Diagram
38
Power-Limited and Non Power-Limited Wiring
39
Dress Panel Placement Diagram
40
Mounting the MOD-1 Module Plate
41
Mounting the MOD-1 into the CHS-4 and CHS-4L Chassis
42
Power Supplies
43
The AC Primary Power Input
43
The MPS-24A or MPS-24AE Main Power Supply
43
Maximum Secondary Power Fire Alarm Current Draw
47
Battery Testing
48
Battery Size Requirements
48
Mount the Main Power Supply
49
The MPS-TR Main Power Supply Monitor
50
Test of Ground Fault Detection Circuit
50
Monitoring Remote Power Supplies
50
MPS-TR Installation
50
Mounting the MPS-TR
51
System Common Terminal Connection
51
Connecting the Main Power Supply
52
Connecting Primary AC Power
52
Connecting the Secondary 24V Power Source
52
Earth Ground Fault Detection
52
Nvrams
53
Field Wiring the MPS-24A or MPS-24AE Power Supply
54
The Optional Main Power Meter
55
Installation of the Main Power Meter
55
The CHG-120 Remote Battery Charger
56
Connecting the Primary Power Source
56
Connecting the Secondary Power Source
56
The APS-6R Auxiliary Power Supply
57
CHG-120 Connections
57
Field Wiring an APS-6R
58
Cover Installation
58
Mounting the APS-6R to a Chassis
58
Typical APS-6R Wiring
58
Connecting Multiple APS-6R Power Supplies
59
The Central Processing Unit
60
CPU Alarm and Trouble Contacts
60
Signaling
61
The LIB Signaling Line Circuit
61
Isolator Modules and Bases
61
Monitor Modules
61
The Loop Interface Boards
62
Lib-200A
63
Lib-400
63
New LIB Features
63
Surge Suppression
64
Suppressor Installation
64
Loop Interface Boards
64
DTK-2LVLP-F Connections
65
PLP-42N Connections
65
Building Entry/Exit Connections
65
LIB SLC Loop Wiring Requirements
66
Branch Resistance
66
Typical NFPA Style 4 SLC Loops
68
Typical NFPA Style 6 SLC Loops
69
NFPA Style 7 SLC
70
SLC Shield Termination
71
The Isolator Module
73
The Loop Isolator Module
73
Isolating a Branch of a Style 4 SLC
73
Isolating the Remainder of a Style 4 SLC
73
Device Loading and Isolator Power up
74
SLC Loop Connections
75
NFPA Style B Initiating Device Circuit
75
NFPA Style D Initiating Device Circuit
75
The MMX-101 Monitor Module
75
24V DC Four-Wire Smoke Detector Power
77
The Control Module
80
The CMX Control Module
80
Breaking Tabs
80
Contact Connections
80
Providing Power to Control Modules
81
Power Distribution
82
NFPA Style y Notification Appliance Circuit
83
NFPA Style Z Notification Appliance Circuit
84
Using the CMX as a Form-C Relay
85
Typical APS-6R Wiring to a CMX Module
85
The Addressable Manual Pull Station
86
Wiring Addressable Pull Stations
86
Intelligent Detectors
87
Sdx-551/Sdx-551Th
87
Cpx-551
87
DHX-501 and DHX-502
87
Smoke Detector Installation
88
Wiring the Smoke Detector Base
88
Wiring the B524RB Relay Base
89
Two Independent Style 4 SLC Loops
90
The XP Series Transponder
91
XP Dress Panel and XPP-1 Module
91
XPC-8 Control Module (Power-Limited)
92
XPM-8/XPM-8L Monitor Module (Power-Limited)
92
XPR-8 Relay Module (May be Power-Limited or Nonpower-Limited Depending on Relay Connection)
92
Serial Communications
93
Optional Serial Interface Boards
93
PRN Printers
93
Cabling and Connections
93
Shield Terminations
94
Guidelines for Terminating the Shield
94
SIB-NET/SIB-2048A Terminal Designations
95
The CRT-2 Terminal
96
Primary and Secondary Power
96
Multiple Terminals
96
CRT Function Keys
96
CRT to SIB Connections
97
Remote Printers
98
Printer Configuration
98
Keltron Printer Connections
99
Annunciator Modules
100
EIA-485 to SIB Connections
101
Standard-Specific Requirements
102
NFPA 72 Protected Premises (Local) Fire Alarm Systems
102
Ul 916
102
NFPA 72 Auxiliary Fire Alarm System
102
NFPA 72 Proprietary Supervising Station Fire Alarm System
103
NFPA 72 Auxiliary Fire Alarm Systems
104
Auxiliary Fire Alarm System
104
Generating Event-Pending Signals at a Remote Location
105
Supervising an Uninterruptable Power Supply
106
Fire Alarm, Security Alarm, and Trouble Signal Transmission
107
Fire Alarm and Trouble Signal Transmission
109
Applying/Removing Power to the Fire Alarm System
110
Chapter Two Operation
111
About the Operation of the Panel
112
Introduction
112
About the Passwords
113
About the Software
113
About Addresses
114
SLC Loop
114
About the Backspace Key
114
About Entering Alphanumerics
115
About Walk Test
115
About the Display Time
116
About the Print Time
116
About Priorities
116
About System Test
117
About Periodic Test
117
The Display Interface Assembly
118
Normal Operation
118
Section One
118
Read Status
120
Display System Configuration
121
Point Read
124
Detectors
124
Detector Verification
124
Control Modules
125
Software Zones
125
Annunciator Points
126
Special Status
126
Prior/Next/Auto Step
127
Section Two
127
Reports
128
Section Three Special Function
128
The History File
130
Fire Alarms
132
Section Four
132
Acknowledging a Fire Alarm
133
Troubles
134
Section Five
134
Trouble
135
Trouble
136
Block Acknowledge
137
Displaying Current Alarms and Troubles
138
Section 5.5A Acknowledging Troubles in Receiving Unit Mode
138
Remote Peripherals
139
Local Applications
139
Receiving Unit Applications
139
The Printer
139
Section Six
139
Cat. Comm. Fault
140
Cat. Fail. Incompatible Software or Invalid Cbe
140
Det Failed Test
140
Section Seven Trouble Messages
140
Low Chamber Val
141
Maintenance Req
141
Pre-Alarm Alert
141
Drift Compensation
142
Section Eight
142
Menus
145
Passwords
145
Backspace Key
145
About Transponder Rapid All-Call
145
About SIB-NET
146
The Initial Programming Outline
147
Main Programming
149
Main Programming Menu Flow Chart
150
Partial System Programming
151
Partial System Programming Submenu Flow Chart
152
LIB Installation
153
Install Option Flow Chart
153
Style Option Flow Chart
153
Time Delays
154
Time Delay Option Flow Chart
154
Enabling the Trouble Bus
155
Zone Boundary
155
General Considerations
155
External Equipment
156
LED Latching
158
Default Latching
158
Optional Latching for more Devices
159
Local Parameters
160
Local Parameters Option Flow Chart
160
General Operation of the Piezo Sounder
161
Local Mode Operation
162
Extended Local Mode Operation
162
Extended Local Mode Categories and Software Type Ids
162
NFPA Listings
163
Pre-Alarm Function
163
Intelligent Serial Interface Board Programming
164
Day/Night Sensitivity
168
Detector Verification Trouble
168
SACM/SEQM Module Reporting
168
Modem
169
Nam
169
Rapid Polling
169
Supervisory Module ACS Reporting
169
Full System Programming
170
Partial Point Programming
172
Type ID
173
Partial Point Programming Flow Chart
173
Control-By-Event
174
Label
174
Optional Features
175
Optional Features Flow Chart
175
Annunciator Mapping
176
Annunciator Mapping Option Flow Chart
176
Cooperative Control-By-Event
177
Full Point Programming
178
Full Point Programming Flow Chart
178
Remove
181
Password
181
Message
181
History Mode
182
History File Option Flow Chart
182
The Alter Status Menu
185
Disable Point
186
Alter Status Menu Flow Chart
186
Control Module
187
Detector Sensitivity
187
Time
187
Diagnostics
188
Walk Test
188
Walk Test Option Flow Chart
189
Smoke Detector Activation During Walk Test
191
Printout of an AM2020/AFP1010 Walk Test Report
192
Group Zone Disable
193
Software Type Ids
194
Output Modules
195
Alarm Initiation Modules
196
Supervisory/Security Modules
197
Evacuation Modules
198
Annunciator Control
198
Annunciator Zone
198
Annunciator Detector
198
Annunciator Output
199
Annunciator Telephone
199
Annunciator Supervisory
199
Trouble Module
199
Annunciator Manual Mode
200
Control-By-Event Programming
201
Forward-Activating Zones
201
Lists and Equations
201
Control-By-Event Programming Constraints
202
Operators
203
Or
203
And
203
Not
204
Xzone
204
Del
205
Sdel
206
Tim
206
Operators
206
Size Limitations
207
The Null Control-By-Event
209
Cooperative Control-By-Event
209
Programming Examples
210
Dual Stage Alert/Evacuation
214
Chapter Four Security
215
Installing and Programming Combination Fire/Security Fire Alarm Systems
217
Monitor and Control Module Codes
217
Section One
217
Introduction
217
1.2 General Security Requirements
217
Placement of Security Devices
218
Building Perimeters
218
Security Configuration - Specific Requirements
218
Interior Spaces
219
Zone Numbering
220
Zone Numbers - One Set of Zones
220
Zone Numbers - Two Sets of Zones
220
Security System Diagrams and Programming Keys
221
Simplest Security System
221
Central Station
221
Multiple Tenant Simple Security System
222
Central Station
222
Single Tenant Consolidated Security System
224
Multiple Tenant Consolidation Security System
226
Single Tenant Security System with Entry/Exit Delay
227
Zone Programming
228
Connecting an RKS-S Remote Keyswitch
230
Connecting an MMX-101 Module to the RKS-S
230
Connecting an MMX-1 Module to the RKS-S
230
Multiple Tenant Security System with Entry/Exit Delay
231
Central Station/Protected Premises Unit Wiring
233
Single Tenant Security System with Ringback
233
Notification Appliance W/CM Control Module
239
CMX Control Module for Ringback
240
Installing an STS-1 Security Tamper Switch
240
Connecting an STS-1 Switch to an MMX-101 Monitor Module
241
Connecting an STS-1 Switch to an MMX-1 Monitor Module
241
Multiple Tenant Security System with Ringback
242
System Requirements
243
Appendices
245
Design Considerations
247
Wiring Selection Chart
247
Appendix Acircuit/Device Ratings
247
Appendix B Listed Equipment
253
Factory Mutual
254
Lloyd's Register
255
United States Coast Guard
256
Optional System Components
257
City of New York
258
Programming Sheets & Glossary
259
Programming Sheets
259
Glossary of Terms and Abbreviations
264
Limited Warranty
267
Other manuals for Notifier AM2020
User Manual
268 pages
Manual
12 pages
Operator Instructions
1 page
Operation And Installation Manual
14 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Notifier AM2020 and is the answer not in the manual?
Ask a question
Notifier AM2020 Specifications
General
Brand
Notifier
Model
AM2020
Category
Fire Alarms
Language
English
Related product manuals
Notifier AFP-200
120 pages
Notifier AFP-100
100 pages
Notifier AFC-600
98 pages
Notifier AFP1010
268 pages
Notifier ACM-24AT
3 pages
Notifier ACM-16AT
100 pages
Notifier ACS Series
3 pages
Notifier RP-1001
48 pages
Notifier NFS-640
88 pages
Notifier ONYX Series
9 pages
Notifier ID50 SERIES
56 pages
Notifier ID60 SERIES
56 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
