Omron NX-SID Series User Manual

NX-series
CPU Unit
*1
Safety
CPU Unit
NX-SL5£££
EtherCAT
EtherCAT slaves, such as
servos, vision systems, and
I/O, NX-series Safety I/O
Units
EtherCAT slaves, such as
servos, vision systems, and
I/O, NX-series Safety I/O
Units
Standard
Controller
Sysmac
Studio
EtherNet/IP
NX-series
CPU Unit
*1
Safety
CPU Unit
NX-SL5£££
EtherCAT
Safety control
between
automation
system
Safety control within
automation system
Safety control within
automation system
*1. Refer to A-17 Version Information on page
A - 105 for the model numbers and unit versions of the applicable
NX-series CPU Units.

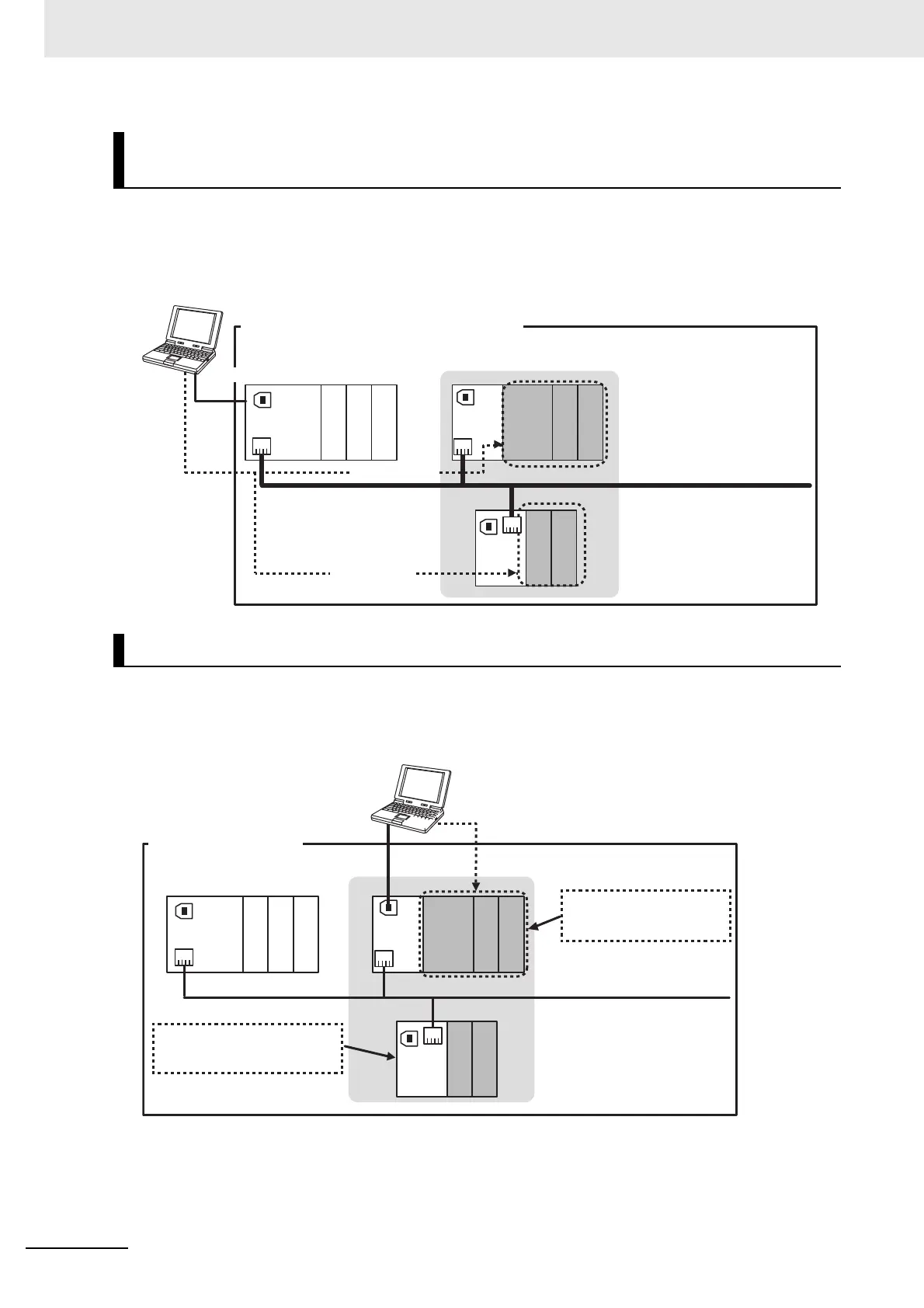

This system enables the safety controls between respective automation systems upon building up
each automation system that has the safety control built around EtherCAT which feature high speed
and high precision.
Additional Information
CIP Safety on EtherNet/IP communications are only available for the combination where an NX-
SL5£££ Unit is connected to an NX-series
CPU Unit or to a Communication Control Unit. It
cannot be used with NX-SL3£££ Units.
Standalone Safety Control System
The NX-SL3300 Unit is used connected to an EtherNet/IP Coupler Unit to achieve safety controls in a
Slave Terminal.
The Safety Control Unit
performs remote I/O communications with a standard controller through an
EtherNet/IP Coupler Unit.
1 Overview
1 - 4
NX-series Safety Control Unit User's Manual (Z930)
