Onan MicroLite 4000 Series User Manual

8-3
EXS1170-5s
HANGER BRACKET
(IF REQUIRED DUE TO
LENGTH OF TAILPIPE)
SHORT RADIUS
ELBOW
TAILPIPE
UBOLT CLAMP
SUPPORT
EXS1170-7s
SPEC A MODELS
BEGIN SPEC B MODELS
TAILPIPE
SUPPORT
SUPPORT

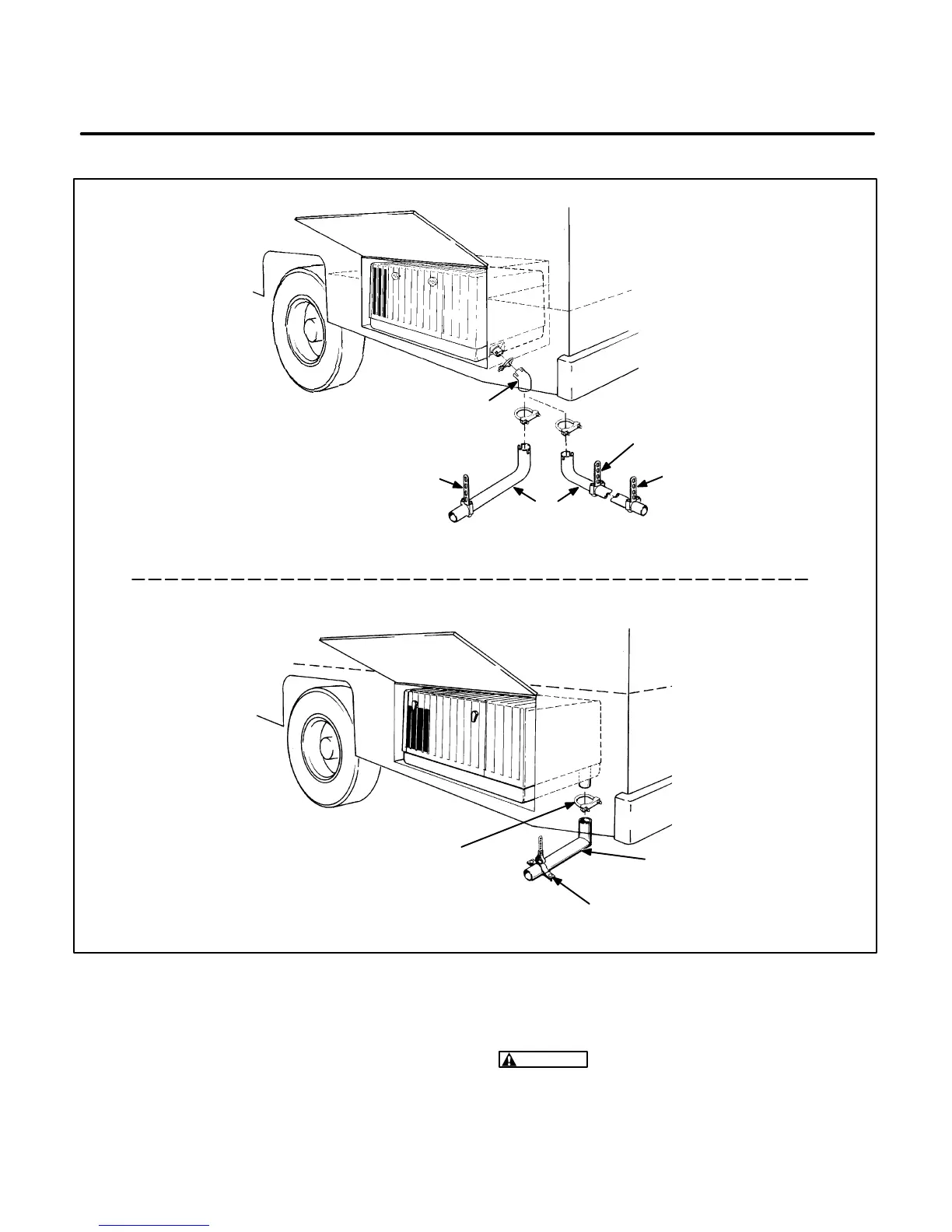

FIGURE 8-2. COMPARTMENT MOUNT EXHAUST SYSTEM
Muffler Assembly
Obtain the required replacement parts including a
new exhaust gasket. Install the muffler in reverse
order of removal.
1. Install a new exhaust gasket. Secure the
mounting hardware to the specified torque.
WARNING
Exhaust gas can cause severe per-
sonal injury or death. To prevent exhaust leaks,
always install a new exhaust gasket, and re-
place corroded or worn clamps, straps, and
hardware before leaks occur.
