108
Lead in from
the side
Front view
Bottom view
Side view
Lead in from
the bottom
Lead-in from the front
Lead in from
the side
Lead in from the side
Lead in from
the bottom
Lead in from the bottom
Lead in from the bottom
4.11 Cable Cover: PDA-P01
4.11.1 Specifications
External dimensions ................. 754 (W) × 123.9 (H) × 45.5 (D) mm
(29-11/16 (W) × 1-13/16 (H) × 4-7/8 (D) in.)
Weight ....................................... 225 g (0.50 lbs.)
Materials .................................... ABS
Dimensions of packaging......... 771 (W) × 59 (H) × 151 (D) mm
(30-11/32 (W) × 2-5/16 (H) × 5-15/16 (D) in.)
Package weight......................... 0.7 kg (1.5 lbs.)
Accessories
Cable cover ............................................................× 1
Clips .......................................................................× 4
Operating instructions ............................................ × 1
(Note) Refer to procedure 2 on Page 94 to install the PDP-433CMX/PDP-433MXE with ceiling suspension hard-
ware (PDK-5012).

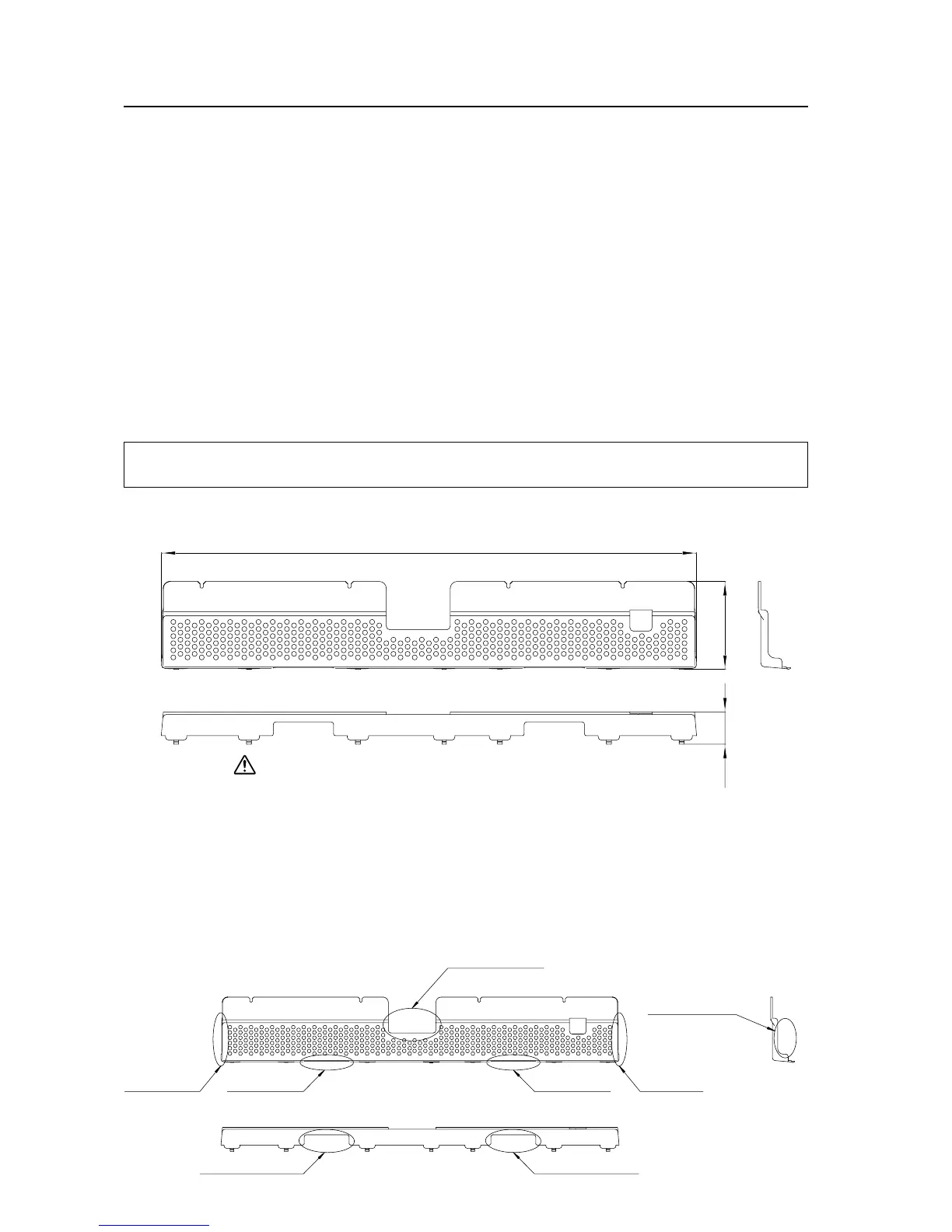

4.11.2 External Dimensions
(Units: mm)
Cable Cover: PDA-P01
45.5
123.9
754
4.11.3 Cautions
1. This cable cover was exclusively designed for plasma displays produced by PIONEER.
2. This product is important for the assembled display’s external appearance.
The cover keeps cables organized when numerous input and output cables are connected.
4.11.4 Cable lead-in locations
When the cable cover is attached to the plasma display, you can lead in the cable from a total of 5 locations: 1 on the
front, 2 on the sides, and 2 on the bottom.
Choose the cable lead-in location suitable for the way the way the display is used.
[503CMX/503MXE : 433CMX/433MXE]
To Next Page
