95
Plasma Display Ceiling Suspension Hardware: PDK-5012
5°
10°
15°
20°

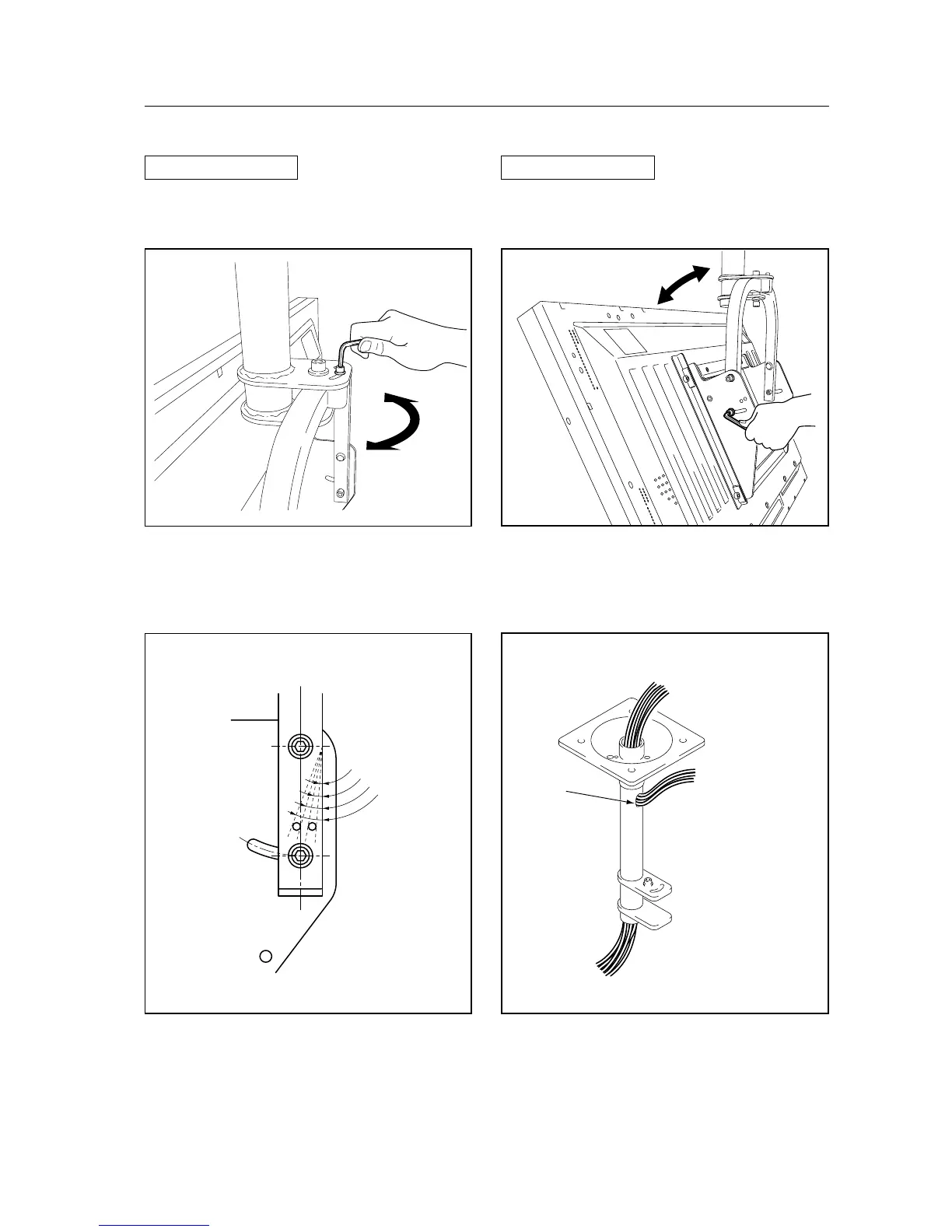

4.8.5 Angle setup
Left-right Adjustment
You can adjust it 45° to the left or right by loosening the
top screw.
Set the desired angle, then tighten the screw.
Vertical Adjustment
You can adjust its vertical angle by loosening the screws
on the left and right sides. (You can adjust it a maximum
of 25° downwards from the vertical position.)
Set it to the desired angles while supporting the plasma display and retighten the loosened screws on the left and right
sides. The hole on the side indicates the angle. (5° units).
Detailed Angle Standard Diagram
Connecting cable
(when coming out of the top
of the supporting column)
Connecting cable
(when coming out of
the hole)
To the connector on the plasma display
Hole
[503CMX/503MXE : 433CMX/433MXE]
To Next Page
