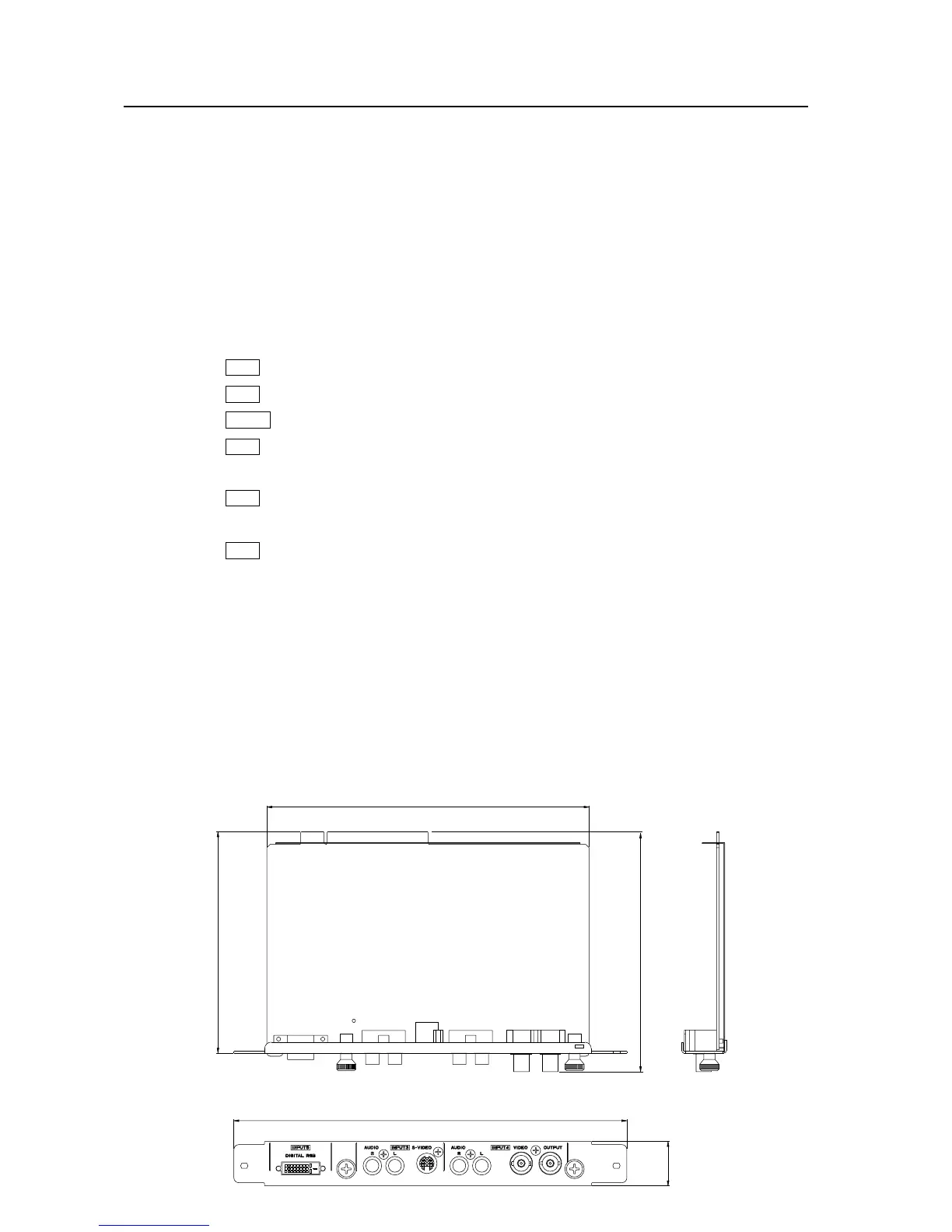

4.4.2 External Dimensions
(Unit: mm)
243.8
27.6
137.2
200
148.9
4.4 Video card: PDA-5002
4.4.1 Specifications
External dimensions ................. 243.8 (W) × 27.6 (H) × 148.9 (D) mm (9-19/32 (W) × 1-1/16 (H) × 5-7/8 (D) in.)
Weight ....................................... 0.3 kg (0.7 lbs.)
Dimensions of packaging......... 294 (W) × 56 (H) × 234 (D) mm (11-9/16 (W) × 2-3/16 (H) × 9-3/16 (D) in.)
Package weight......................... 1.4 kg (3.1 lbs.)
Input/Output
Video
INPUT3 Input S terminal (MiniDIN 4 pin)
INPUT4 Input BNC jack (Composite video signal ............ 1 Vp-p/75Ω/negative sync)
Output BNC jack ............ 75Ω/with buffer)
INPUT5 Input Digital RGB DVI-D24 pin
Audio
INPUT3 Input Pin jack (× 2)
L/R ..................... 500 mVrms/more than 10 kΩ
INPUT4 Input Pin jack (× 2)
L/R ..................... 500 mVrms/more than 10 kΩ
Accessories
Label for remote control unit ............................... × 1
BNC/Pin conversion adaptor ............................... × 1
Connector indicator label ..................................... × 1
Screw (3 × 8) ....................................................... × 2
Operating instructions ......................................... × 2
Warranty .............................................................. × 1
Video card: PDA-5002
[503CMX/503MXE : 433CMX/433MXE]
To Next Page
