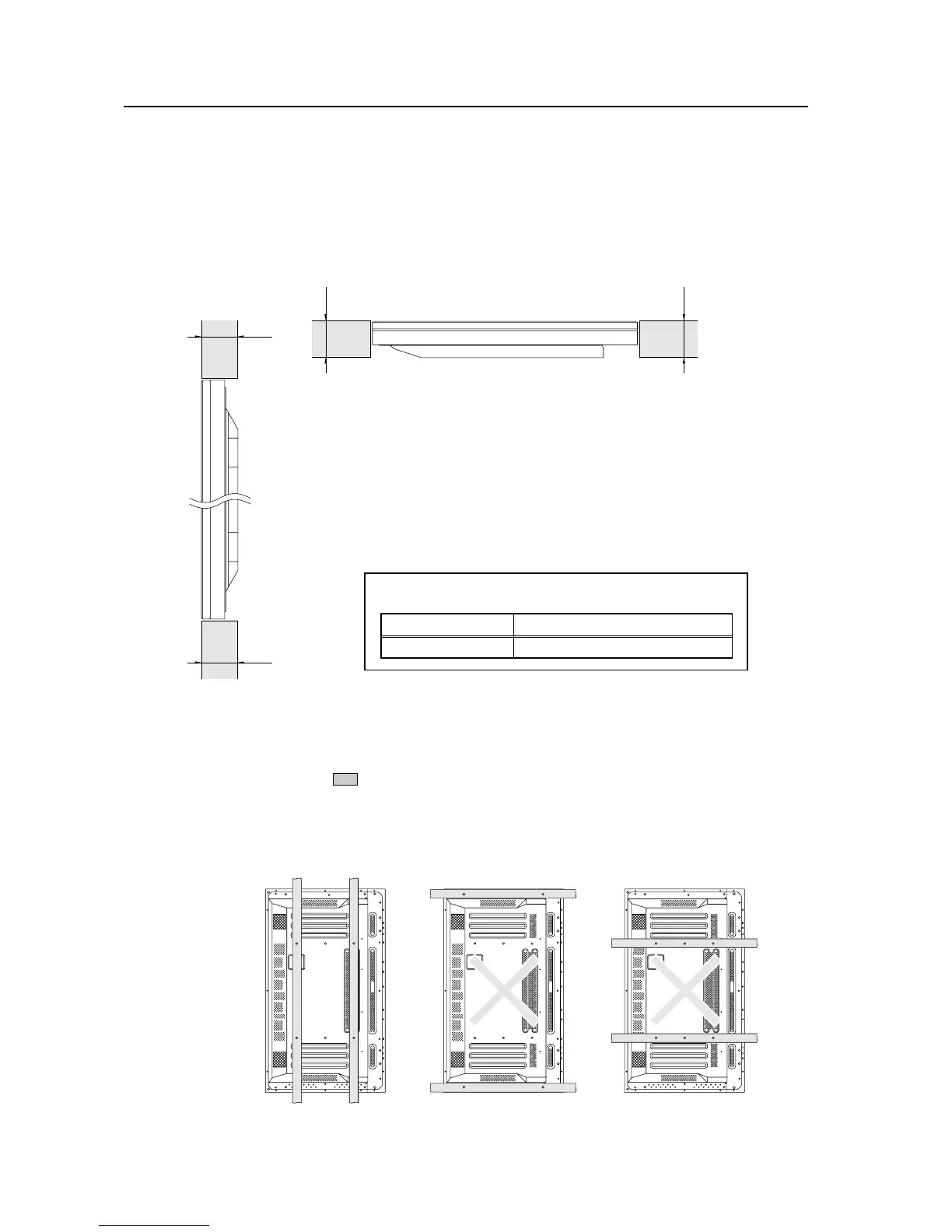

Special Installation (Place product upright and flush into wall (embedding in the wall))
X (Front of the unit)
<Viewed from Above>
<Viewed from the Right Side>
Y (Rear of the unit)
3.6.7 Place product upright and flush into wall (embedding in the wall)
Carefully read the following before trying to embed the unit in a wall, and make sure to observe all the limitations
specified below.
Be sure to mount the unit so that twisting, bending, or other deformation of the unit does not exceed 4 mm.
(1) Embedding in walls with space provided behind the unit (with no obstructions within a distance of 300mm
from the back surface of the unit).
A
A
AA
[433CMX/433MXE]
✩ Operating Temperature Restrictions
Temperature in space X and Y
A: 0 to 370 mm 0 to 40 °C
Methods of Securing: Basic methods of securing are shown below. Avoid blocking or covering areas aside from those
indicated by
. The methods indicated by a large X-mark must not be used.
Before attaching the unit to fittings, double-check that the thickness and height of the fittings,
and the number of fixing bolts is correct.
(Also refer to 3.6.1 “Mounting to fittings”.)
