82
5 Attach the wall side hardware to the wall.
Install the wall side hardware (4 locations) symmetri-
cally on the left and right side (one at each location
from the center of the
). Because the screws
and bolts used to do this are different according to the
wall strength and wall material, purchase suitable
screws and bolts separately.
Warning
Check the strength of the wall and beams before in-
stalling the display.
Wall-mounted tiltable plasma display hardware PDK-5011

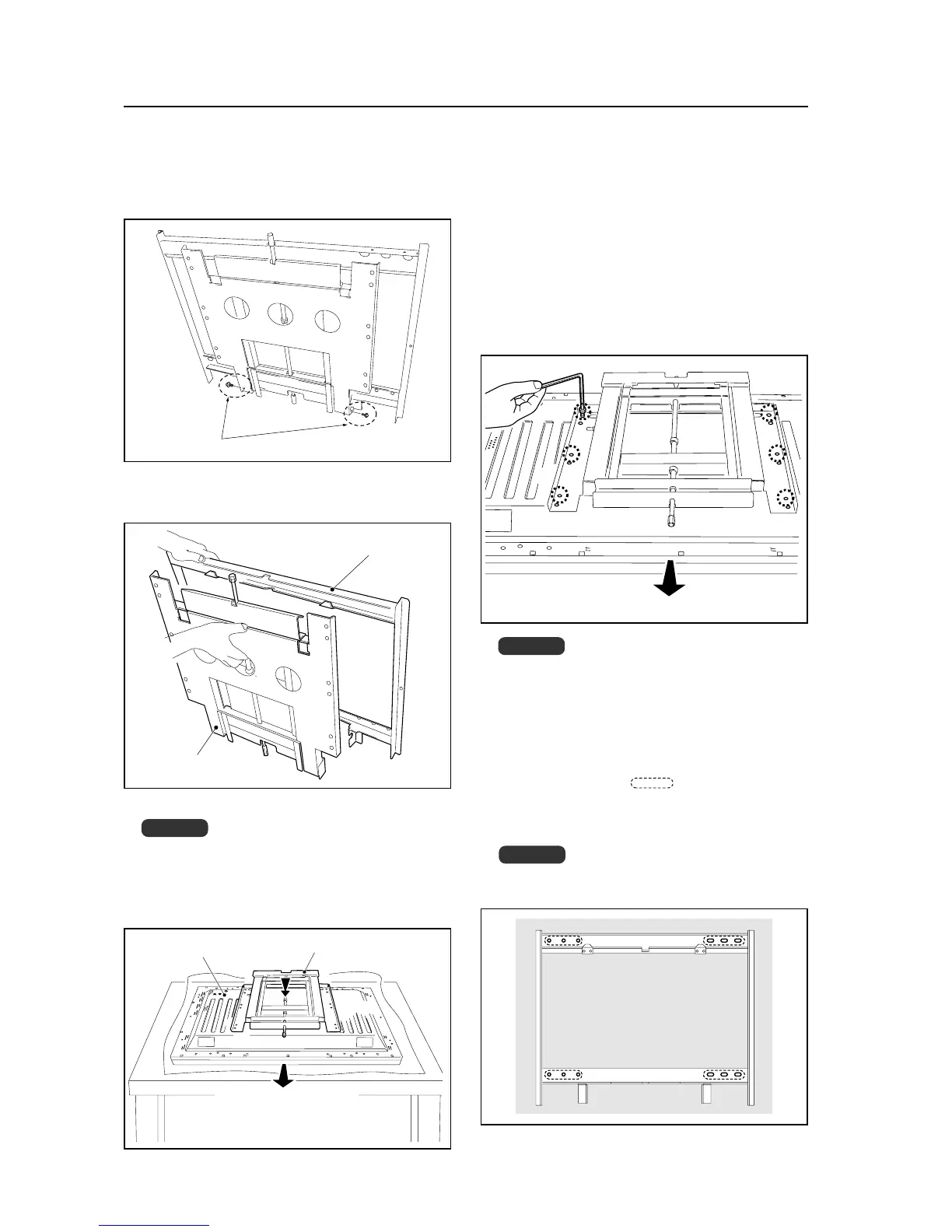

4.6.3 Assembling the mounting hardware and mounting the plasma display
Special screws (M6)
2 Remove the hardware on the wall side and the hard-
ware on the PDP side.
3 Attach the PDP side hardware to the plasma display.
Warning
• Cover the display with a sheet or similar protective
material to protect it from scratches or other dam-
age.
• Be sure to attach it on top of a flat table or similar
surface.
4 Fix the plasma display to the PDP side hardware with
bolt M8 (6 locations).
Usually, use the holes marked with the red triangle
"%".
If the 43-inch model is installed with an inclination of
18° or more, the top part of the screw used to adjust
the angle may be visible from a horizontal position in
front of the screen. In this case, you can hide the top
of the screw by using the holes without a red triangle
mark "%".
Wall side hardware
PDP side hardware
PDP side hardware
Plasma display
Top side of plasma display
1 Remove the special screws (2 locations) from the bot-
tom of the hung on wall unit.
Top side of plasma display
Warning
Warning
Be sure to install the speaker at this stage.
For the installation method, refer to the speaker in-
struction manual.
[503CMX/503MXE : 433CMX/433MXE]
