2) Unpacking procedures
1 Remove the packing bands.
2 Slowly lift and remove the upper carton.
3 Lift and remove the carton cover.
4 Remove the pads.
5 Remove the accessory case and power cord case.
6 Remove the unit. (This should be performed by two persons.)
3) Transportation of the unpacked unit.
If it needs to be moved, the unit should be lifted by two persons.
• Never move the unit by dragging it along the floor.
• Move the unit slowly, taking care to prevent scraping or striking the delicate front protective panel.
• In order to prevent adhesion of dust, remove the protective film only after all work and preparations for the
installation site, including clean-up following unpacking, are complete.
3.4.3 Mounting on the attachment stands (See 4.3
"
Installation of the Attachment Stand
"
for in-
structions on permanent installation.)

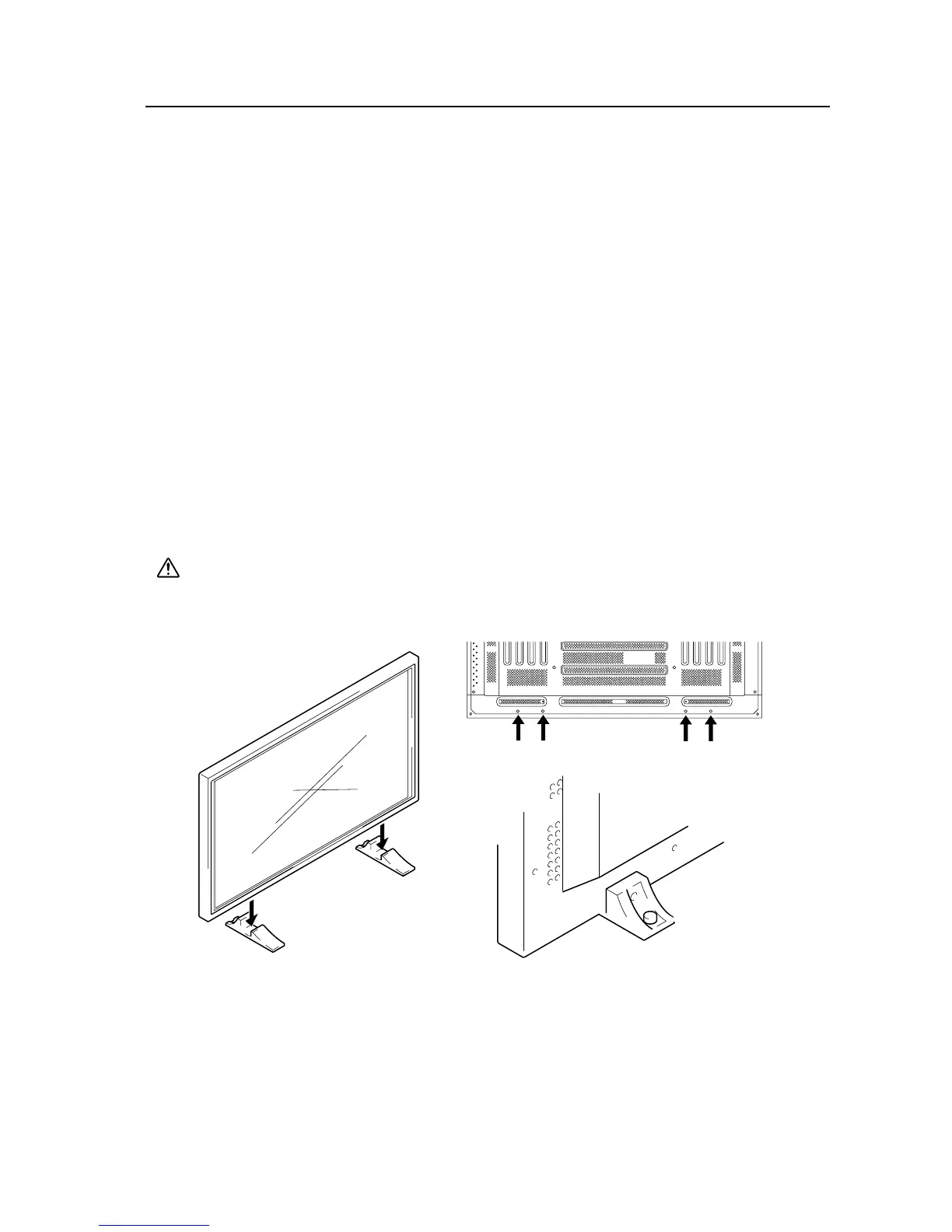

Insert the stand bolts into A and A' or into B and B' on the back of the main unit.
This method should, insofar as possible, be a temporary setup pending proper installation. When installing the
attachment stand, consult 4.3 “Installation of the Attachment Stand”.
Placing the screen on the stands is only a temporary step before proper installation. We cannot guarantee against
damage to the screen caused by it toppling over under an external force etc. while it is placed on the stands.
Installation Procedures
[503CMX/503MXE : 433CMX/433MXE]
B A
B’A’
To Next Page
