46

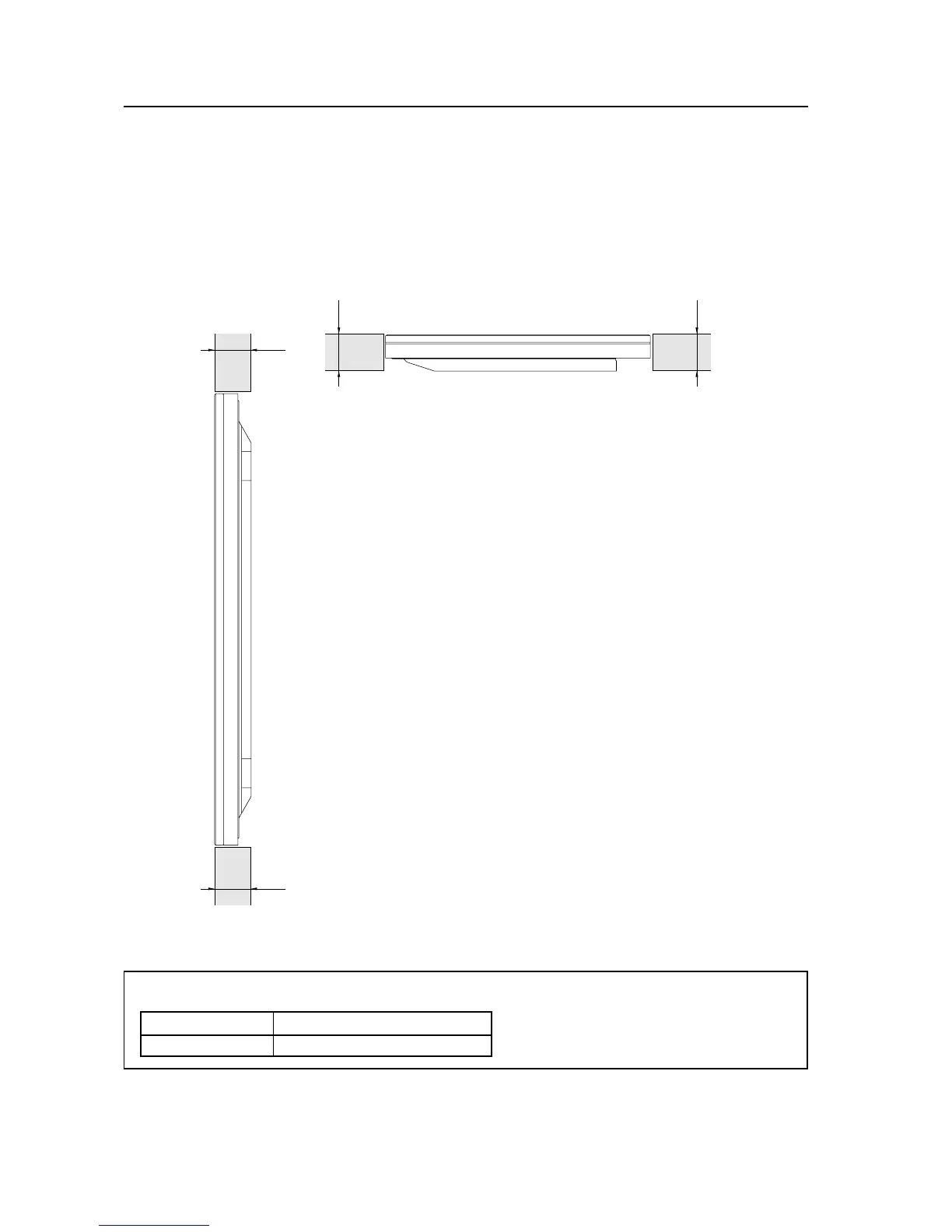

Special Installation (Place product upright and flush into wall (embedding in the wall))
X (Front of the unit)
<Viewed from Above>
<Viewed from the Right Side>
✩ Operating Temperature Restrictions
Temperature in space X and Y
A: 0 to 370 mm 0 to 40 °C
Y (Rear of the unit)
3.5.7 Place product upright and flush into wall (embedding in the wall)
Carefully read the following before trying to embed the unit in a wall, and make sure to observe all the limitations
specified below.
Be sure to mount the unit so that twisting, bending, or other deformation of the unit does not exceed 4 mm.
(1) Embedding in walls with space provided behind the unit (with no obstructions within a distance of 300mm
from the back surface of the unit).
A
A
AA
[503CMX/503MXE]
To Next Page
