Wall-mounted tiltable plasma display hardware PDK-5011
Opening
Closing
Hexagon wrench
Measuring the opening distance X enables
approximate angle values to be determined.
X
When it is in this state, do not turn
the adjustment screw any further in
the closing direction.
B Criterion when its angle is 25°
When it is in this state, do not turn the
adjustment screw any further in the
opening direction.
Resin plate
A Criterion for the vertical location
Gap
disappears
Notch
End face of the plate
Matched in both
directions
Wall side hardware
Resin plate
Back of the
plasma display
A
B

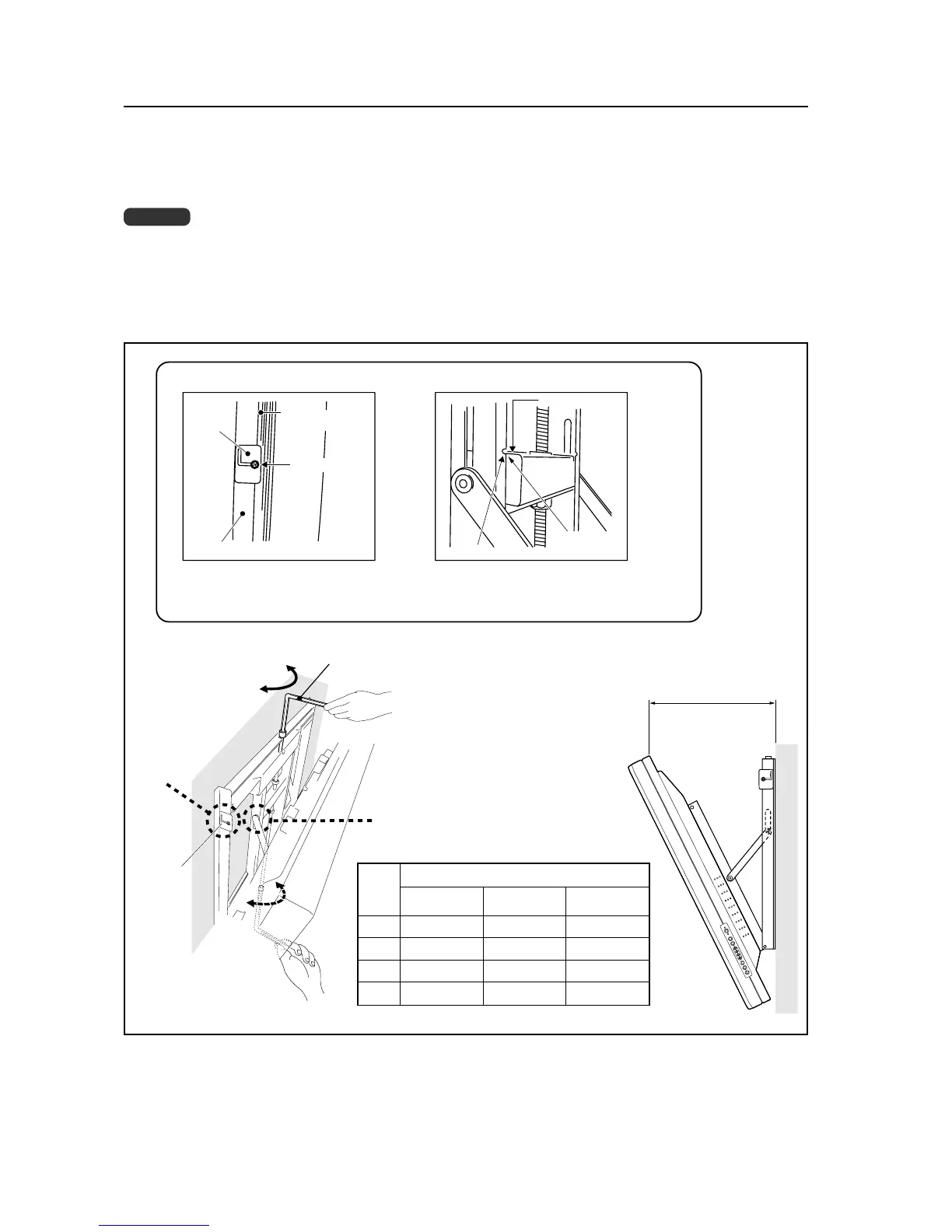

4.6.4 Angle setup
This installation hardware allows the display to be directed downwards freely at any angle from the vertical to 25°.
This adjustment must always be done by 2 people.
Adjust the angle by rotating the screws at the center top and center bottom of the wall side hardware to the left or right.
Warning
• If the angle is increased while you are adjusting the angle using the screw at the center of the bottom, it is difficult to
turn the screw. When this happens, adjust it at the center of the upper.
• Turn the screws very carefully to avoid damaging the wall.
• When a screw becomes tight at either end of the adjustment range, do not turn the adjustment screw any further,
because if you do, you will apply excessive force, deforming the screw.
[503CMX/503MXE : 433CMX/433MXE]
X
Angle
5° 133mm 130mm 133mm
10° 188mm 181mm 187mm
15° 241mm 231mm 240mm
20° 291mm 279mm 291mm
Tilt Angle Criteria
Normal holes of
50-inch model
Normal holes of
43-inch model
Topside holes of
43-inch model
To Next Page
