44
714 DD
A
10
48 93.4
72
72
1218
C
10
25
B

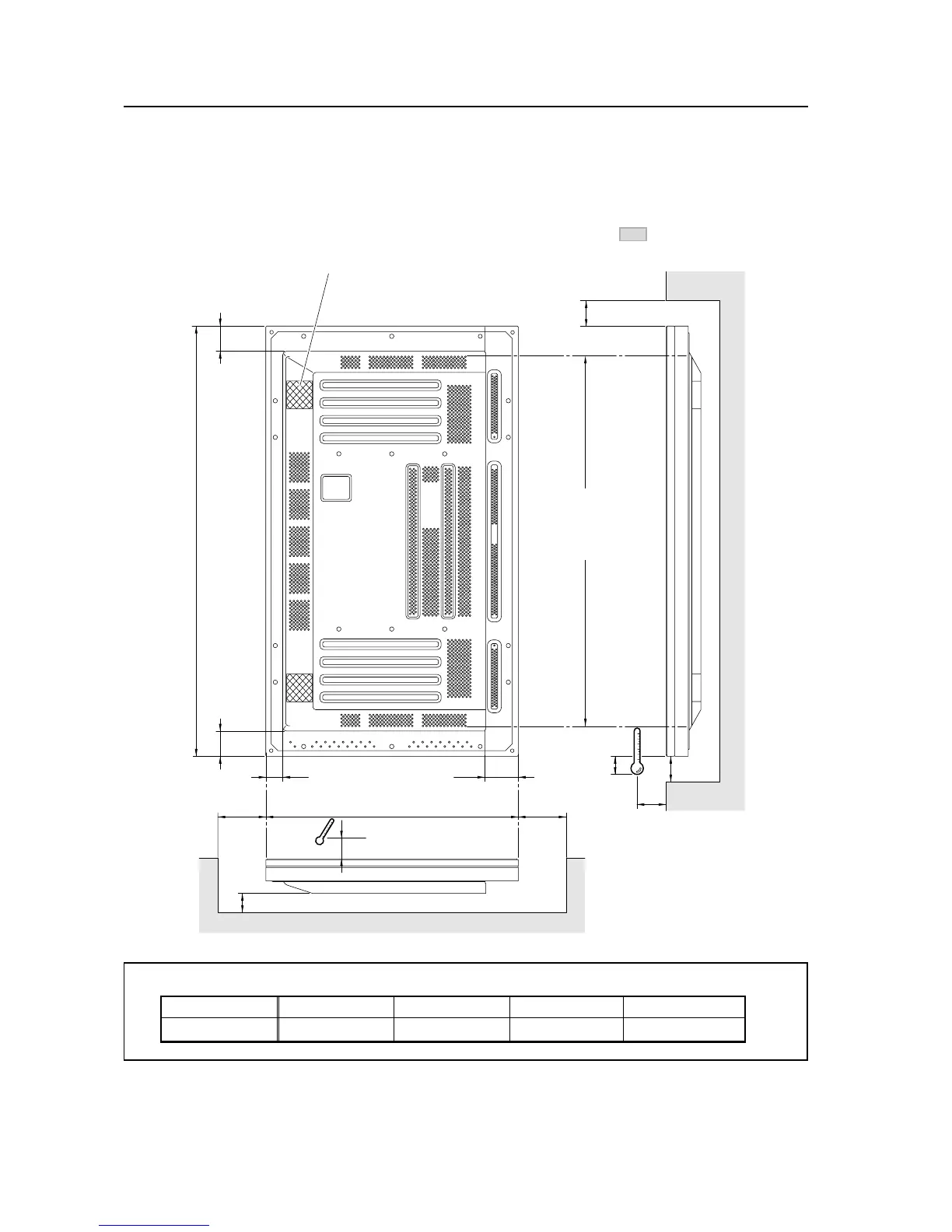

Special Installation (Hanging on the wall (lengthwise))
3.5.6 Hanging on the wall (lengthwise)
Carefully read the following before attempting to mount the unit on the wall, and observe the various limitations
specified below.
Be sure to mount the unit so that twisting, bending, or any other deformation does not exceed 4 mm.
Shaded areas indicate attachment
points for mounting hardware.
✩ Operating Temperature Restrictions
Distance from wall (A) BC DAmbient temperature
50 mm or more 100 mm or more 50 mm or more 50 mm or more 0 to 40 °C
Avoid blocking or
covering this area
on the upper and
lower sides.
Attach this fan on the left side
[503CMX/503MXE]
