3.4 Installation Procedures
3.4.1 Transportation precautions
1 Any transportation of the unopened unit in its packaging should be done by two or more persons. To avoid injury
or damage, do not lift the package by its packing bands.
2 When transporting or storing the unit, always position it vertically - never horizontally. Horizontal transportation or
storage invalidates the product warranty
3 In transportation or storage of products in original packing, never stack more than three units high. This warning
is also indicated on the upper face of the carton.
4 For transportation or storage, observe the warnings and instructions on the upper face of the carton.
5 Plasma display is mode off grass. Please take precations to prevent it from being dameged.
3.4.2 Unpacking
The original packing material can be re-used to sofely ship the Plasma Display. When doing so, it is important to use the
material in the same way as when they were originally shipped. Failure to correctly use the material can damage the
display.

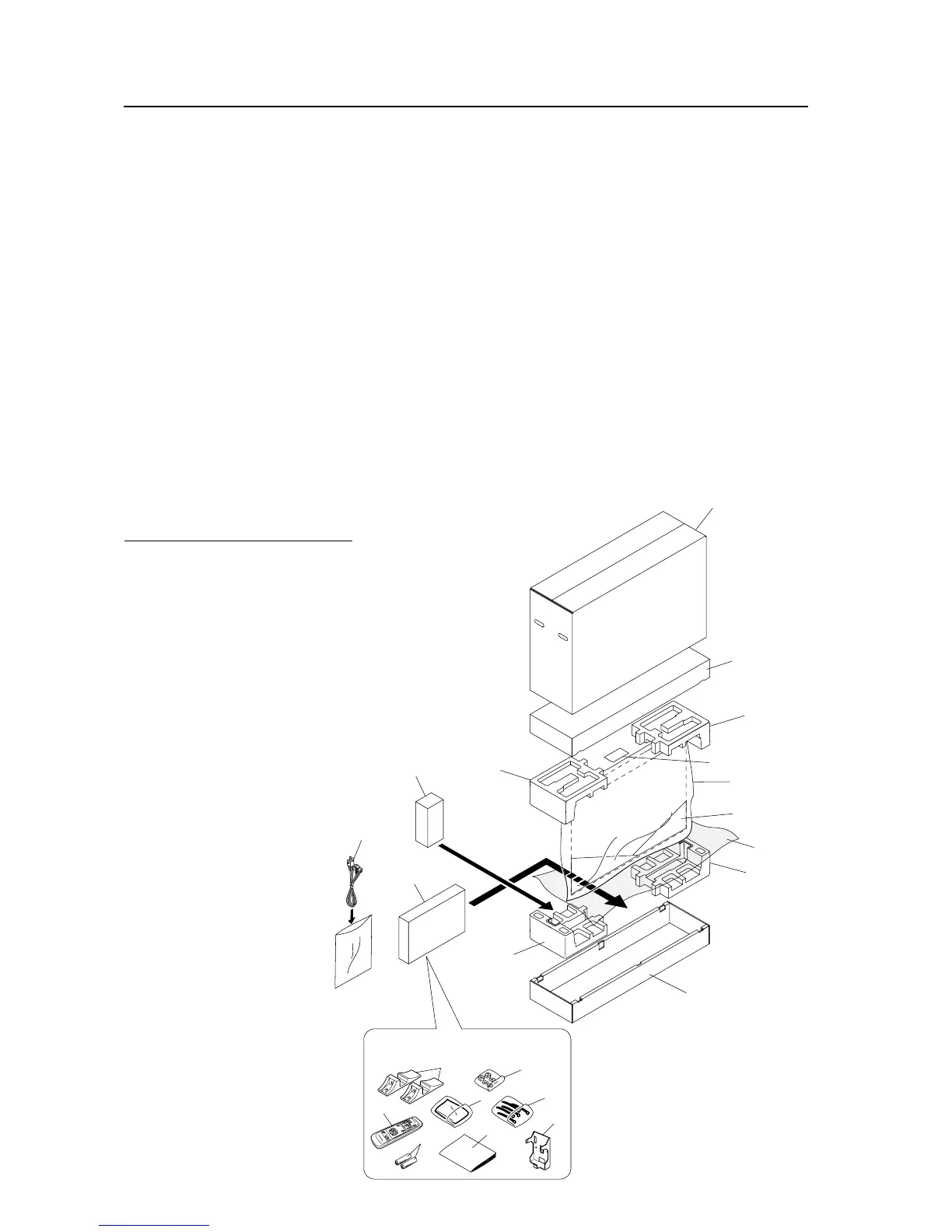

1) Packing specifications; PDP-503CMX/PDP-503MXE: 1341 (W) × 846 (H) × 424 (D), 51 kg
PDP-433CMX/PDP-433MXE: 1193 (W) × 748 (H) × 424 (D), 41.5 kg
1 Upper face of the carton
2 Carton cover
3 Lower face of the carton
4 Pad
5 Pad
6 Pad
7 Pad
8 Miller mat
9 Power cord
10 Remote control unit
11 2 manganese AA batteries, R6P
12 Operating instructions
13 Warranty card
14 Display stand
15 Wiping cloth
16 Binder Assembly
17 Bolt, Washer
18 Remote control unit holder
19 Power cord case
20 Accessory case
21 Front sheet
(PDP-503CMX/
PDP-503MXE only)
22 Polyethylene sheet
17
16
18
15
12
11
14
10
3
7
6
21
8
13
4
2
1
5
19
20
9
22
(Inside the
mirror mat)
(These accessories are inside the
accessory case.)
[503CMX/503MXE : 433CMX/433MXE]
