Installation Conditions
3.3 Installation Conditions (PDP-433CMX/PDP-433MXE)
3.3.1 Heat dissipation

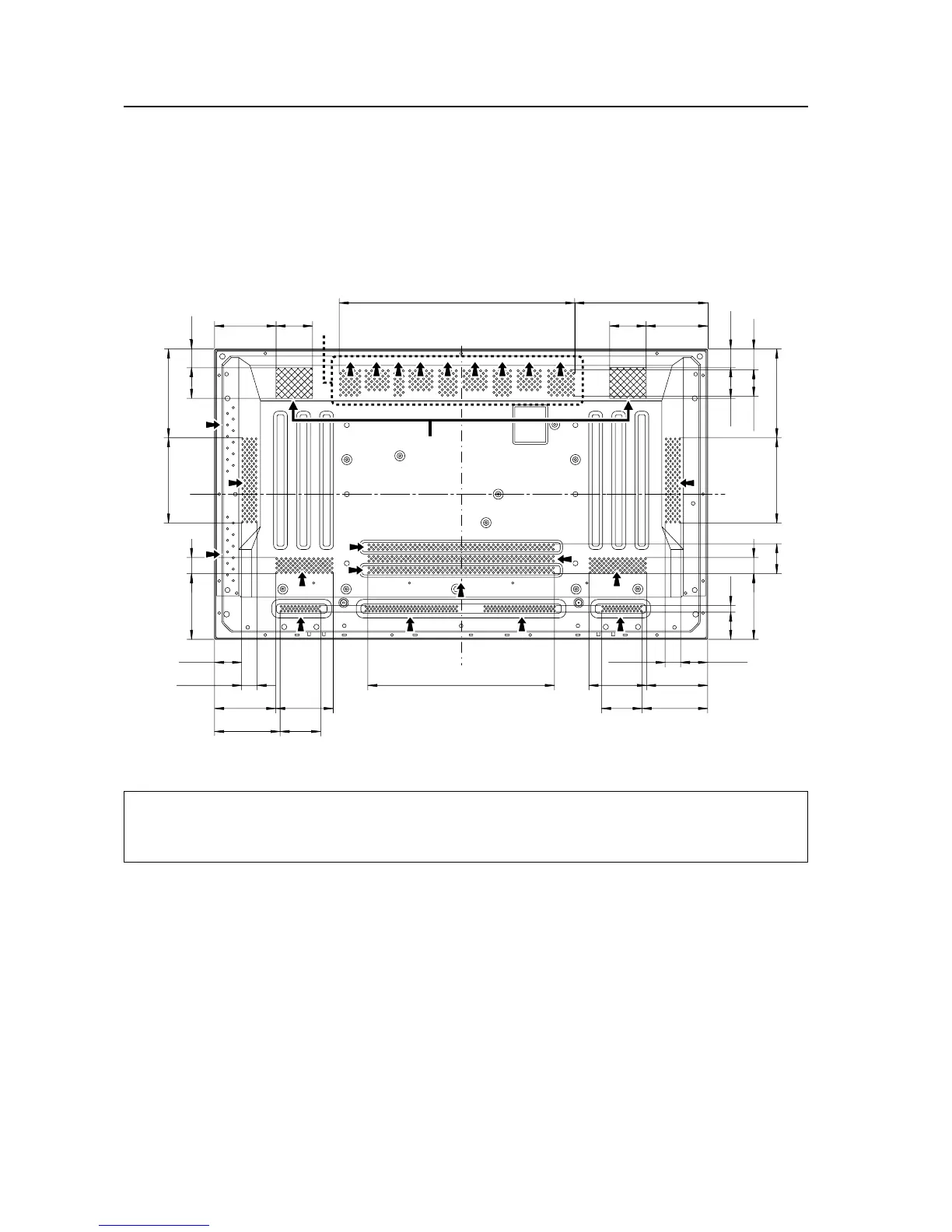

This unit has openings for effective ventilation at locations marked by arrows in the illustration below. To allow proper
dissipation of heat from the unit, do not cover any of these openings.
(Unit : mm)
288.5
40.5
40.5
185 192.5
33.5
58.5
65
59 14.5
405
35142.5
35142.5
125132.5
88142
14288
125
33.5 58.5
132.5
185 192.5
66
133.5
79
4557.5
511
66
79133.5
Fan (2 in number)
A
Two fans and part A in a normal installation case draw off hot air from the unit. All openings not assisted by fans
serve as air inlets. If the unit is hung from or embedded into a wall, special operating temperature limits and other
limitations may apply. Refer to “3.6 Special Installation”.
[433CMX/433MXE]
