Menu Mode
5.3 Menu Mode
5.3.1 About menu mode
1) How to enter/exit menu mode
• To enter menu mode and display the menu screen (refer to section 5.3.2, “Example of menu mode operation”),
press the MENU button on the remote, or on the operating panel of the main unit while in normal operating mode.
To return to normal operating mode, press the MENU button again.
2) When you carry out adjustments using menu mode:
• Each of the adjustment values for PICTURE and SCREEN will be stored separately for each input function and
each input signal. For more details please refer to “5.4.4 PICTURE and WHITE BALANCE adjustment values
memory area table” and “5.4.5 SCREEN adjustment values area table”.
3) Notes
(1) Menu mode is canceled automatically and normal operating mode is restored in the following cases:
• When the input signal has been switched
• When switching over to another input signal frequency
• When no control is operated for a period of approximately eight minutes
• When the KEY LOCK/UNLOCK button on the operating panel of the main unit is pressed
(2) For adjustments in the menu mode, refer to the operating manual.
(3) When making adjustments, we recommend using video signals that you actually intend to use.
(4) The items that can be adjusted and set vary for each input signal. Only the OPTION can be set when a video
signal is not being input.
5.3.2 Concerning the display of the OSD of each item
The sample OSD displays presented in this manual are all examples of displays by the PDP-503CMX/PDP-503MXE.
The OSD display of the PDP-433CMX/PDP-433MXE is shown below.
PDP-503CMX/PDP-503MXE: During OSD display, there are parts on both sides of the screen where OSD is not displayed.
PDP-433CMX/PDP-433MXE: The OSD display fills the screen in the horizontal direction.
The content of the OSD display is identical for the PDP-503CMX/PDP-503MXE and the PDP-433CMX/PDP-433MXE.
MAIN MENU INPUT1
SELECT ENTER EXIT
SET MENU
PICTURE SCREEN SET UP OPTION
:
0
:
6
+
+
+
0
:
60
:
60
:
0
:
0
CONT RA ST
:
0
BR
RLEVEL
IGHT.
.
GLEVEL.
BLEVEL.
H E NHANCE.
V ENHANCE.
RSETE
MAIN MENU INPUT1
SELECT ENTER EXIT
SET MENU
PICTURE SCREEN SET UP OPTION
:
0
:
6
+
+
+
0
:
60
:
60
:
0
:
0
CONT RA ST
:
0
BR
RLEVEL
IGHT.
.
GLEVEL.
BLEVEL.
H E NHANCE.
V ENHANCE.
RSETE

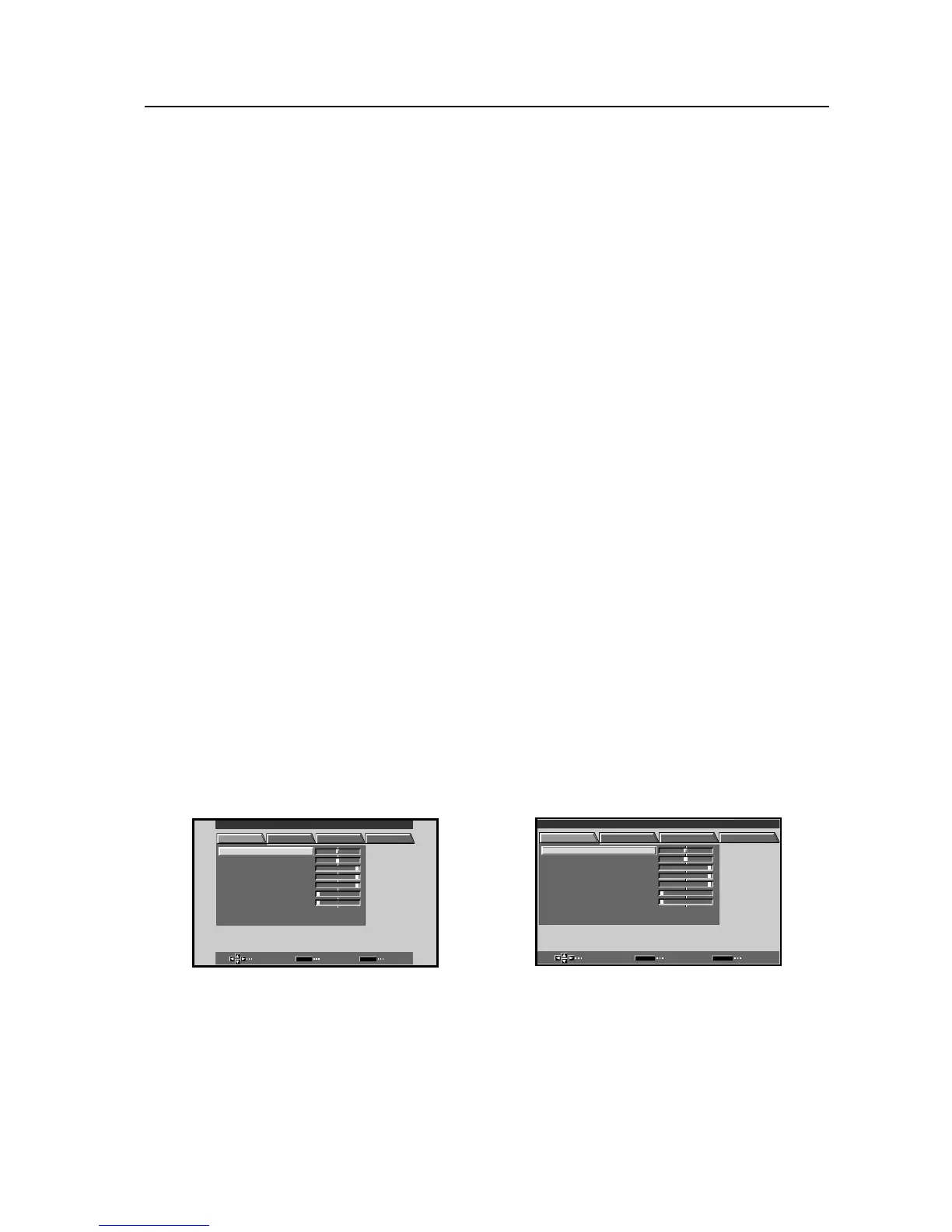

Sample OSD display of the PDP-503CMX/
PDP-503MXE
Sample OSD display of the PDP-433CMX/
PDP-433MXE
