186
IN OUT
CONTROL
COMBINATION
IN OUT
RS-232C
IN OUT
CONTROL
COMBINATION
IN OUT
RS-232C
IN OUT
CONTROL
COMBINATION
IN OUT
RS-232C
Combination Connection
5.6 Combination Connection
This is useful for controlling/adjusting a number of sets from a single PC.
By carrying out combination connection and then assigning IDs to each of the sets, it becomes possible to control/
adjust a number of sets either all at once or individually.

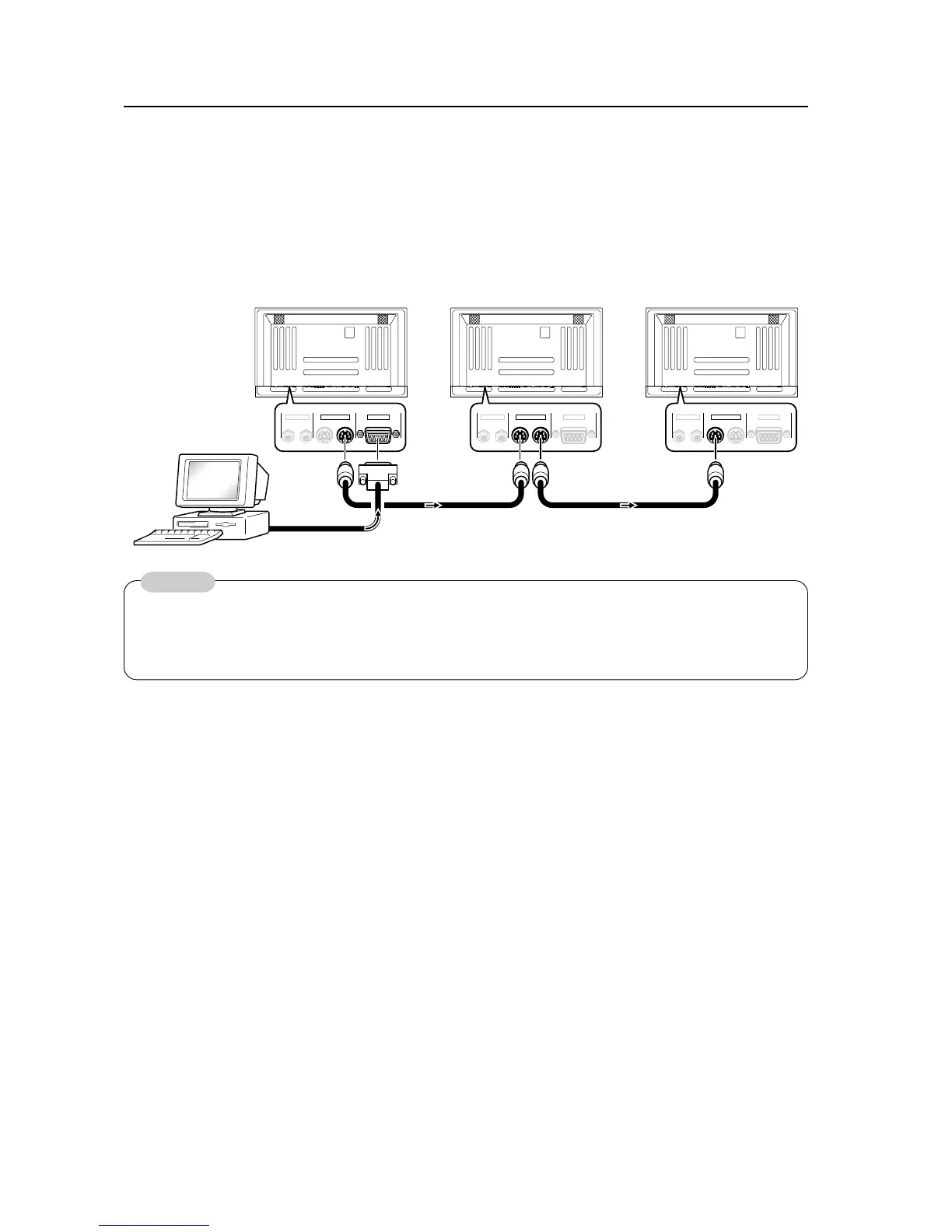

5.6.1 Connections
Carry out connections as shown below. You can then control/adjust the units from the PC.
You may use either combination input or control port RS-232C connector, but not both at once. Using both
simultaneously will result in malfunction or system breakdown.
Don't connect combination inputs to other combination inputs, or combination outputs to other combination outputs.
It may cause a trouble.
General purpose Mini Din 6-pin (straight) cables may be used as combination cables.
(NOTE) In order to output RS-232C signals from the combination OUT terminal, it is necessary to assign an ID.
For more details see “5.5.3 ID Assignment”.
1st unit
2nd unit
3rd unit
Combination cable
Combination cable
PC
OUT
IN INOUT
NOTE
To Next Page
