Wall-mounted type tiltable fixed plasma display hardware PDK-5013

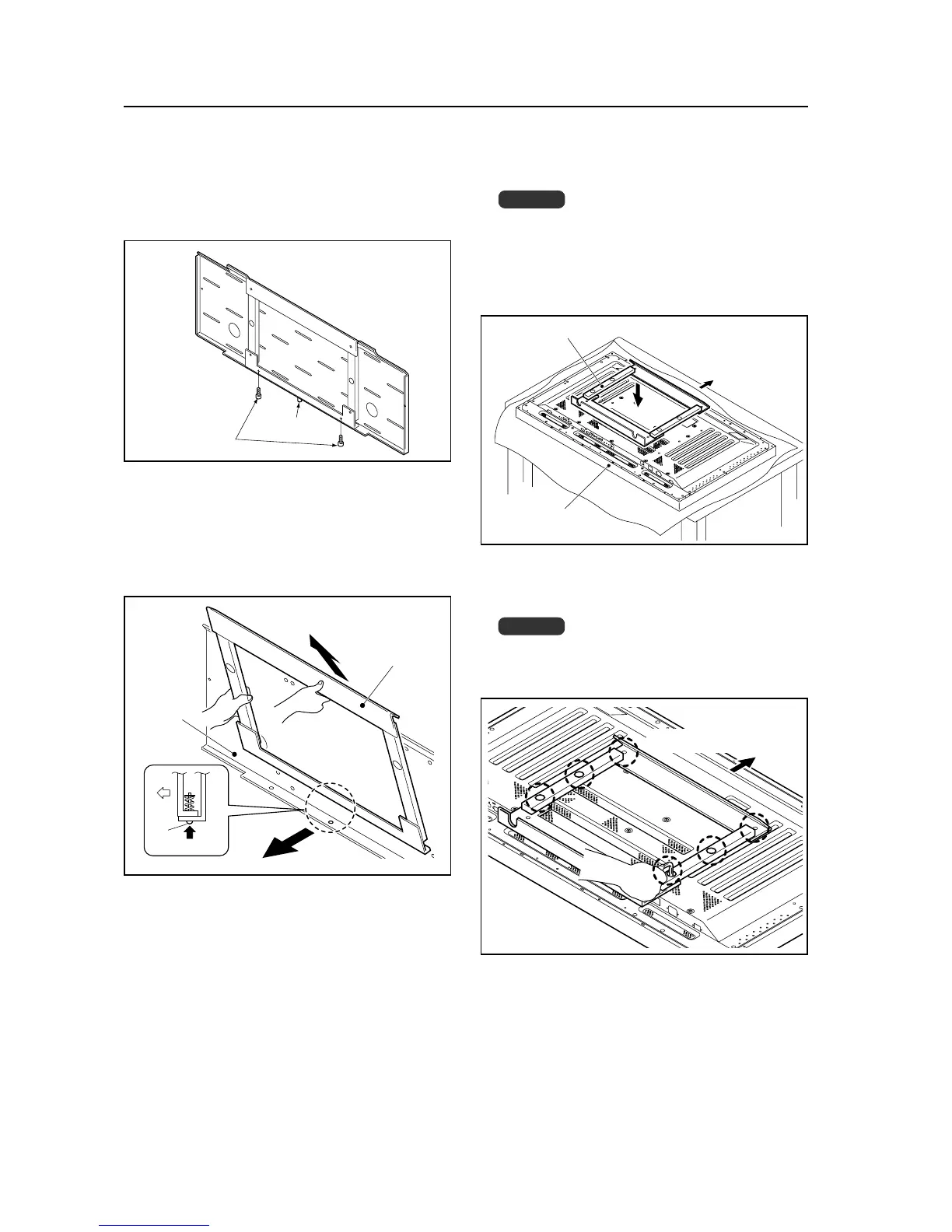

4.7.3 Assembling the mounting hardware and mounting the display
Screws M6
2 Remove the hardware on the wall side and the
hardware on the PDP side.
1. Push the pin on the bottom side and pull out the
bottom side of the PDP side hardware.
2. Lift up and remove the PDP side hardware.
3 Attach the PDP side hardware to the plasma display.
Warning
• Cover the display with a sheet or similar protective
material to protect it from scratches or other
damage.
• Be sure to attach it on top of a flat table or similar
surface.
4 Fix the plasma display to the PDP side hardware with
bolt M8 (6 locations).
PDP side hardware
Plasma display
Top side of
plasma display
Top side of plasma display
Pin
1 Remove the screws (2 locations) from the bottom of
the hung on wall unit with a Phillips head (+) screw
driver.
2
1
Wall side
hardware
Pin
Push
PDP side
hardware
[503CMX/503MXE : 433CMX/433MXE]
Warning
Be sure to install the speaker at this stage.
For the installation method, refer to the speaker in-
struction manual.
