4.5.2 Installation coordinates for screws used to stabilize the stand to the floor
* When stabilizing the stand to the floor, use M6 with a length above 20 mm.
(Unit: mm)
Tabletop Stand: PDK-TS01

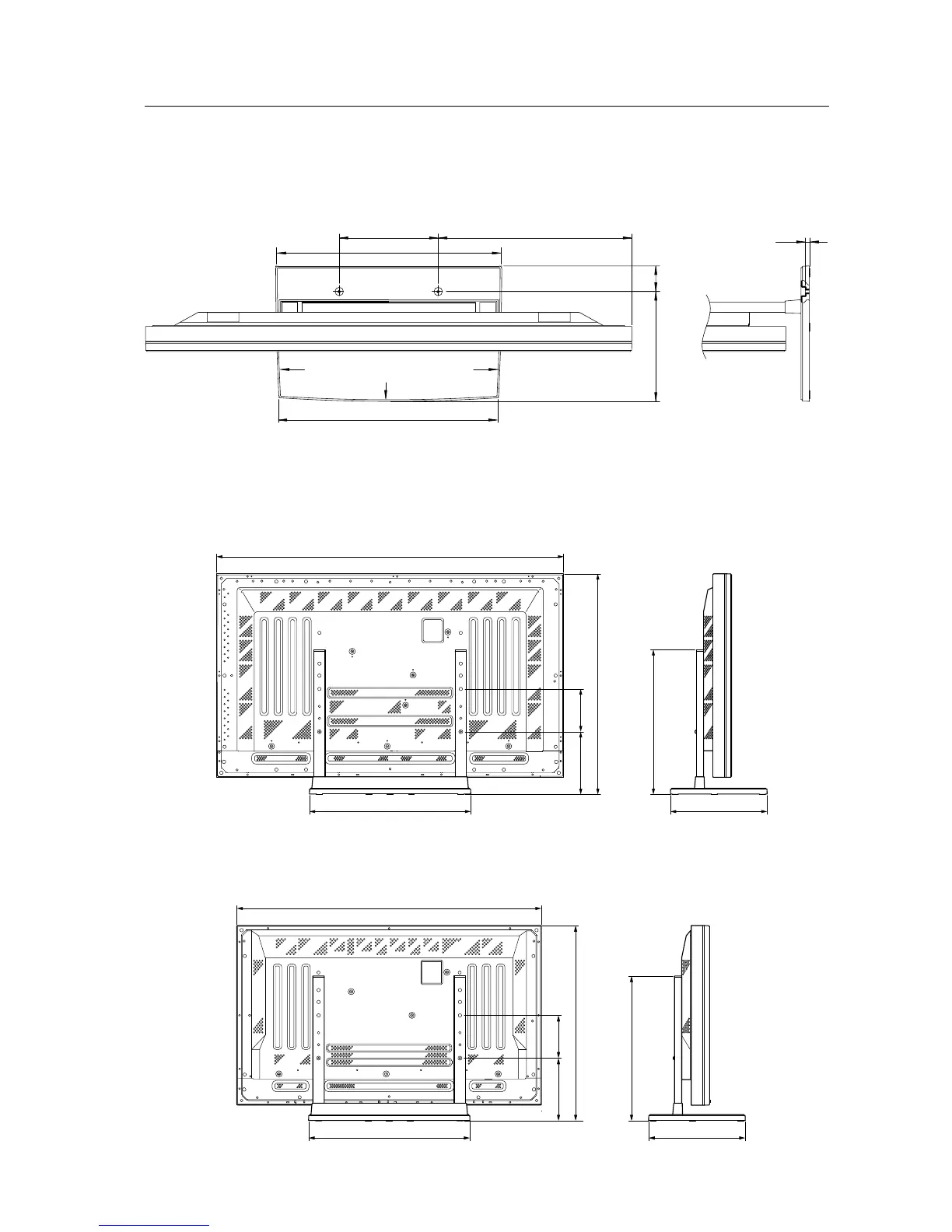

4.5.3 External Dimensions
7 When using plasma display monitor PDP-503CMX or PDP-503MXE
(Unit: mm)
[503CMX/503MXE : 433CMX/433MXE]
566
11.5
R6400
R4200
R6400
550
774
150
220
339
508
566
1218
7 When using plasma display monitor PDP-433CMX or PDP-433MXE
(Unit: mm)
1070
566
220
150
685
508
339
To Next Page
