22
Installation Conditions
3.2 Installation Conditions (PDP-503CMX/PDP-503MXE)
3.2.1 Heat dissipation

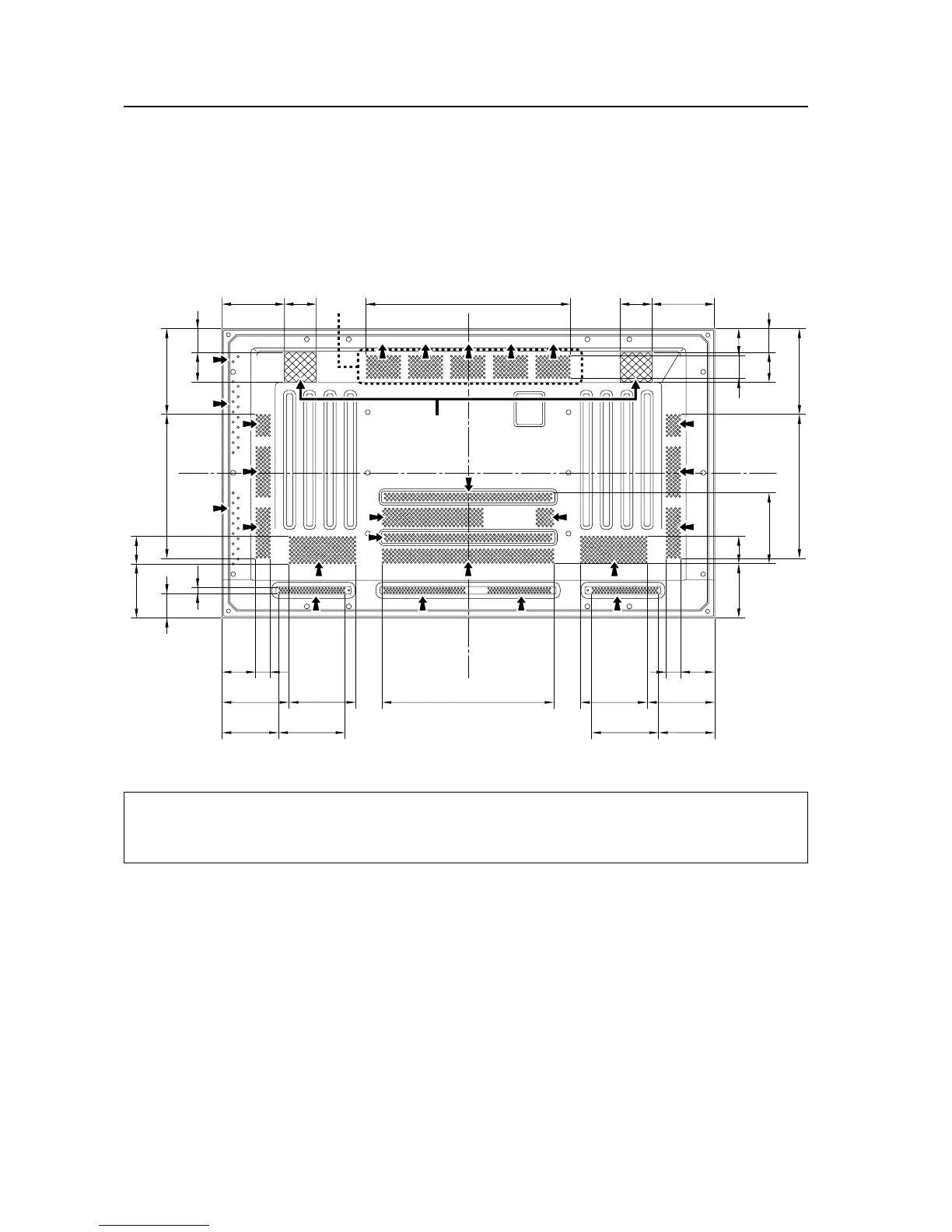

This unit has openings for effective ventilation at locations marked by arrows in the illustration below. To allow proper
dissipation of heat from the unit, do not cover any of these openings.
(Unit : mm)
500 80 154154 80
5972
14.5
59 357.5 211
134.5 65
82 40 8240
166.5
138 176 164 140
165 425 165 166.5
134.5 65 58 65
172.5 72 59
357.5 211
A
Fan (2 in number)
Two fans and part A in a normal installation case draw off hot air from the unit. All openings not assisted by fans
serve as air inlets. If the unit is hung from or embedded into a wall, special operating temperature limits and other
limitations may apply. Refer to “3.5 Special Installation”.
[503CMX/503MXE]
To Next Page
